Description

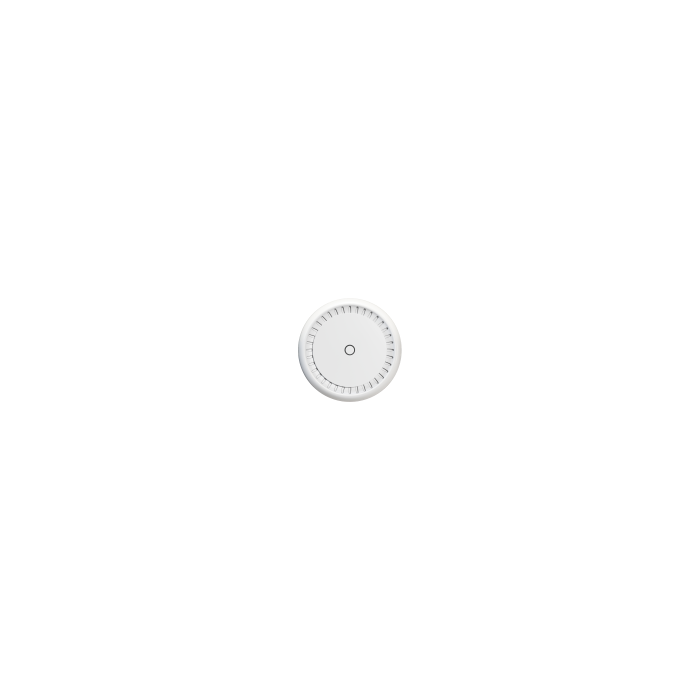

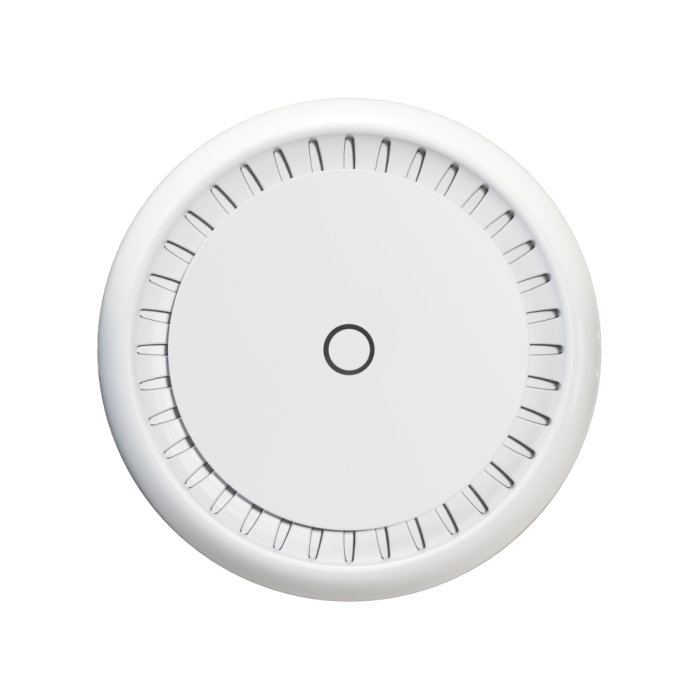

The Mikrotik cAP XL ac access point in white operates on the 2.4 and 5 GHz bands, with a maximum transfer speed of 867 Mbit/s on the 5 GHz band and 300 Mbit/s on the 2.4 GHz band. Its IEEE 802.3af and 802.3at network standard allows it to be powered via Power over Ethernet, without the need for an additional power source, and it features two RJ-45 Ethernet ports at 10/100/1000 Mbit/s. It includes hardware acceleration for IPsec to enhance network security, and its DC input voltage accepts a range of 17 to 57 V. With a mean time between failures of 100,000 hours, this device is designed for prolonged operation in wall or ceiling installations, with a transmission power of 26 dBm.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 867 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Wi-Fi data rate (max): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2 - 5.5 GHz
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Cabling technology: 10/100/1000Base-T(X)
- Bluetooth: No
- Transmitting power (CE): 26 dBm
- Mean time between failures (MTBF): 100000 h
Security
- Security features: IPsec hardware acceleration
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE
- AC input voltage: 17 - 57 V
- DC voltage range: 24 V
- Input current: 1.2 A
- Power consumption (typical): 11 W
- Power consumption (max): 24 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- WPS push button: Yes
Antenna
- Antenna type: Internal
Performance
- Chipset: IPQ-4018
- Built-in processor: Yes
- Processor model: IPQ4018
- Processor frequency: 716 MHz
- Flash memory: 128 MB
- Internal memory: 16 MB
- Operating system installed: RouterOS
- Security update term: IPsec hardware acceleration
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
- Width: 191 mm
- Height: 42 mm
Other features
- Wireless technology: Wi-Fi 5
Logistics data
- Warranty period: 5 year(s)
