Description

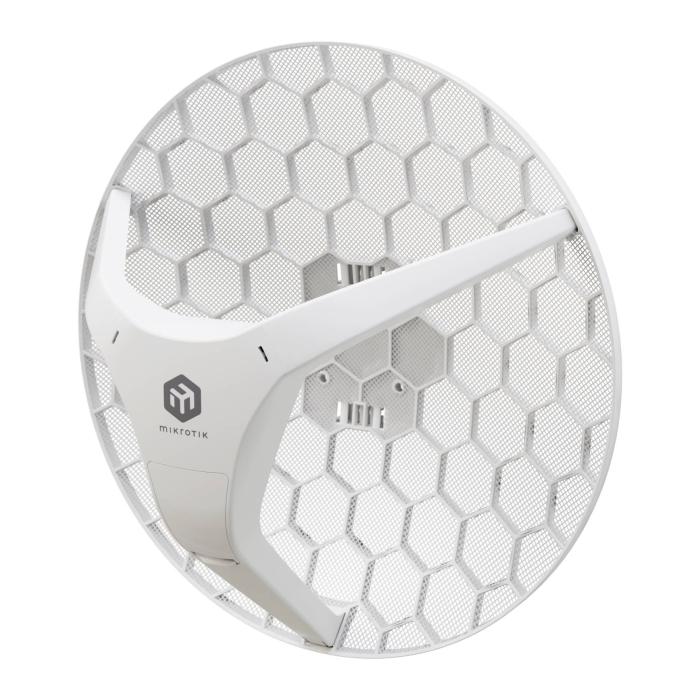

The Mikrotik LHG 5 ax, in its white finish, is an access point with a built-in 24.5 dBi antenna designed for pole mounting. It operates exclusively on the 5 GHz band with a transmission power of 24 dBmW and achieves a maximum transfer rate of 1200 Mbit/s, supporting IEEE 802.11a, 802.11ac, 802.11ax, and 802.11n standards. Its Gigabit Ethernet port supports speeds of 10, 100, and 1000 Mbit/s, and it is powered via Passive PoE with a maximum consumption of 5 W, also including a DC input jack. With an integrated processor, 256 MB of internal memory, and 128 MB of flash, receiver sensitivity varies between -96 and -67 dBm depending on the rate, offering tuned performance for long-distance links.
Specifications
Features
- 2.4 GHz: No
- 5 GHz: Yes
- Maximum data transfer rate: 1200 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n
- Transmitting power: 24 dBmW
- Receiver sensitivity: -96, -80, -75, -70, -67
Ports & interfaces

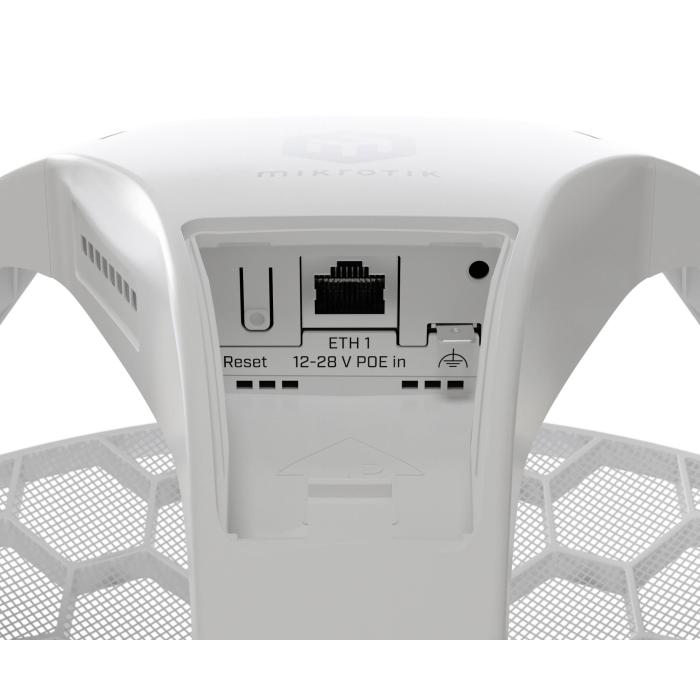

- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Passive PoE
- Power consumption (max): 5 W
Design
- Placement: Pole
- Product colour: White
Antenna
- Antenna type: Internal
- Antenna gain level (max): 24.5 dBi
Performance
- Built-in processor: Yes
- Flash memory: 128 MB
- Internal memory: 256 MB
Certificates
- Certification: CE, FCC, IC, EAC, ROHS
Packaging content
- Quantity per pack: 1 pc(s)

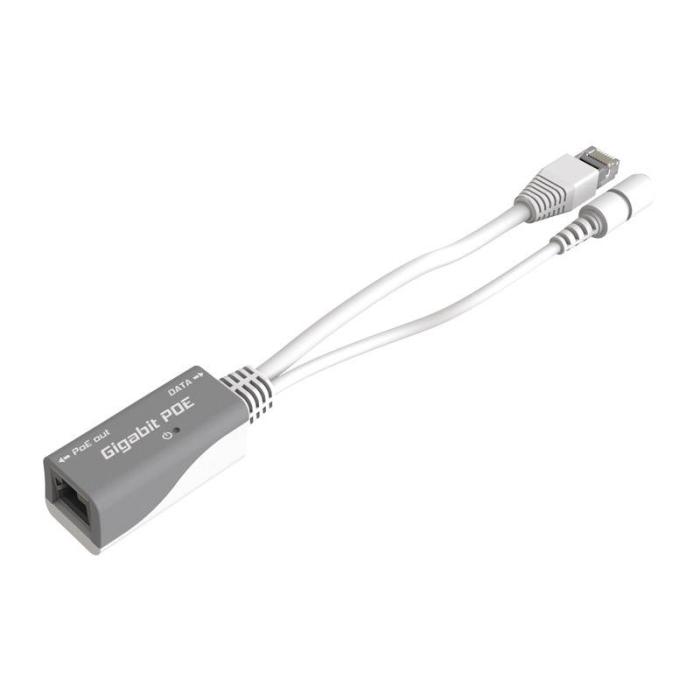

- PoE adapter included: Yes

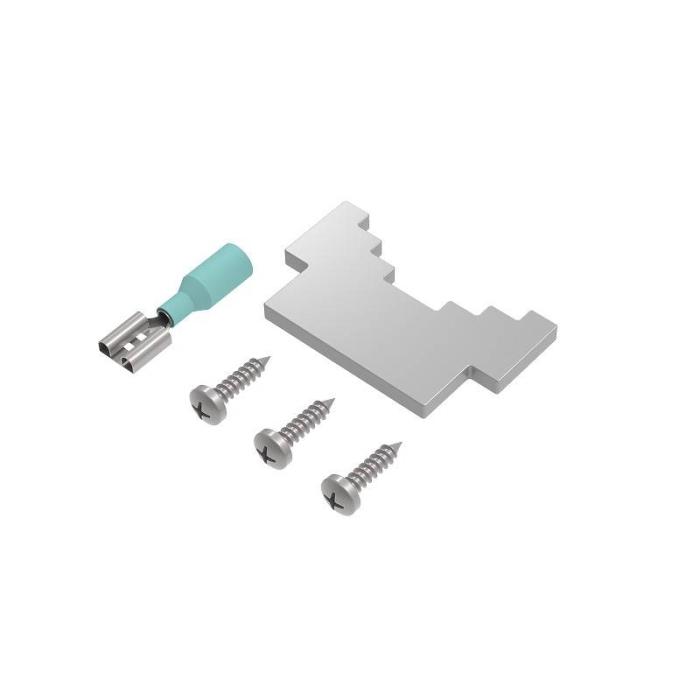

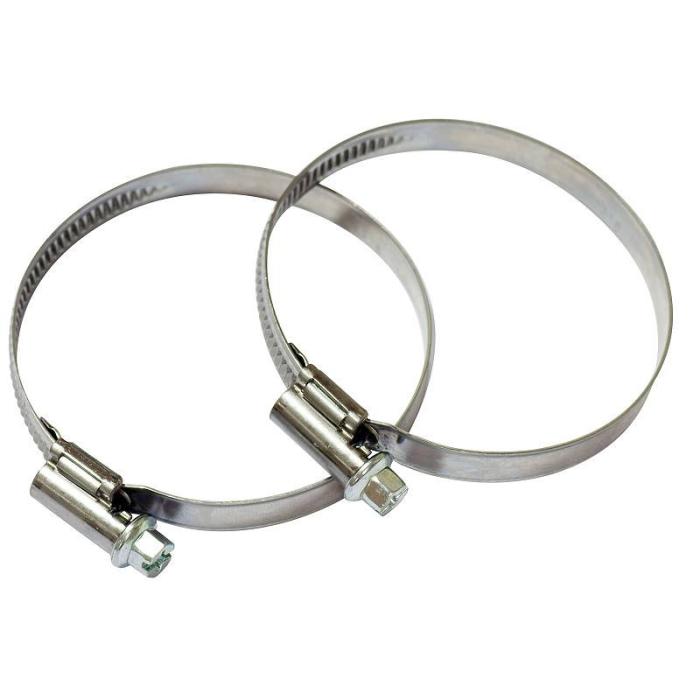

- Mounting kit: Yes
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
