Description

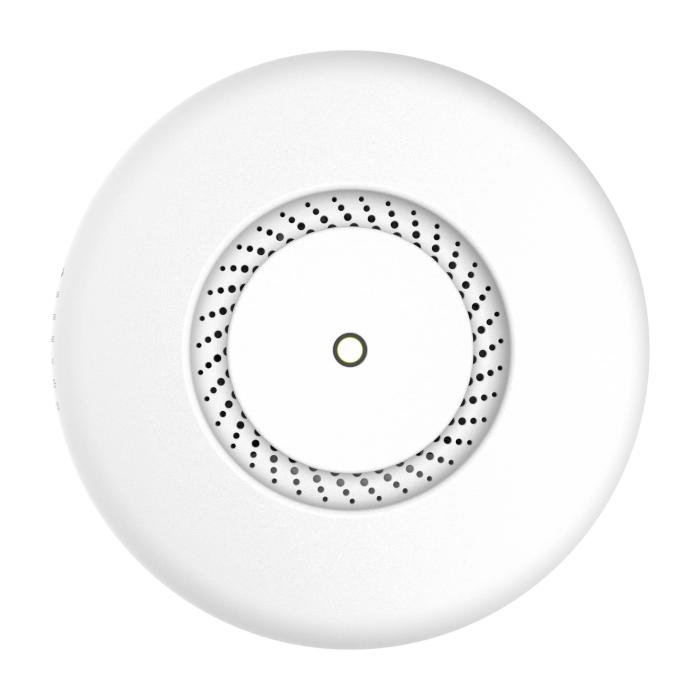

Mikrotik wireless access point in white, model cAP ac, offering a maximum transfer rate of 867 Mbit/s and powered via Power over Ethernet (PoE). This device supports the 2.4 GHz and 5 GHz bands, with speeds of up to 300 Mbit/s and 867 Mbit/s respectively, and complies with IEEE 802.11a/b/g/n/ac standards. It features two RJ-45 Ethernet LAN ports with speeds of 10, 100, and 1000 Mbit/s, and supports both active and passive PoE with an output voltage of 57 V and a maximum power consumption of 13 W. Designed for ceiling or wall mounting, it includes LED indicators and offers a frequency range from 2.412 to 2.484 GHz and 5.15 to 5.875 GHz, making it a versatile option for extending indoor wireless network coverage.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 867 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.412 - 2.484, 5.15 - 5.875 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
- Receiver sensitivity: 2.4GHz: 1MBit/s: -100 @ 26dBm Tx 11MBit/s: -94 @ 26dBm Tx 6MBit/s: -96 @ 26dBm Tx 54MBit/s: -78 @ 23dBm Tx MCS0: -96 @ 26dBm Tx
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
Power
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: Active PoE, Passive PoE
- DC voltage range: 17 - 57 V
- Output voltage: 57 V
- Power consumption (max): 13 W
Design

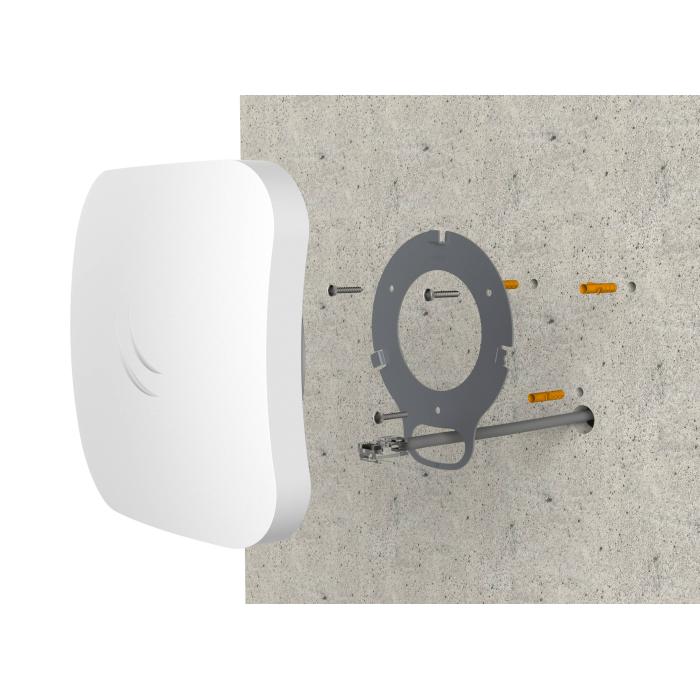

- Placement: Ceiling, Wall
- Product colour: White
- LED indicators: Yes
- Internal: No
Antenna
- Antenna type: Internal
- Antenna features: Integrated antenna
- Antennas quantity: 4
- Antenna gain level (max): 2.5 dBi
Performance
- Built-in processor: Yes
- Processor model: IPQ4018
- Processor frequency: 716 MHz
- Flash memory: 16 MB
- Internal memory: 128 MB
- Operating system installed: RouterOS
Certificates
- Certification: CE, FCC, IC, EAC, ROHS
Weight & dimensions
- Width: 136 mm
- Depth: 30 mm
- Height: 136 mm
Packaging content
- AC adapter included: Yes
- PoE adapter included: Yes
- Mounting kit: Yes
Operational conditions
- Operating temperature (T-T): -40 - 50 °C
Logistics data
- Harmonized System (HS) code: 85176990
