Description

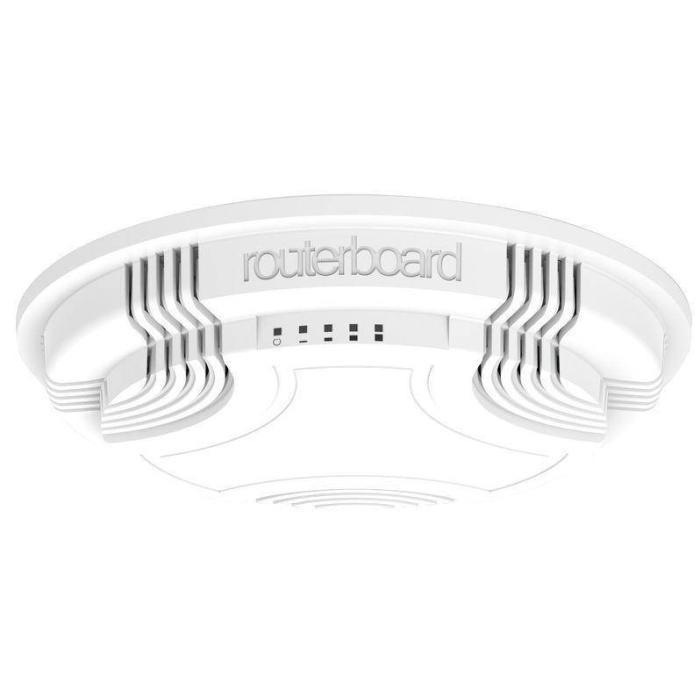

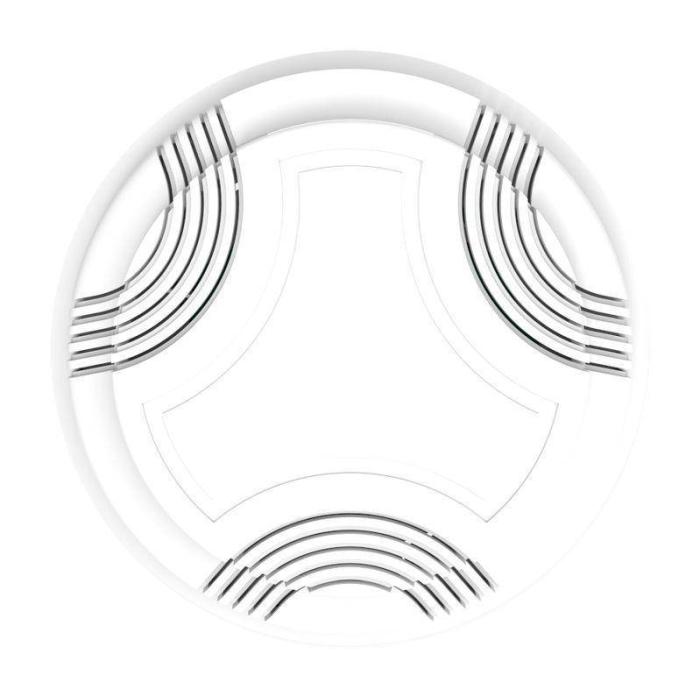

Mikrotik cAP-2nD access point in white for ceiling mounting, with Power over Ethernet (PoE) supply to simplify cabling. It transmits on the 2.4 GHz band with a power of up to 22 dBmW and is compatible with IEEE 802.11b/g/n standards, although its maximum Wi-Fi speed is 54 Mbit/s. It includes an RJ-45 Ethernet port with Auto MDI/MDI-X and speeds of 10/100 Mbit/s, which also receives AC input voltage between 11 and 57 V. Its maximum consumption is only 4 W and it features an integrated 2 dBi antenna, 16 MB Flash memory and status indicator LEDs.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: No
- Wi-Fi data rate (max): 54 Mbit/s
- Ethernet LAN data rates: 10, 100 Mbit/s
- Frequency band: 2.4 GHz
- Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
- Auto MDI/MDI-X: Yes
- Transmitting power: 22 dBmW
- Receiver sensitivity: 1MBit/s: -96 @ 22dBm Tx 11MBit/s: -89 @ 22dBm Tx 6MBit/s: -93 @ 20dBm Tx 54MBit/s: -74 @ 18dBm Tx MCS0: -93 @ 20dBm Tx MCS7: -71
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Power
- Power over Ethernet (PoE): Yes
- AC input voltage: 11 - 57 V
- Power consumption (max): 4 W
Design
- Placement: Ceiling
- Product colour: White
- LED indicators: Yes
- Internal: No
Antenna
- Antenna gain level (max): 2 dBi
Performance
- Built-in processor: Yes
- Flash memory: 16 MB
- Internal memory: 64 MB
- Operating system installed: RouterOS
Weight & dimensions
- Width: 138 mm
- Depth: 138 mm
- Height: 31 mm
Packaging content

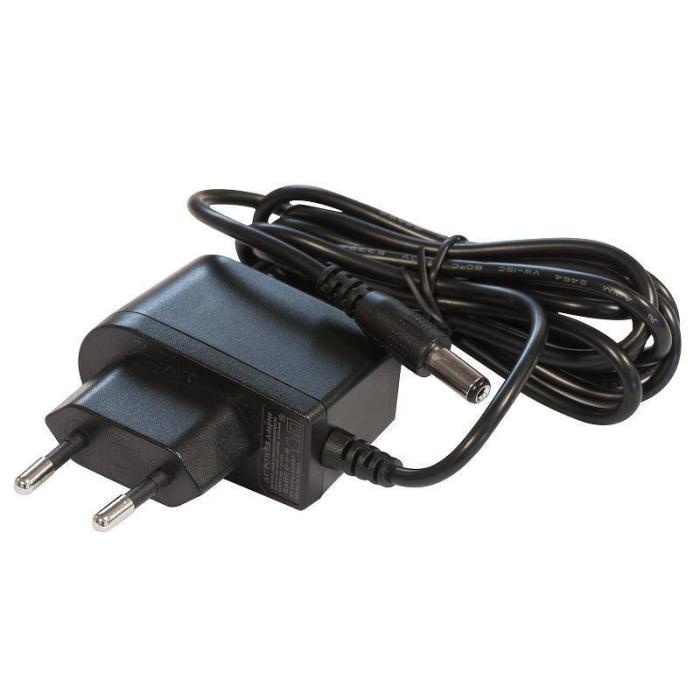

- AC adapter included: Yes

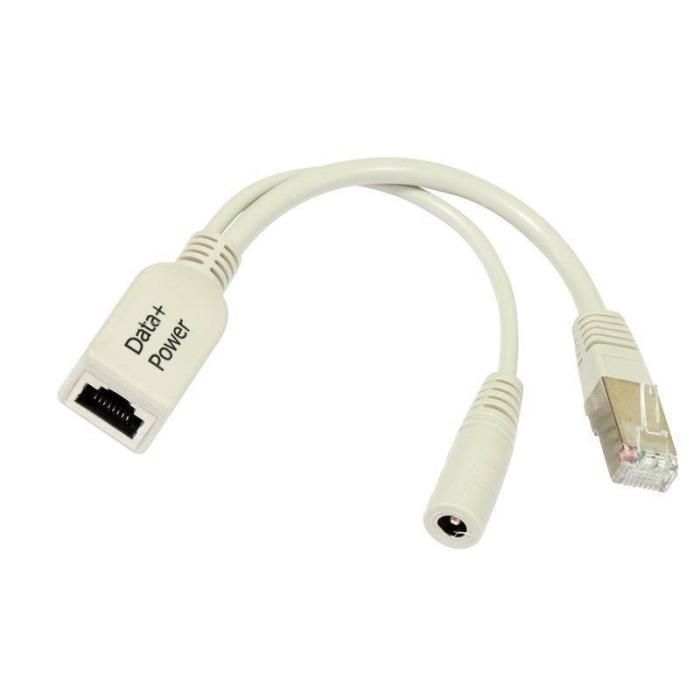

- PoE adapter included: Yes

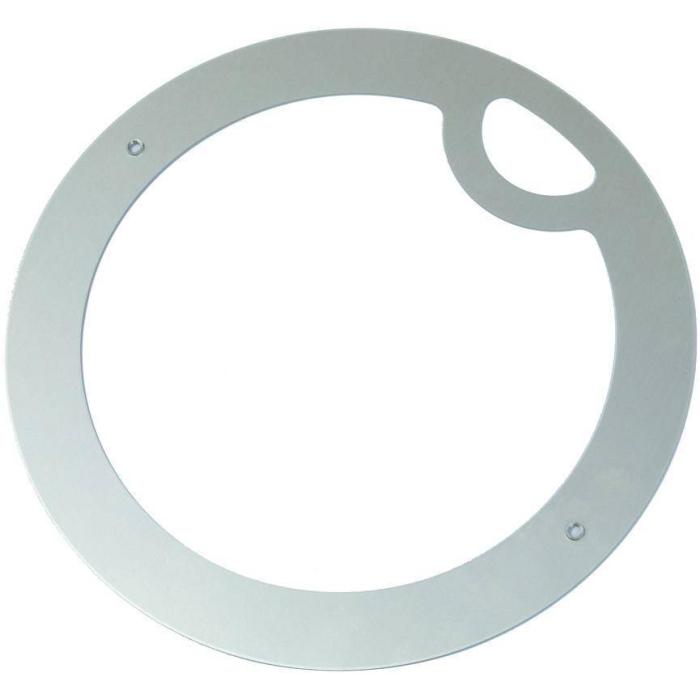

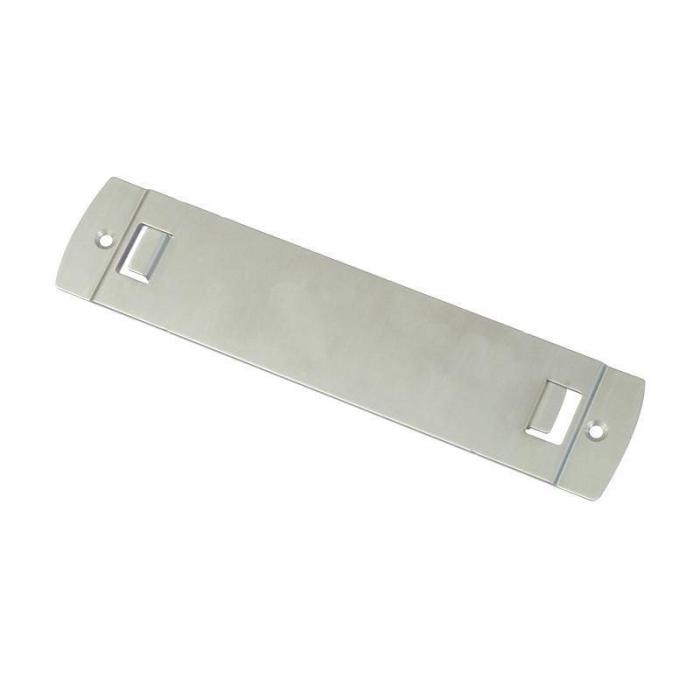

- Mounting kit: Yes
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
