Description

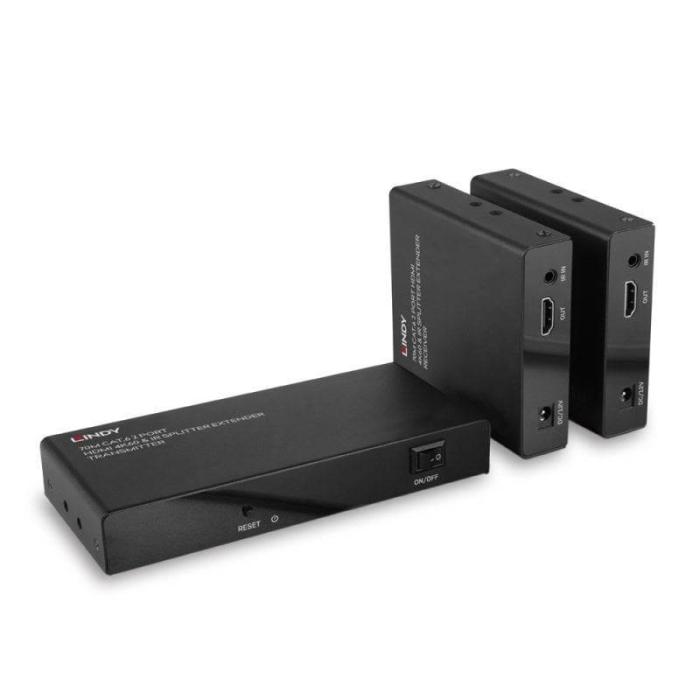

The Lindy 38385 audio/video extender, in black with a metallic finish, transmits AV signals in 4K resolution over a maximum distance of 70 metres via two RJ-45 output ports. This transmitter and receiver supports one HDMI input and offers two outputs, with EDID management and HDCP 2.2 protection for protected content. Its 18 Gbit/s bandwidth supports LPCM audio formats, while the infrared remote input operates in a range of 20 to 60 kHz. It includes CE, UKCA, FCC and RoHS certifications, and its GSV2006 and GSV5100 chipset ensures stable signal conversion.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Maximum transfer distance: 70 m
- Chipset: GSV2006 & GSV5100
- EDID management: Yes
- Infrared (IR) frequency range: 20 - 60 kHz
- Bandwidth: 18 Gbit/s
- Audio formats supported: LPCM
- HDCP: Yes
- Material: Metal
- HDCP version: 2.2
- Product colour: Black
- Certification: CE, UKCA, FCC, RoHS, REACH & California Propositon 65
Ports & interfaces
- Connectivity technology: Wired
- RJ-45 input ports: 1
- RJ-45 output ports: 2
- HDMI in: 1
- Number of HDMI outputs: 2
- Remote (IR) input: 1
- Remote (IR) output: 1
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 80 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Receiver dimensions (WxDxH): 100 x 88 x 23 mm
- Receiver weight: 199 g
- Transmitter dimensions (WxDxH): 154 x 103 x 23 mm
- Transmitter weight: 263 g
Packaging data
- Quantity per pack: 3 pc(s)
- Package width: 292 mm
- Package depth: 238 mm
- Package height: 55 mm
- Package weight: 1.26 kg
- Package type: Box
Packaging content
- Cables included: IR
- Manual: Yes
- Mounting brackets included: Yes
- Packaging content: 70m Cat.6 2 Port HDMI® 4K60 Splitter Extender 2 x Receivers IR Emitter Cable, 1.2m 2 x IR Receiver Cable, 1.2m 2 x Transmitter
