Description

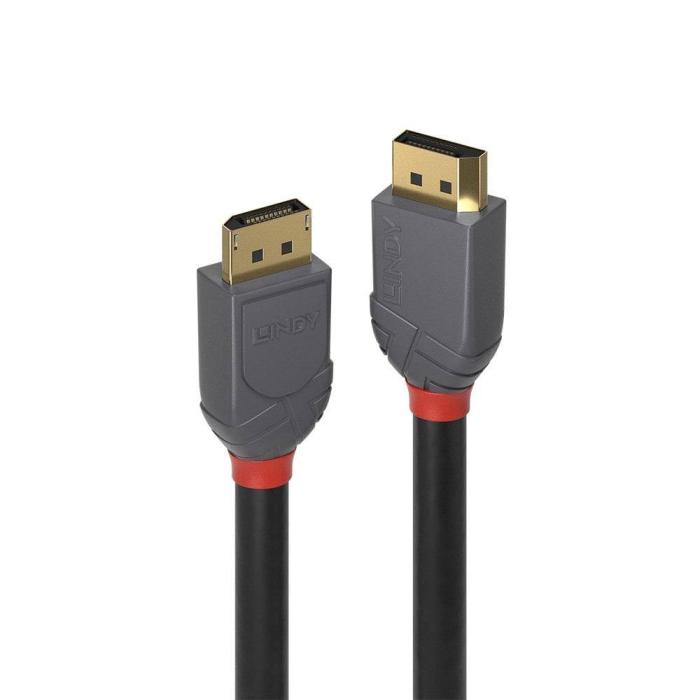

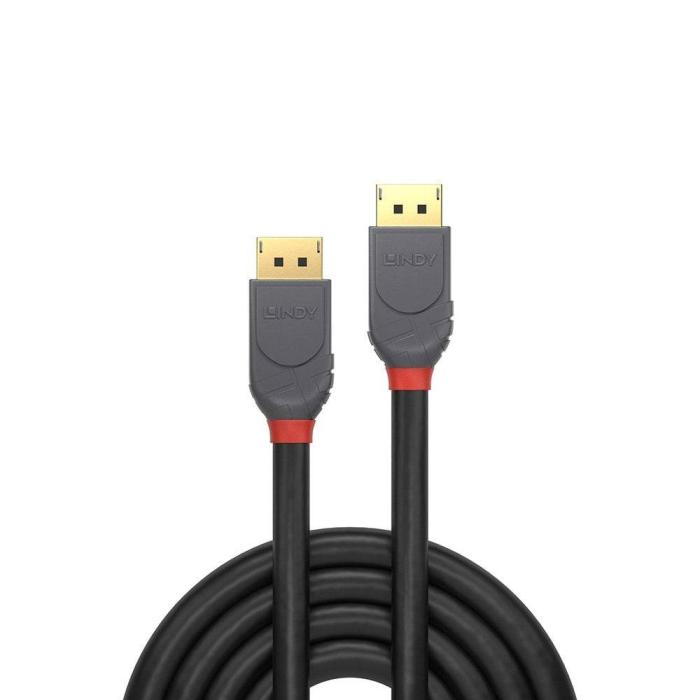

The LINDY DisplayPort cable, in black, connects devices with DisplayPort ports via a 2 m cable with tinned copper conductors and 28 AWG. Its connectors, with a straight form factor at both ends, feature gold-plated phosphor bronze contacts and an ABS shell, measuring 21 x 13.6 x 38.9 mm (width x height x depth). The PVC jacket protects the round cable, whose copper shielding helps maintain signal integrity. It supports a maximum resolution of 7680 x 4320 pixels with 4:2:2 chroma sampling, suitable for high-definition setups. The nominal attenuation is 5.1 dB between 100 and 450 MHz, and 33.28 dB between 450 and 8100 MHz. It is an option designed for connecting monitors, displays and DisplayPort-compatible devices.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.4
- Maximum resolution: 7680 x 4320 pixels
- Supported graphics resolutions: 4096 x 2160, 7680 x 4320
- Cable length: 2 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black
- Cable material: Tinned copper
- Cable shielding: Copper
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- AWG wire size: 28
- Data transfer rate: 32.4 Gbit/s
- Contact material: Phosphor bronze
- Connector material: Gold
- Colour sampling: 4:2:2
- Cable type: Round cable
- Nominal attenuation: 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Certification: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 7.3 mm
- Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
- Bend radius (min): 5.84 cm
Packaging data
- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
Other features
- Depth: 38.9 mm
- Height: 13.6 mm
- Width: 21 mm
