Description

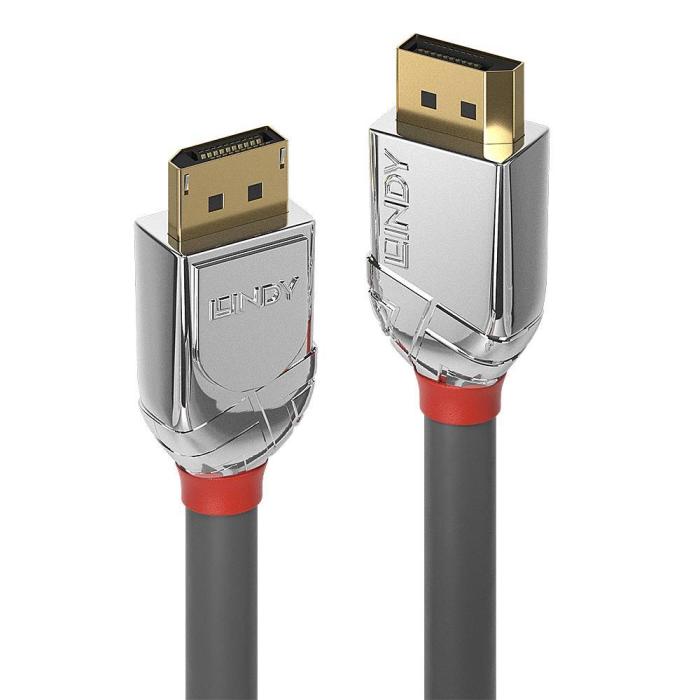

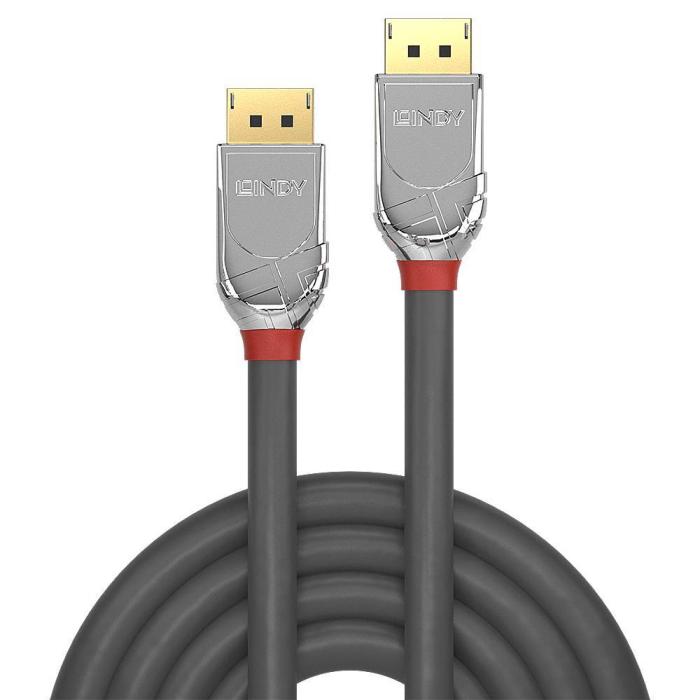

The LINDY DisplayPort cable, reference 36302, is a video connection solution in grey with a 2 m cable. This round cable from the LINDY brand incorporates DisplayPort 1.4 and achieves a data transfer rate of 32.4 Gbit/s, which allows working with graphic resolutions of up to 7680 x 4320 at a maximum refresh rate of 60 Hz. Its male connectors, both with a straight form factor, facilitate the connection between compatible equipment. The cable uses tinned copper conductors with copper shielding and phosphor copper contacts, protected by a polyvinyl chloride (PVC) jacket. The cable gauge is 28 AWG and the colour sampling is 4:2:2, which helps to maintain signal fidelity in every connection. Its construction is designed to offer stable performance in high-resolution video transmission.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.4
- Maximum resolution: 7680 x 4320 pixels
- Supported graphics resolutions: 7680 x 4320
- Maximum refresh rate: 60 Hz
- Cable length: 2 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Grey
- Cable material: Tinned copper
- Cable shielding: Copper
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- AWG wire size: 28
- Data transfer rate: 32.4 Gbit/s
- Contact material: Phosphor copper
- Connector material: Gold
- Colour sampling: 4:2:2
- Cable type: Round cable
- Nominal attenuation: 300kHz-825MHz 5dB,825MHz-2.475GHz 5dB,2.475GHz-4.125GHz 12dB,4.125GHz-5.1GHz 20dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Certification: RoHS, REACH, UL,
Weight & dimensions
- Cable diameter: 7.3 mm
- Connector 1 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
- Connector 2 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
- Bend radius (min): 7.3 cm
Packaging data
- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
