Description

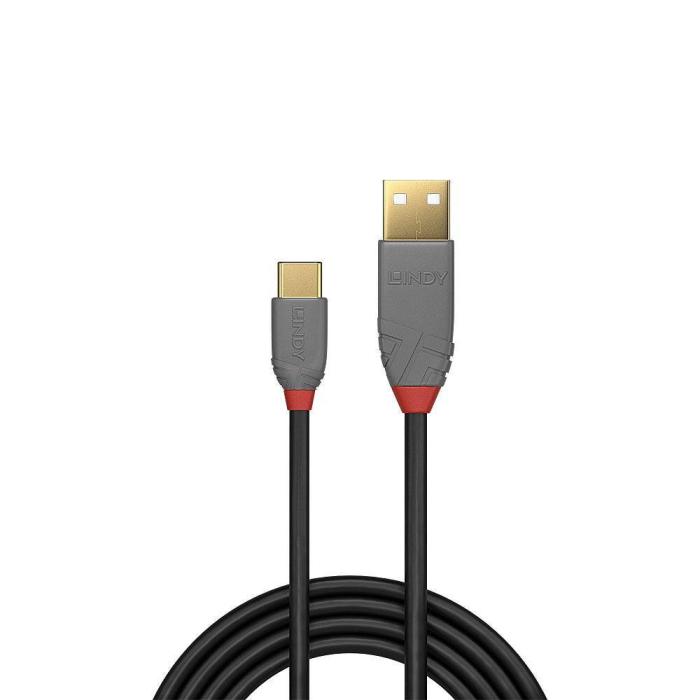

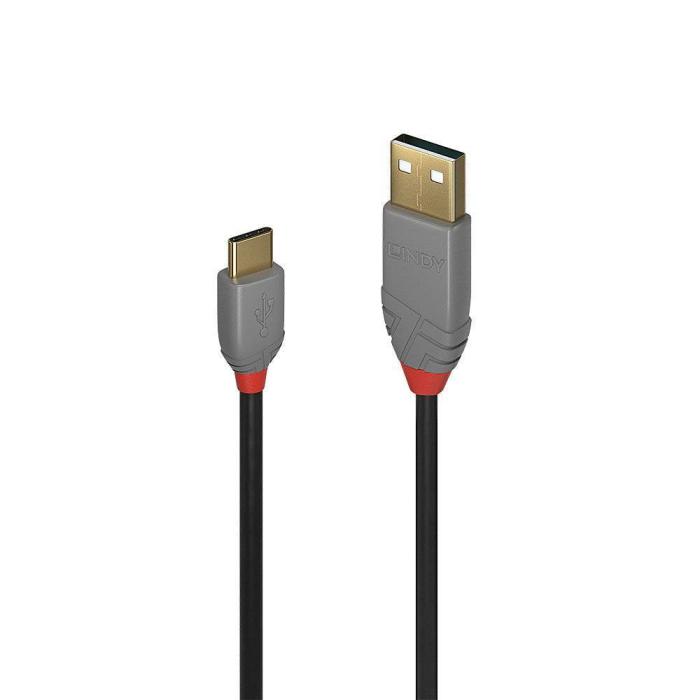

Connect your devices with the Lindy 36886 cable, a 1 m USB cable in black and grey that joins a USB A connector and a USB C connector. Both terminations are male and feature gold-plated phosphor bronze contacts, as well as a gold connector and copper shielding. Its shielding protects the transmission against interference, while the tinned copper conductor and the polyvinyl chloride (PVC) jacket complete its construction. It offers a maximum data transfer rate of 480 Mbit/s within the USB 2.0 standard, with a nominal attenuation of 5.8 dB between 0.5 MHz and 400 MHz at lengths of 0.5 to 3 m. The cable gauge is AWG 28 and its operation is plug and play.
Specifications
Features
- USB version: USB 2.0
- Connector 1: USB A
- Connector 2: USB C
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 28
- Connector material: Gold
- Contact material: Phosphor bronze
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
- Connector shielding: Yes
- Connector shield material: Copper
- Connector housing material: Polyvinyl chloride (PVC)
- Maximum data transfer rate: 0.48 Gbit/s
- Product colour: Black, Grey
- Cable type: Round cable
- Plug and Play: Yes
- Nominal attenuation: 0.5-3m: 0.5Mhz €“ 400Mhz 5.8db
Weight & dimensions
- Cable length: 1 m
- Cable diameter: 3.5 mm
- Bend radius (min): 3.5 cm
- Connector 1 dimensions (WxDxH): 11 x 25.5 x 7.3 mm
- Connector 2 dimensions (WxDxH): 15.5 x 35.1 x 7.8 mm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Certification: RoHS, REACH, UL
Logistics data
- Harmonized System (HS) code: 84733080
