Description

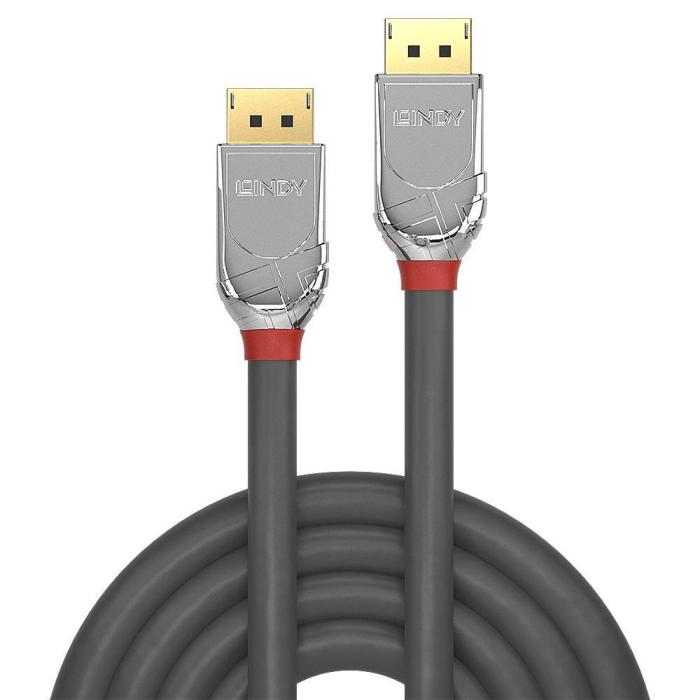

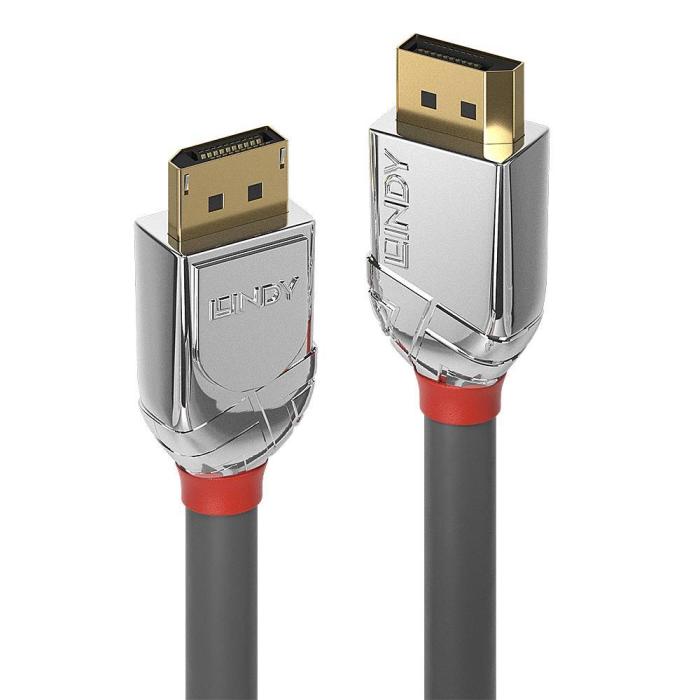

The LINDY DisplayPort cable, reference 36303, connects equipment with two straight DisplayPort connectors and comes in chrome and grey. Its 3 m cable is made of tinned copper and protected by a polyvinyl chloride (PVC) jacket and a copper shield that contributes to reliable use. The contacts are phosphor bronze with gold plating, while the connector casing is acrylonitrile butadiene styrene (ABS). It complies with DisplayPort 1.2 and reaches a maximum resolution of 4096 x 2160 pixels at a 60 Hz refresh rate. It also supports 4:4:4 colour sampling and 3D content for enjoying images with greater definition. Connect your monitor or screen to the tower with this LINDY brand cable and take advantage of its length to organise your desk with room to spare.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.2
- Maximum resolution: 4096 x 2160 pixels
- Supported video modes: 2160p
- Maximum refresh rate: 60 Hz
- 3D: Yes
- Cable length: 3 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Chrome, Grey
- Cable material: Tinned copper
- Cable shielding: Copper
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- AWG wire size: 28
- Data transfer rate: 21.6 Gbit/s
- Contact material: Phosphor bronze
- Connector material: Gold
- Colour sampling: 4:4:4
- Cable type: Round cable
- Nominal attenuation: 300kHz-825MHz 5dB, 825MHz-2.475GHz 5dB, 2.475GHz-4.125GHz 12dB, 4.125GHz-5.1GHz 20dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Compliance certificates: REACH, RoHS
- Certification: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 7.3 mm
- Connector 1 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
- Connector 2 dimensions (WxDxH): 19.7 x 12 x 38.9 mm
- Bend radius (min): 7.3 cm
Packaging data
- Package type: Polybag
Packaging content
- Manual: Yes
Supplier features
- Product or Article Information Sheet available?: Yes
Logistics data
- Pallet net height: 3.89 cm
- Harmonized System (HS) code: 84733080
