Description

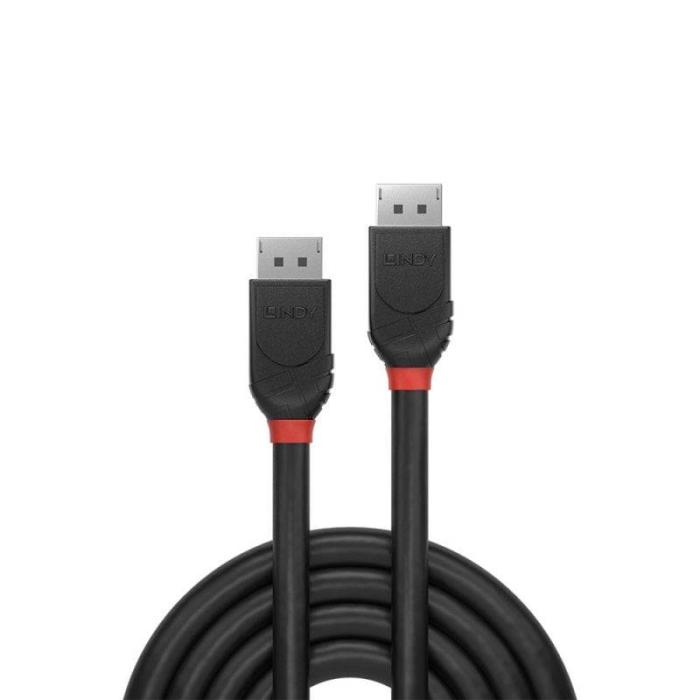

Connects two devices with a video signal using the LINDY DisplayPort cable, a round black 2 m cable that joins two straight DisplayPort connectors. Its construction combines copper conductors with gold-plated phosphor bronze contacts, which favours stable signal transmission. The connector is made of nickel and coated with acrylonitrile butadiene styrene, while the cable jacket uses polyvinyl chloride. It supports a maximum resolution of 4096 x 2160 pixels with a refresh rate of 60 Hz and 4:4:4 colour sampling, making it suitable for working with detailed images on compatible displays. It also features Plug and Play, so you can connect it and start using it without additional configurations.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.2
- Maximum resolution: 4096 x 2160 pixels
- Supported graphics resolutions: 4096 x 2160
- Maximum refresh rate: 60 Hz
- Cable length: 2 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black
- Cable material: Copper
- Cable shielding: Copper
- Jacket material: Polyvinyl chloride (PVC)
- Connector housing material: Acrylonitrile butadiene styrene (ABS)
- AWG wire size: 30
- Data transfer rate: 21.6 Gbit/s
- Contact material: Phosphor bronze
- Connector material: Nickel
- Plug and Play: Yes
- Colour sampling: 4:4:4
- Cable type: Round cable
- Nominal attenuation: 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB
Operational conditions
- Operating temperature (T-T): -20 - 80 °C
- Storage temperature (T-T): -25 - 85 °C
Certificates
- Certification: RoHS, REACH, UL
Weight & dimensions
- Cable diameter: 6 mm
- Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
- Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm
- Bend radius (min): 4.8 cm
Packaging data
- Package type: Polybag
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 84733080
