Description
Specifications

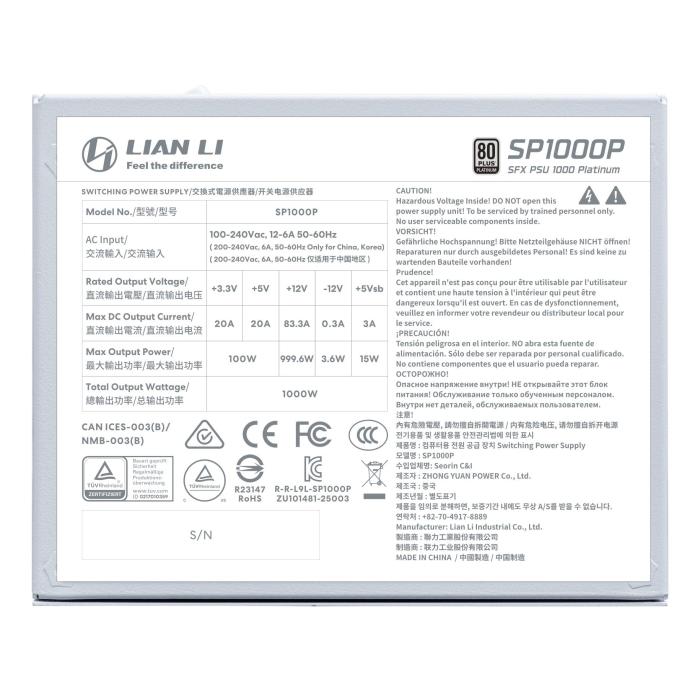

Power
- Total power: 1000 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 6 - 12 A
- Power factor: 0.95
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 999.6 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 83.3 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Overcharge, Overdischarge, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltag

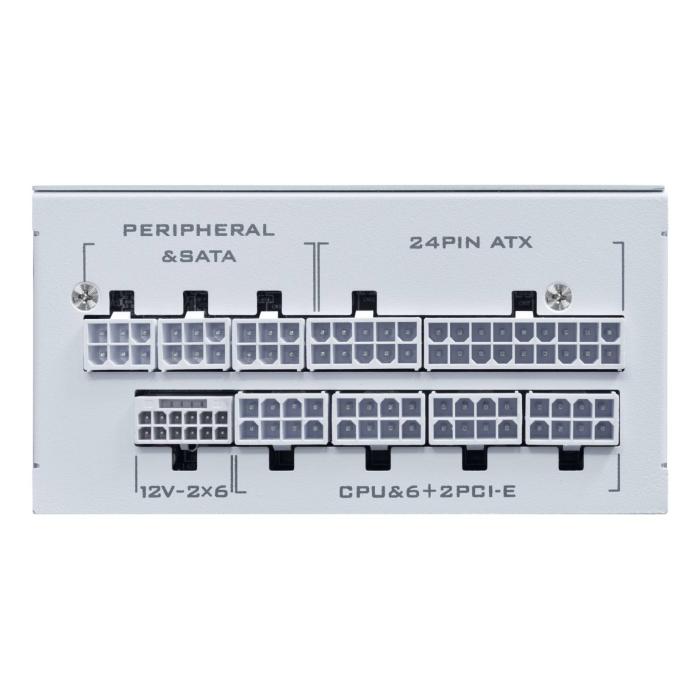

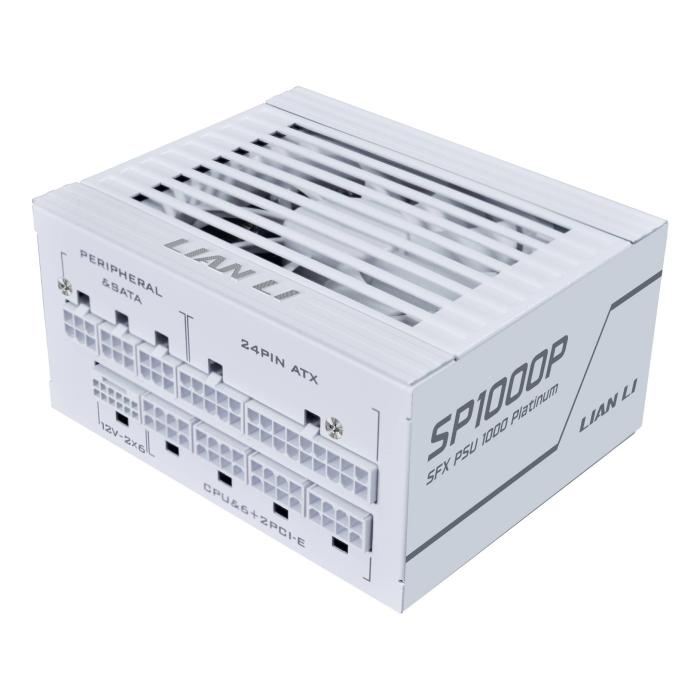

Ports & interfaces
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 3
- SATA power cable length: 350, 500, 650 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (8-pin): 3
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 45 cm
- ATX Power connector (24-pin): Yes
- Cabling type: Fully-Modular
- Motherboard power connector: 24-pin ATX
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- ATX version: 3.1
- Noise level: 45 dB
- Bearing technology: FDB
Design
- Product colour: White

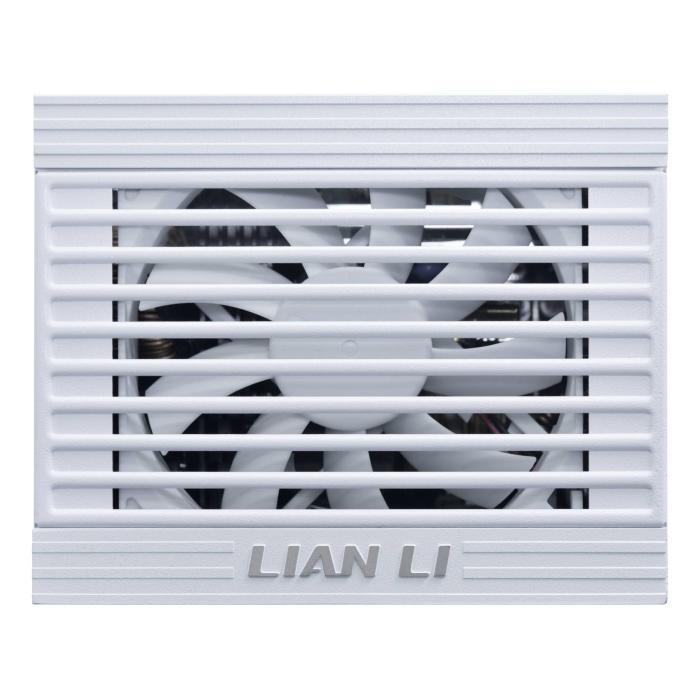

- Fan diameter: 9.2 cm
- Number of fans: 1 fan(s)

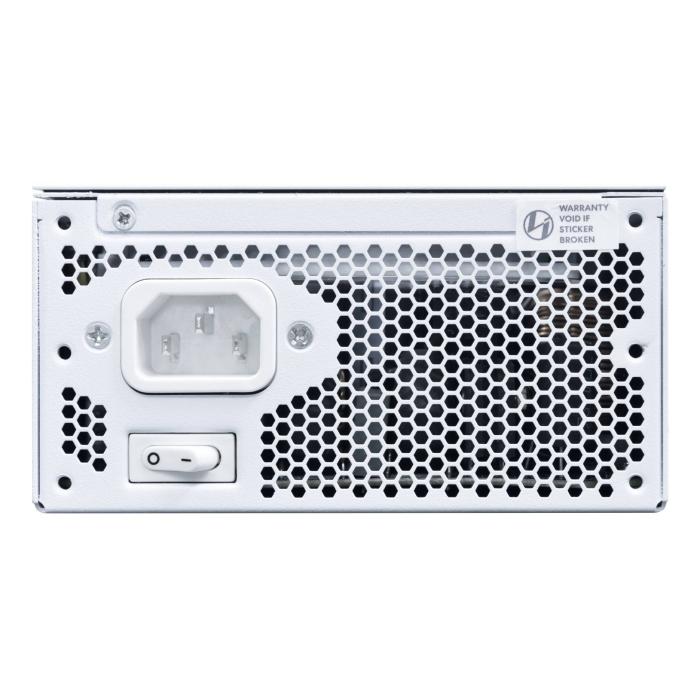

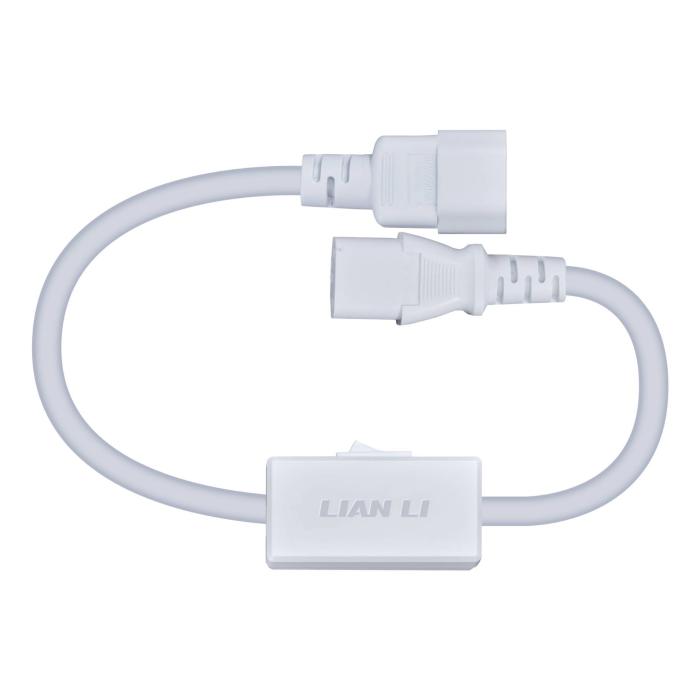

- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 63.5 mm
