Description
Specifications
Power
- Total power: 750 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 5 - 10 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 744 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 62 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 90%
- Power protection features: No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Un
Ports & interfaces

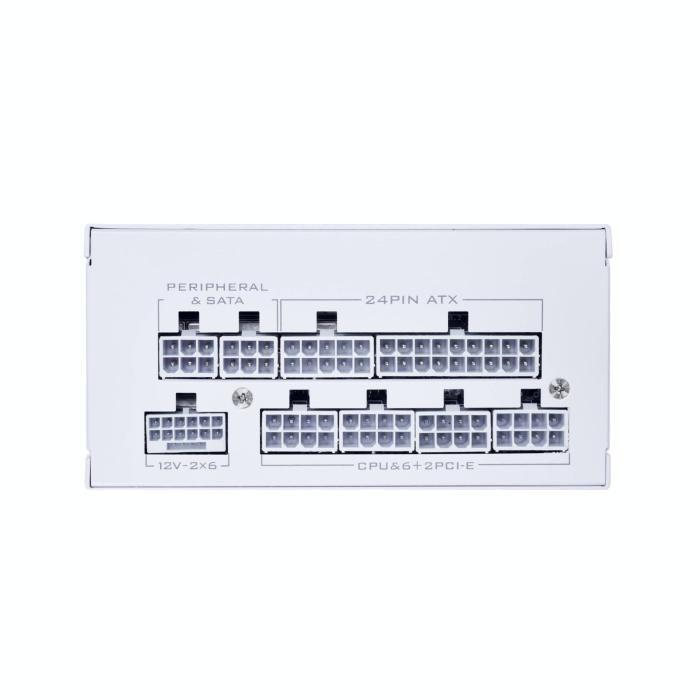

- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 7
- SATA power cable length: 350 mm
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 2
- PCI Express power connectors (8-pin): 1
- PCI Express power cable length: 40 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 60 cm
- Cabling type: Fully-Modular
Performance
- Bearing technology: FDB
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: SFX
- ATX version: 3.1
- Noise level: 32.5 dB
Design
- Product colour: White
- Cooling type: Active
- Fan diameter: 9.2 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 3000 RPM
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Weight & dimensions
- Width: 125 mm
- Depth: 100 mm
- Height: 63.5 mm
