Description

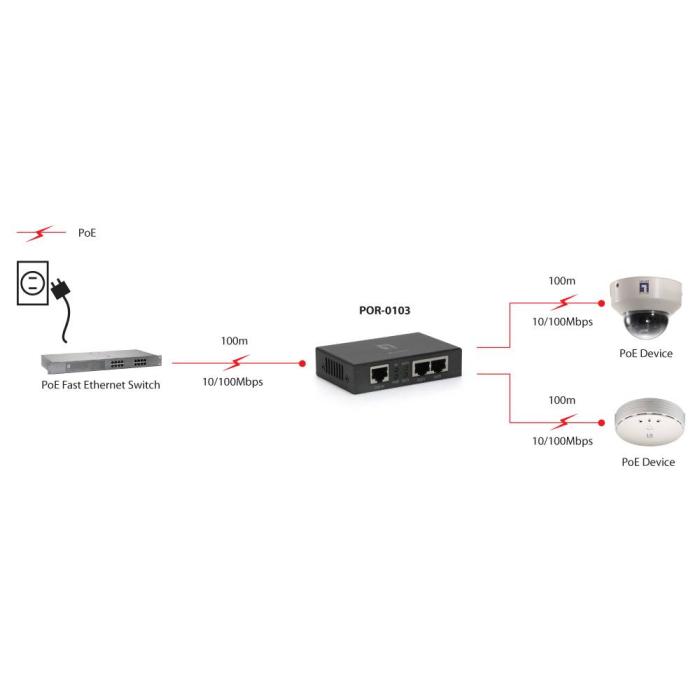

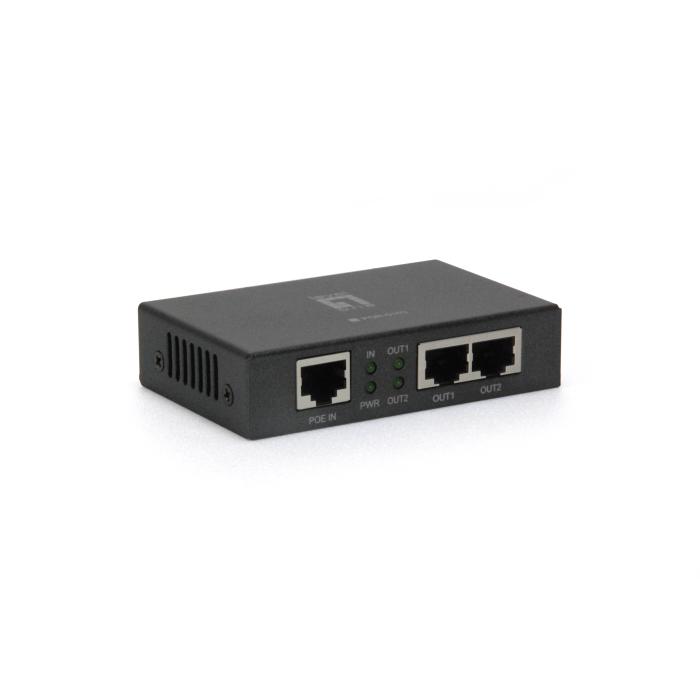

LevelOne network repeater with two PoE outputs that extends the Ethernet connection up to 100 metres, designed to power and repeat the signal on devices such as cameras or access points. It features three RJ-45 10/100Base-T(X) ports, three of which provide Power over Ethernet supply compliant with IEEE 802.3af and 802.3at standards, and supports a PoE input voltage of 46 to 57 V with a maximum power consumption of 2.5 W. Its black wall-mount design includes LED indicators for PoE and power, and operates in a temperature range of 0 to 50 °C with a relative humidity of 5 to 95%. Manufactured in Taiwan, it complies with FCC Part 15 Class B and CE certifications.
Specifications
Performance
- Type: Network repeater
- Maximum transfer distance: 100 m
Network
- Cabling technology: 10/100Base-T(X)
- Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 3
- Power over Ethernet (PoE) ports quantity: 3
Design
- Product colour: Black

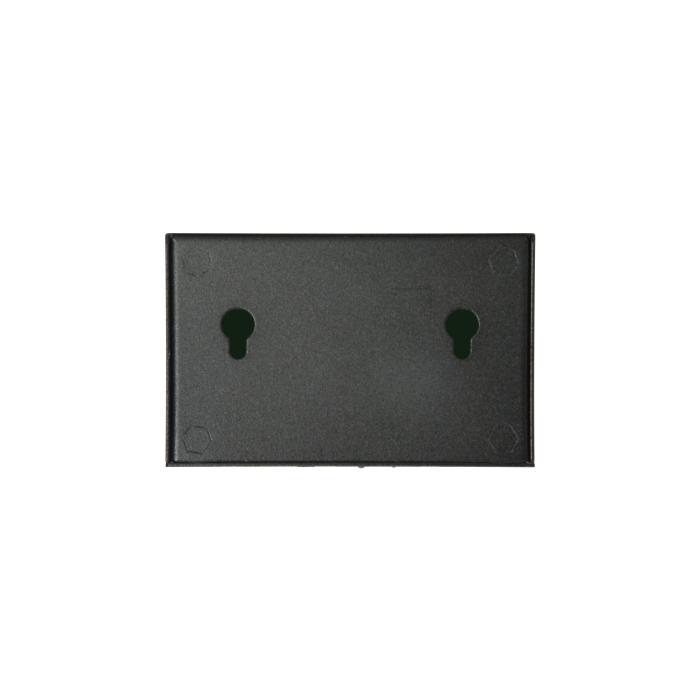

- Mounting type: Wall
- LED indicators: PoE, Power
- Country of origin: Taiwan
- Certification: FCC Part 15, Class B, CE
Power
- Power consumption (max): 2.5 W
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) voltage range: 46 - 57 V
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 57 mm
- Depth: 21 mm
- Height: 91 mm
- Weight: 200 g
Packaging content
- Quick start guide: Yes
Packaging data
- Package type: Box
- Package width: 93 mm
- Package depth: 43 mm
- Package height: 140 mm
- Package weight: 100 g
Certificates
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
