Name: LevelOne PoE Repeater, 802.3at/af PoE
Brand: LEVELONE
Price: 116 EUR
Availability: InStock

Description

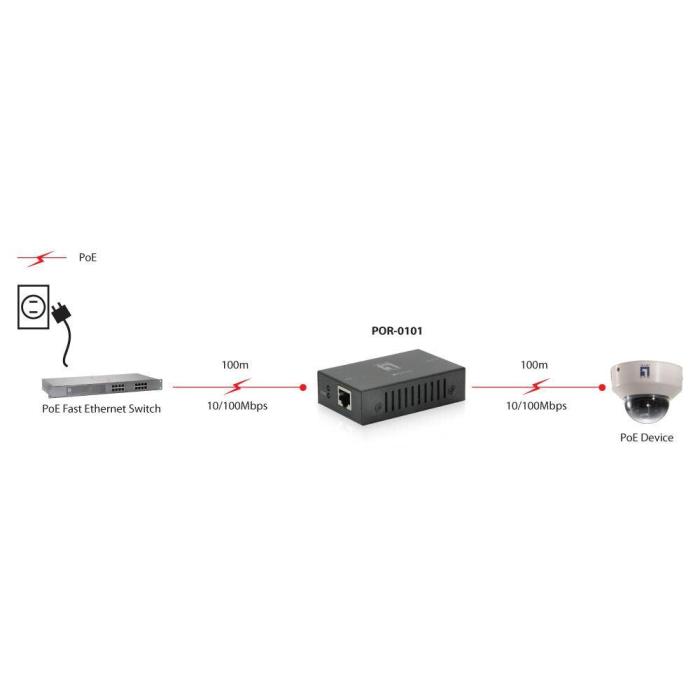

LevelOne PoE Repeater, 802.3at/af PoE, Network repeater, 100 m, 100 Mbit/s, 10/100Base-T(X), IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, Black

Specifications

Performance

Type: Network repeater
Maximum transfer distance: 100 m
Data transfer rate: 100 Mbit/s
Plug and Play: Yes

Network

Cabling technology: 10/100Base-T(X)
Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
Power over Ethernet (PoE) ports quantity: 2

Design

Product colour: Black

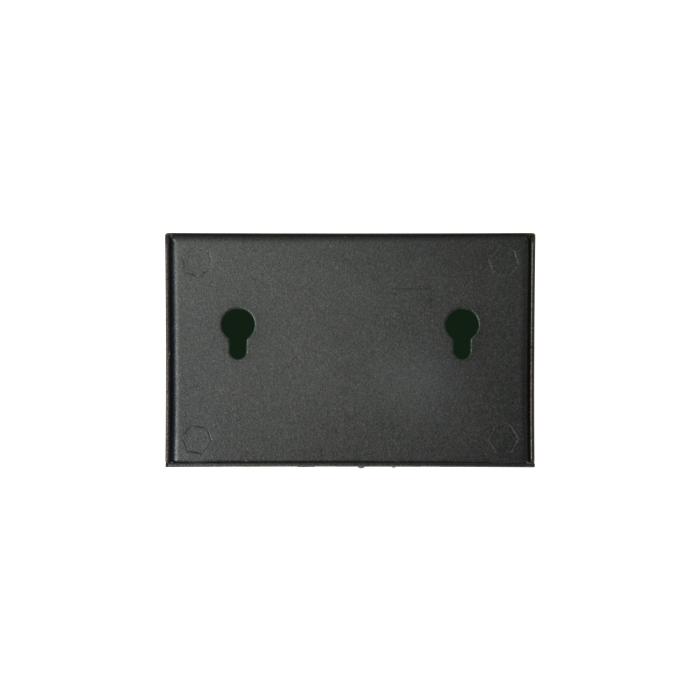

Mounting type: Wall
LED indicators: PoE, Power
Country of origin: Taiwan
Certification: FCC Part 15, Class B, CE

Power

Power consumption (max): 2.5 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) voltage range: 46 - 57 V

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 80 mm
Depth: 70 mm
Height: 23 mm
Weight: 200 g

Packaging content

Quick start guide: Yes

Packaging data

Package type: Box
Package width: 93 mm
Package depth: 43 mm
Package height: 140 mm
Package weight: 100 g

Certificates

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
