Description

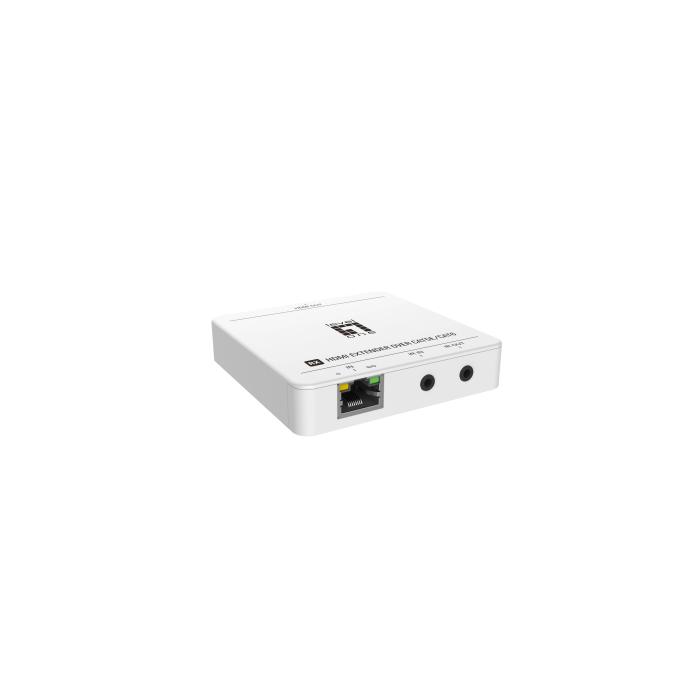

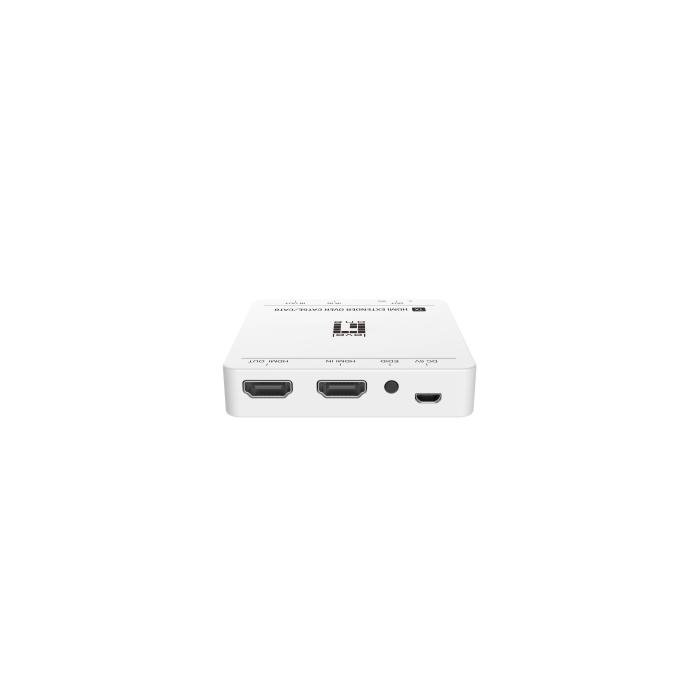

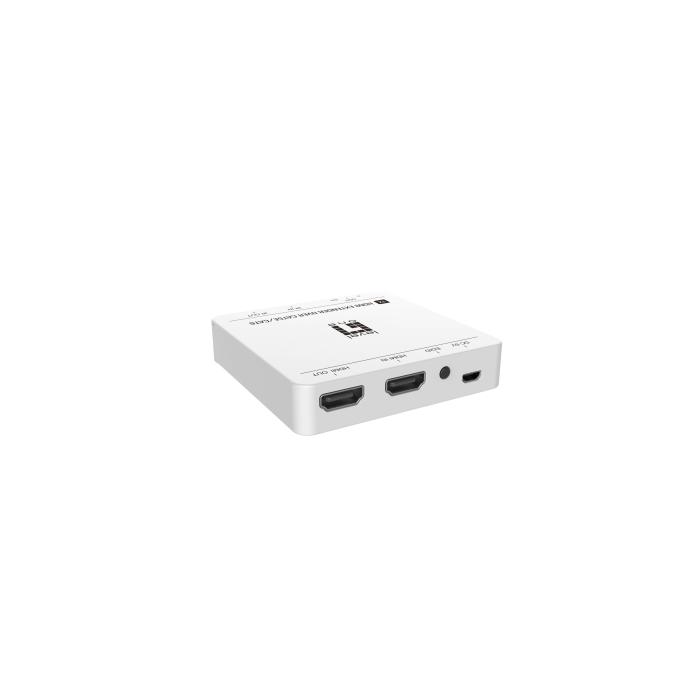

LevelOne HVE-9007 AV extender, white, featuring a transmitter and receiver for AV signals that carries picture and sound up to 70 metres over Cat5e or Cat6 cabling. Supports a maximum resolution of 3840 x 2160 pixels at a refresh rate of 60 Hz, compatible with HDCP 1.4 for protected content. Plug-and-play connection with HDCP and EDID pass-through, plus an IR pass-through output for remote control from the source. Includes DVI input and output ports as well as an infrared input, powered via MicroUSB connector with bidirectional DC plug.
Specifications
Features
- Type: AV transmitter & receiver
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 70 m
- Maximum refresh rate: 60 Hz
- IR pass-through: Yes
- HDCP pass-through: Yes
- Bidirectional: Yes
- HDCP: Yes
- HDCP & EDID bypass: Yes
- Plug and Play: Yes
- HDCP version: 1.4
- Product colour: White
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN: Yes
- DVI input ports: 1
- DVI output ports: 1
- USB ports quantity: 1
- USB connector type: Micro-USB
- Remote (IR) input: 1
- Remote (IR) output: 1
- DC-in jack: Yes
Operational conditions
- Operating temperature (T-T): -10 - 55 °C
- Operating relative humidity (H-H): 0 - 90%
Weight & dimensions
- Width: 16.8 mm
- Depth: 66 mm
- Height: 66 mm
- Weight: 74 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 143 mm
- Package depth: 74 mm
- Package height: 200 mm
- Package weight: 250 g
- Package type: Box
Packaging content
- AC adapter included: Yes
- Quick start guide: Yes
Technical details
- Country of origin: China
- Pallet net height: 150 cm
- Pallet net length: 80 cm
- Pallet net width: 120 cm
