Description

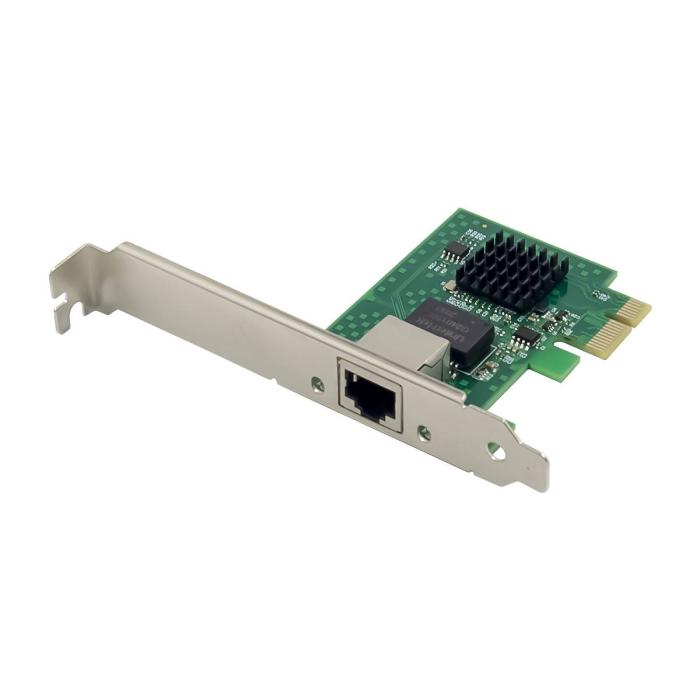

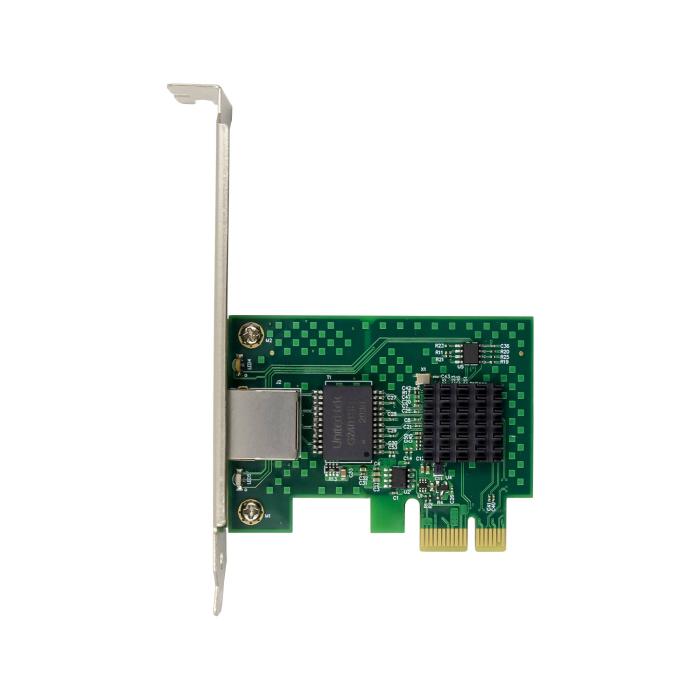

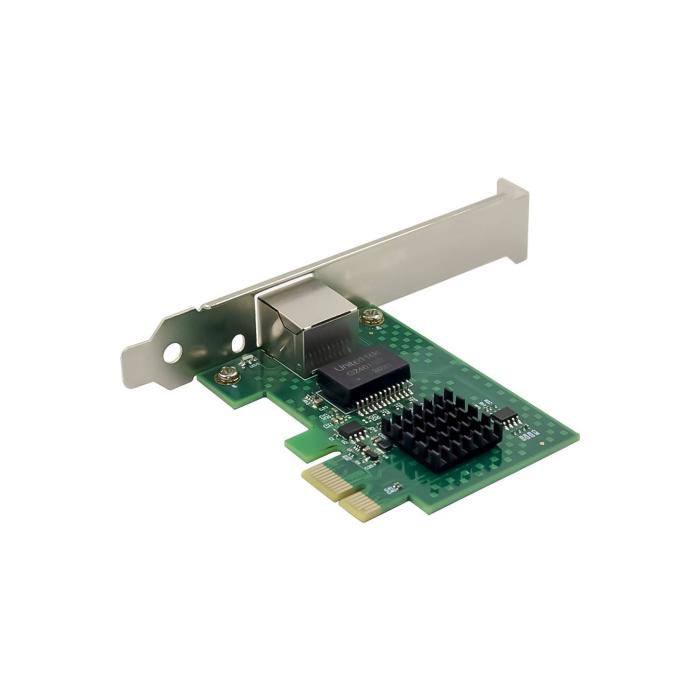

The internal network card LevelOne GNC-0113, in green, connects via a PCI Express 3.1 interface to expand the network connectivity of your PC or server. This Ethernet adapter offers a maximum data transfer rate of 5000 Mbit/s, compatible with copper cabling standards 10BASE-T, 100BASE-TX, 1000BASE-T and 2500BASE-T. Its RJ-45 port supports speeds of 10, 100, 1000 and 2500 Mbit/s, and thanks to Jumbo frame support of up to 9500 bytes, it optimises performance on high-speed networks. Additionally, it is compatible with IPv4 and IPv6 protocols and complies with IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz standards, among others, ensuring reliable integration into your infrastructure.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
- PCI version: 3.1
Network
- Maximum data transfer rate: 5000 Mbit/s
- Networking standards: IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, 2500BASE-T
- Wake-on-LAN ready: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9500
- Supported network protocols: IPv4, IPv6
Design
- Component for: PC/Server
- Product colour: Green
- Internal: Yes
- Country of origin: China
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 72 mm
- Depth: 55 mm
- Height: 20 mm
- Weight: 40 g
Packaging data
- Package width: 183 mm
- Package depth: 152 mm
- Package height: 30 mm
- Package weight: 150 g
Packaging content

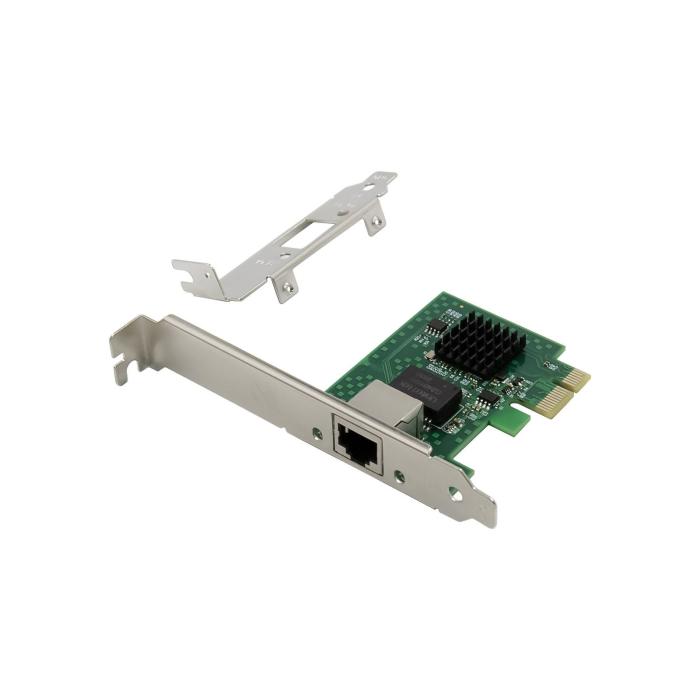

- Mounting brackets included: Yes
- Resource CD: Yes
- Quick installation guide: Yes
Technical details
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Logistics data
- Products per master (outer) case: 60 pc(s)
- Harmonized System (HS) code: 8517620090
- Pallet gross width: 120 cm
- Pallet gross length: 80 cm
- Pallet gross height: 189.4 cm
- Master (outer) cases per pallet: 19 pc(s)
- Master (outer) case width: 490 mm
- Master (outer) case length: 340 mm
- Master (outer) case height: 350 mm
- Master (outer) case gross weight: 10 kg
Other features
- Buffer size: 40 KB
