Description

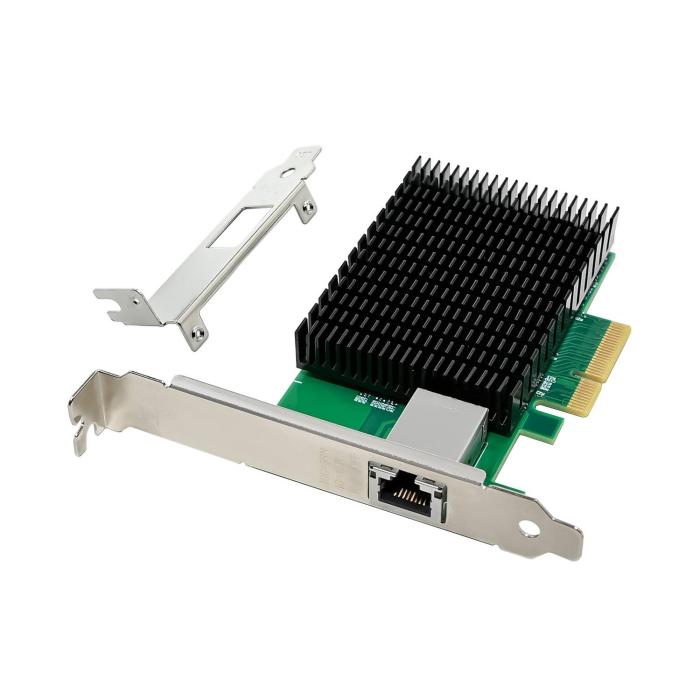

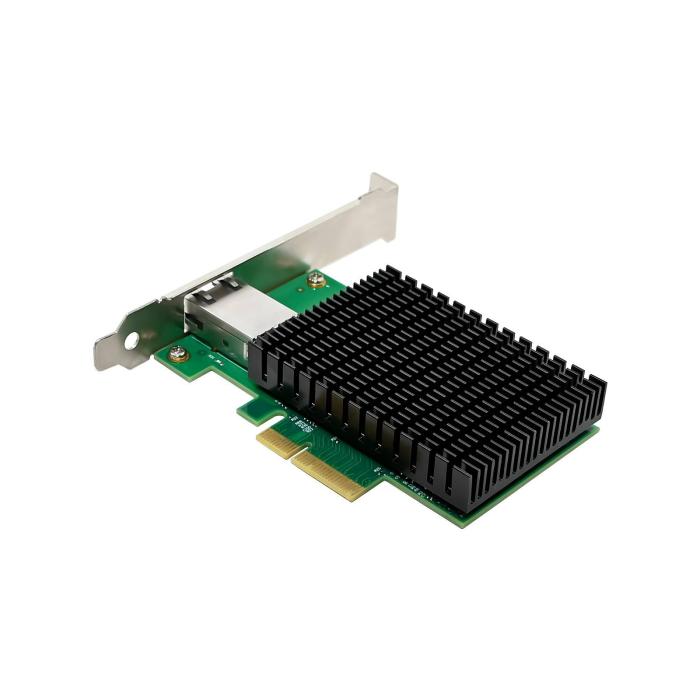

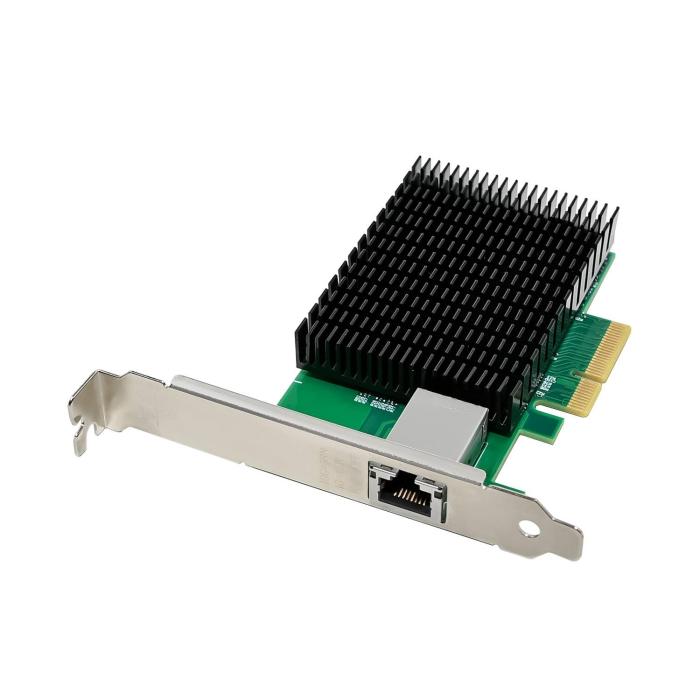

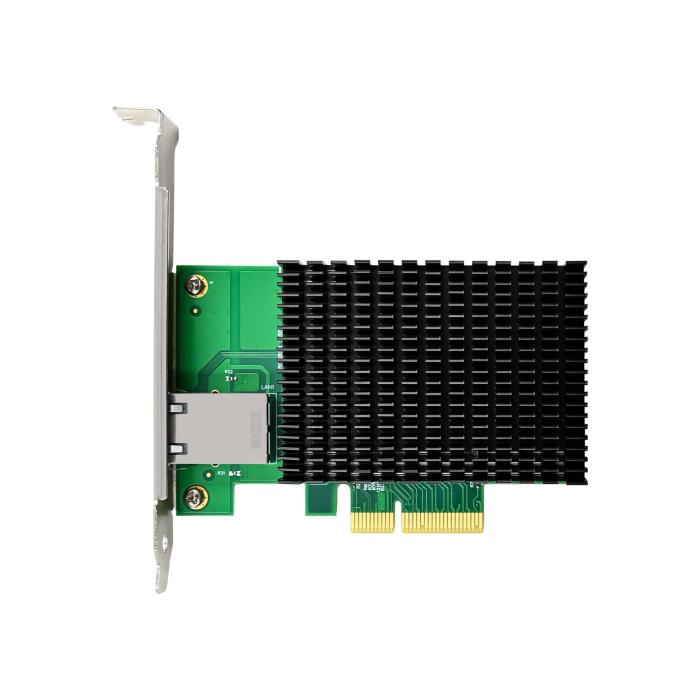

The LEVELONE GNC-0210 network card is a green internal Ethernet adapter that is installed in a PC or server via a PCI Express host interface. It offers wired connectivity through a single RJ-45 Ethernet LAN port with 10GBase-T cabling technology, and reaches data transfer speeds of 10, 100, 1000, 2500, 5000 and 10000 Mbit/s, which places it in the realm of Fast Ethernet, Gigabit Ethernet, 2.5, 5 and 10 Gigabit Ethernet. It is compatible with IPv4 and IPv6 network protocols and with the IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab and IEEE 802.3an standards, as well as featuring support for Jumbo Frames of up to 16000. Its dimensions are 105 x 20 x 68 mm (width x height x depth) and it weighs 110 g, making it a compact piece to integrate inside the equipment.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 1
Network
- Maximum data transfer rate: 10000 Mbit/s
- Networking standards: IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000, 2500, 5000, 10000 Mbit/s
- Cabling technology: 10GBase-T
- Wake-on-LAN ready: Yes
- Jumbo frames support: Yes
- Jumbo frames: 16000
- Supported network protocols: IPv4, IPv6
Design
- Component for: PC/Server
- Product colour: Green
- Internal: Yes
- Country of origin: China
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2012, Windows Server 2016
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Sustainability
- Sustainability compliance: Yes
Weight & dimensions
- Width: 105 mm
- Depth: 68 mm
- Height: 20 mm
- Weight: 110 g
Packaging data
- Package width: 183 mm
- Package depth: 152 mm
- Package height: 30 mm
- Package weight: 230 g
Technical details
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Logistics data
- Harmonized System (HS) code: 8517620090
- Pallet gross width: 120 cm
- Pallet gross length: 80 cm
- Pallet gross height: 189.4 cm
- Master (outer) cases per pallet: 19 pc(s)
- Master (outer) case width: 490 mm
- Master (outer) case length: 340 mm
- Master (outer) case height: 350 mm
- Master (outer) case gross weight: 15 kg
- Products per master (outer) case: 60 pc(s)
