Description

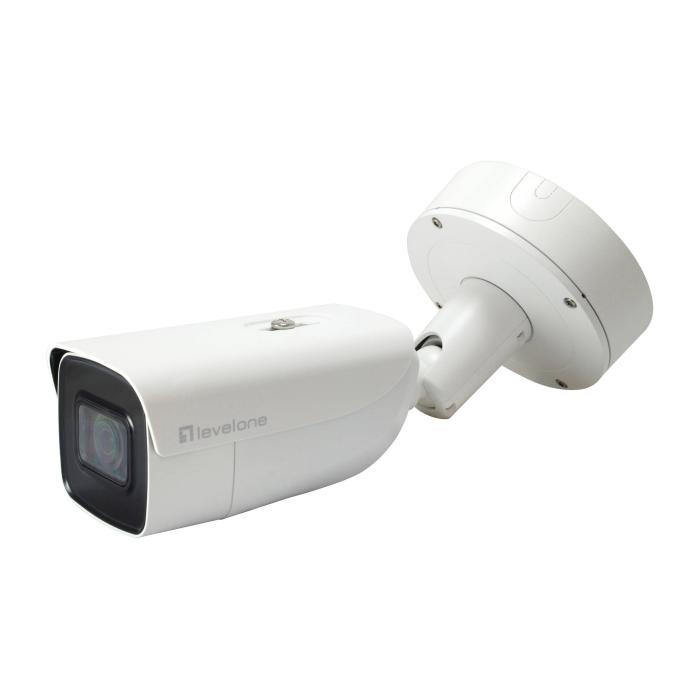

IP security camera with bullet form factor and white finish, the LevelOne FCS-5212 is designed for fixed indoor and outdoor surveillance, with a resolution of 3200 x 1800 pixels that captures crisp details. Its floor or wall mounting is complemented by weatherproofing (IP66) and a vandal-resistant housing rated IK10, suitable for demanding environments. The connection is wired and incorporates wide dynamic range (WDR) for scenes with light contrasts, as well as a shutter that adjusts from 1/3 to 1/100000 seconds and variable viewing angles: diagonal from 37 to 127°, horizontal from 32 to 106° and vertical from 18 to 56°. The LED indicators for activity, link and power facilitate the device status, although it does not include an infrared cut-off filter.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Infrared (IR) cut-off filter: No
Design
- Form factor: Bullet

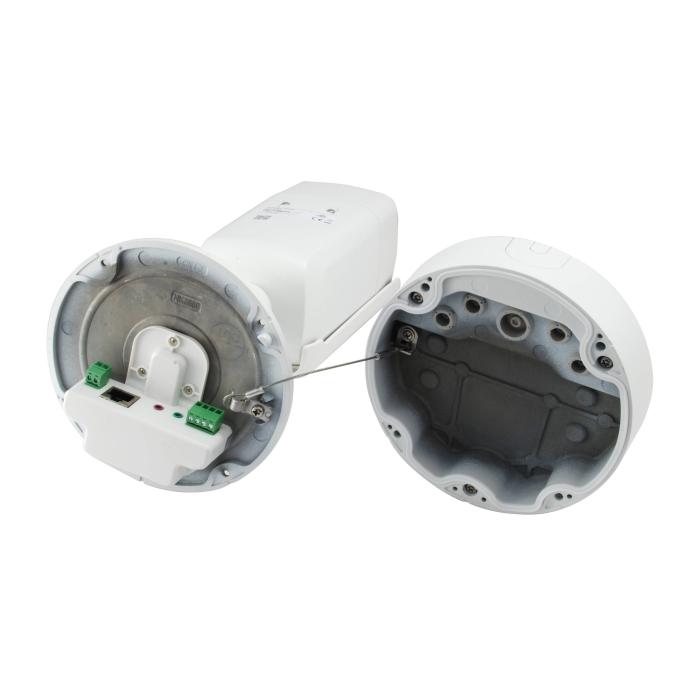

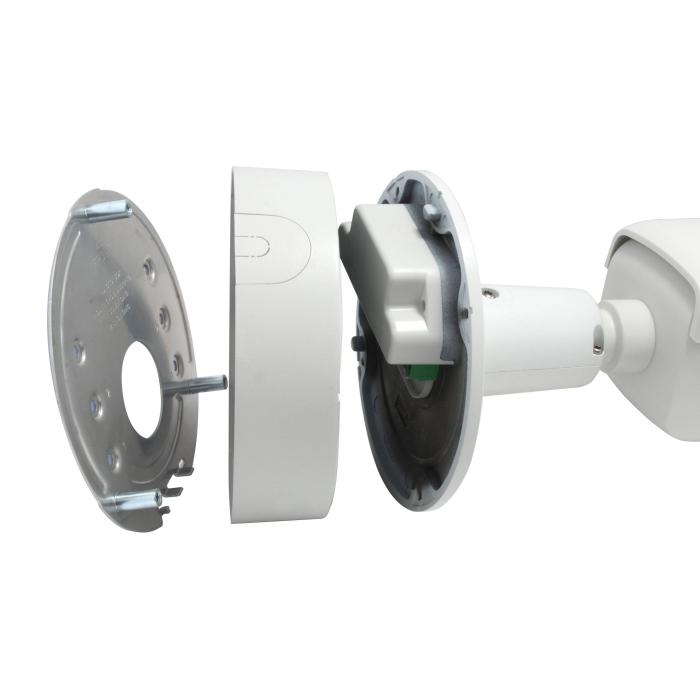

- Mounting type: Floor/wall
- Product colour: White
- LED indicators: Activity, Link, Power
- Protection features: Vandal proof
- International Protection (IP) code: IP66
- IK code: IK10
- Weatherproof: Yes
- Country of origin: China
Camera
- Minimum illumination: 0 lx
- Lens viewing angle, horizontal: 32 - 106°
- Lens viewing angle, vertical: 18 - 56°
- Lens viewing angle, diagonal: 37 - 127°
- Camera shutter speed: 1/3 - 1/100000 s
Image sensor
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 4.3x
- Focal length range: 2.8 - 12 mm
Night vision
- Night vision: Yes
- Night vision distance: 60 m
- LED type: IR
Video
- Maximum resolution: 3200 x 1800 pixels
- Total megapixels: 6 MP
- Video compression formats: H.264, H.265, M-JPEG
- Supported graphics resolutions: 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 2688 x 1520, 3200 x 1800
- Frame rate: 30 fps
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
- Privacy masking: Yes
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
Audio
- Audio system: 2-way
- Voice codecs: G.711, G.722.1, G.726, MP2L2, PCM
Network
- Bluetooth: No
- Number of simultaneous live view channels: 3 channels
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3at
- Wi-Fi: No
Storage
- Built-in HDD: No

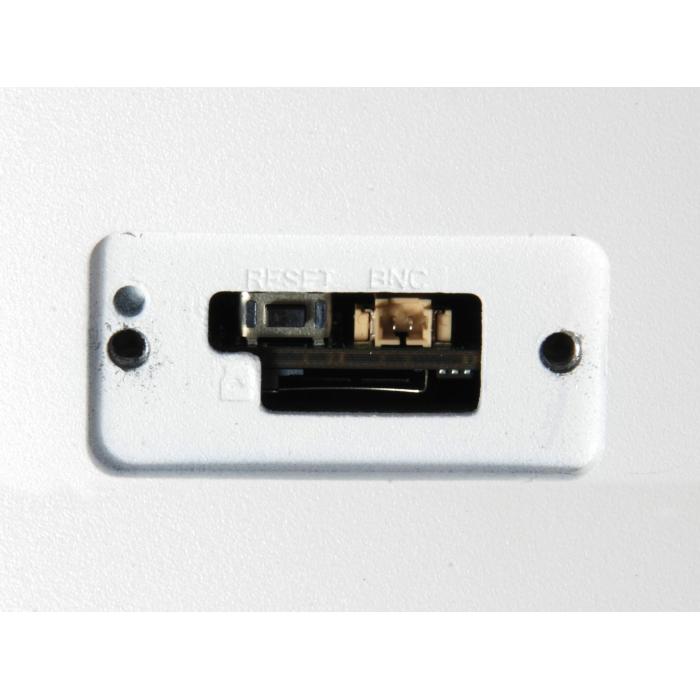

- Card reader integrated: Yes
- Compatible memory cards: MicroSDHC, MicroSDXC
- Maximum memory card size: 256 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1

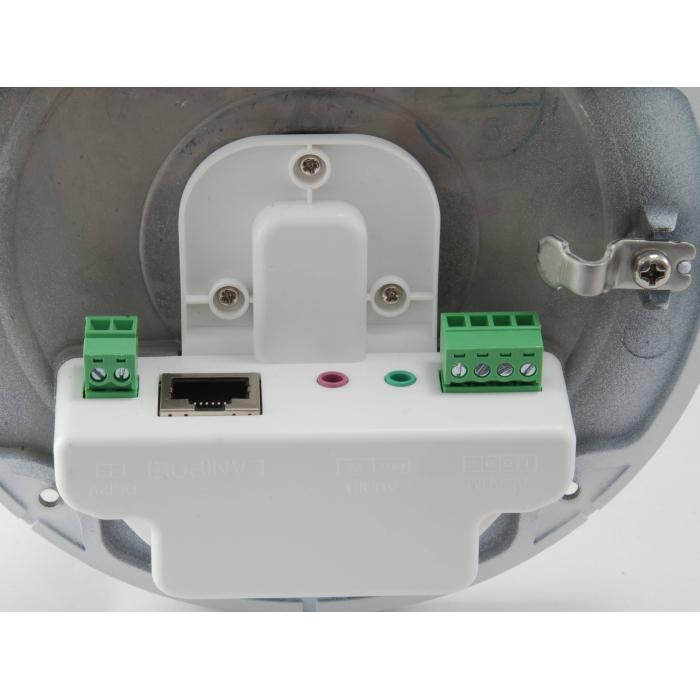

- Terminal block port: Yes
Security
- Video motion detection: Yes
- Active tampering alarm: Yes
- Intelligent Video Surveillance (IVS) system features: Crossing line, Face detection, Intrusion
- Mirror: Yes
- Human and vehicle targets classification: Yes
Power
- Power source type: DC, PoE
- Power consumption (max): 13 W
- Power consumption (Power over Ethernet (PoE)): 15 W
- DC output voltage: 12
- DC output current: 1.08 A
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 100 mm
- Depth: 300 mm
- Height: 80 mm
- Weight: 1.89 kg
Packaging data
- Package width: 190 mm
- Package depth: 180 mm
- Package height: 385 mm
- Package weight: 2.01 kg
- Package type: Box
Sustainability
- Sustainability compliance: Yes
- Compliance certificates: CE, Federal Communications Commission (FCC)
Packaging content
- Number of cameras: 1

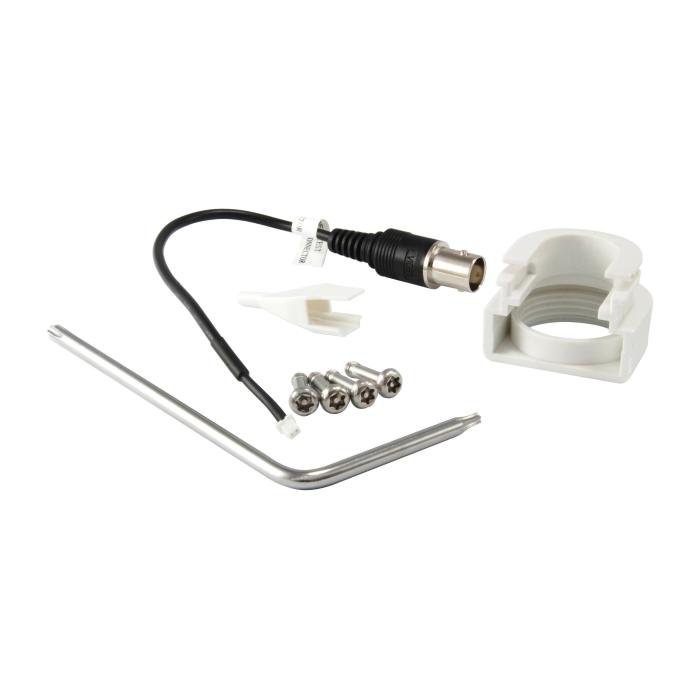

- Screws included: Yes
Logistics data
- Master (outer) cases per pallet (air): 12 pc(s)
- Pallet gross length: 80 cm
- Pallet gross width: 120 cm
- Pallet height (air): 168.8 cm
- Harmonized System (HS) code: 8525890000
- Master (outer) case width: 560 mm
- Master (outer) case length: 405 mm
- Master (outer) case height: 590 mm
- Master (outer) case gross weight: 19 kg
- Products per master (outer) case: 9 pc(s)
