Description

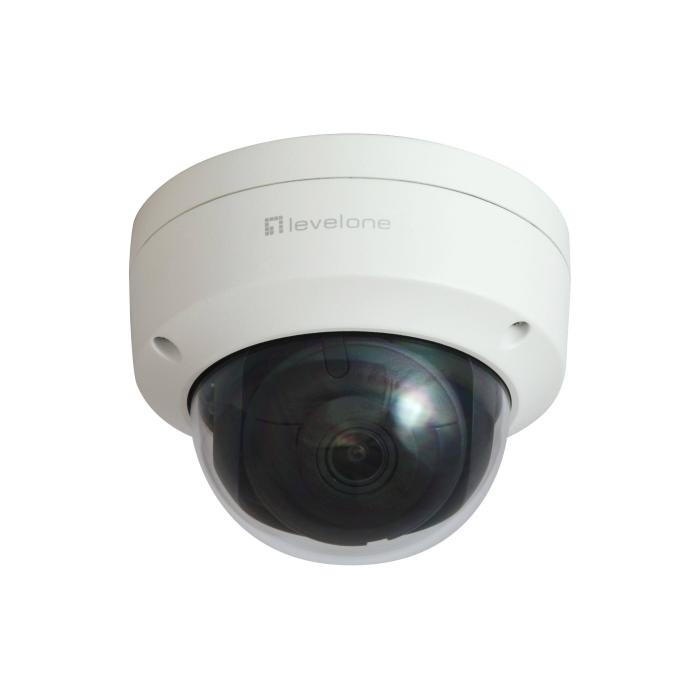

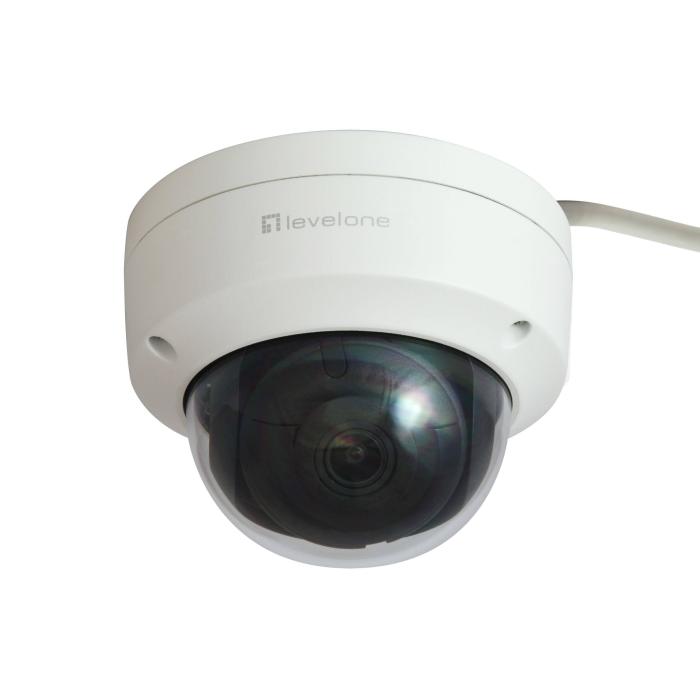

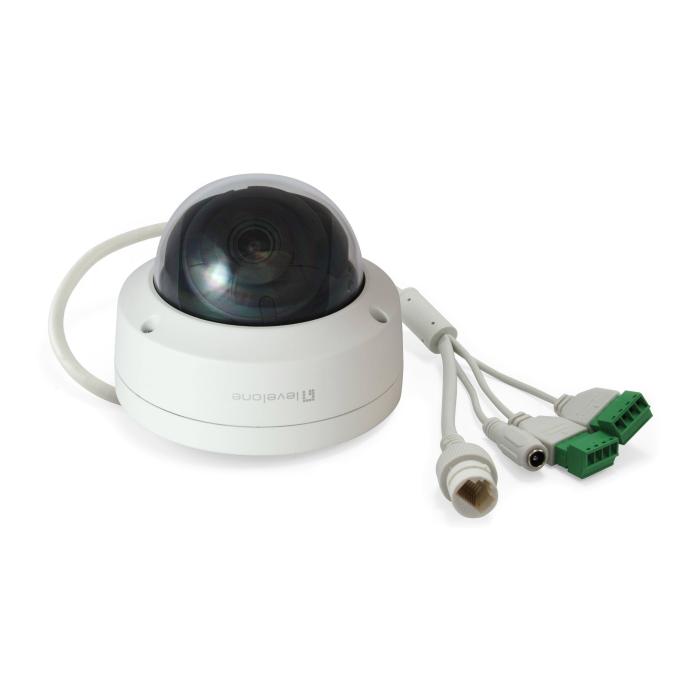

LevelOne FCS-3403 surveillance camera with a dome form factor, designed for ceiling mounting and use both indoors and outdoors, with a resolution of 2680 x 1520 pixels. Its white weatherproof housing meets IP67 and IK10 standards, offering protection against dust, heat, rain and snow, and the infrared cut filter along with a minimum illumination of 0 lx allow images to be captured in low-light conditions. With wired connectivity, the lens provides a diagonal field of view of 102° and a wide dynamic range (WDR) to handle scenes with lighting contrasts, while the shutter speed varies between 1/3 and 1/100000 s to adapt to different situations.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Infrared (IR) cut-off filter: Yes
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: White
- Protection features: Dust resistant, Heat resistant, Rain proof, Snow resistant
- International Protection (IP) code: IP67
- IK code: IK10
- Weatherproof: Yes
- Country of origin: China
Camera
- Minimum illumination: 0 lx
- Lens viewing angle, horizontal: 86°
- Lens viewing angle, vertical: 46°
- Lens viewing angle, diagonal: 102°
- Camera shutter speed: 1/3 - 1/100000 s
Image sensor
- Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Number of lenses: 1
- Focus adjustment: 2.0
- Fixed focal length: 4 mm
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR
Video
- Maximum resolution: 2680 x 1520 pixels
- Total megapixels: 4 MP
- Video formats supported: H.264, H.265, M-JPEG
- Supported graphics resolutions: 320 x 240, 352 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440, 2688 x 1520
- Frame rate: 30 fps
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
- Flip & mirror: Yes
- Portrait mode: Yes
- Privacy masking: Yes
- Time stamp overlay: Yes
- Text caption overlay: Yes
- Image stabilizer: Yes
- Back Light Compensation (BLC): Yes
Audio
- Audio formats supported: G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.1af
- Supported network protocols: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP,IGMP,SNMP
- Wi-Fi: No
- Bluetooth: No
- Number of users: 32 user(s)
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No

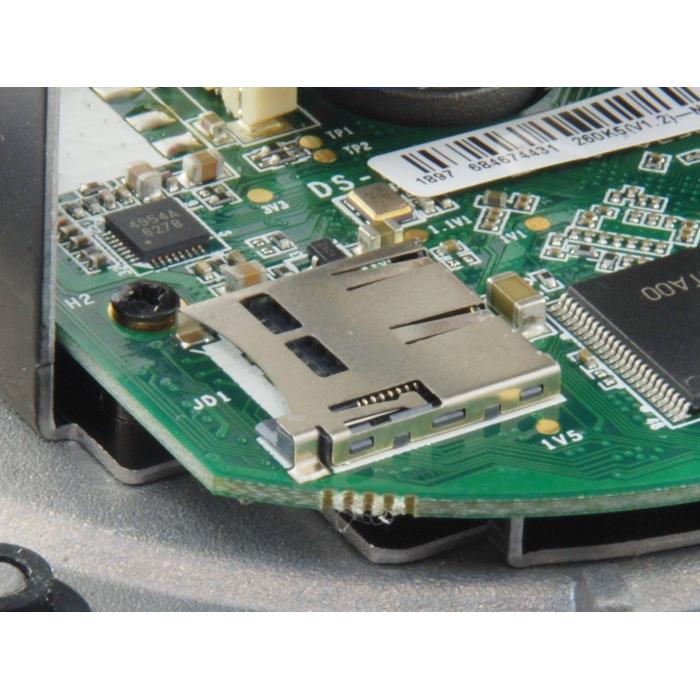

- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
- Maximum memory card size: 128 GB

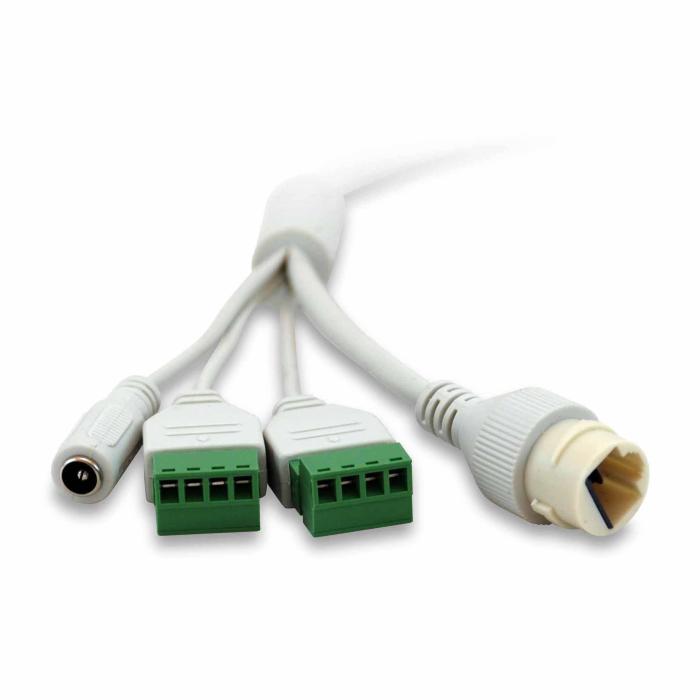

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- Motion sensor: Yes
- Anti-flicker: Yes
- Heartbeat: Yes
- Mirror: Yes
- Digital watermark: Yes
Management features

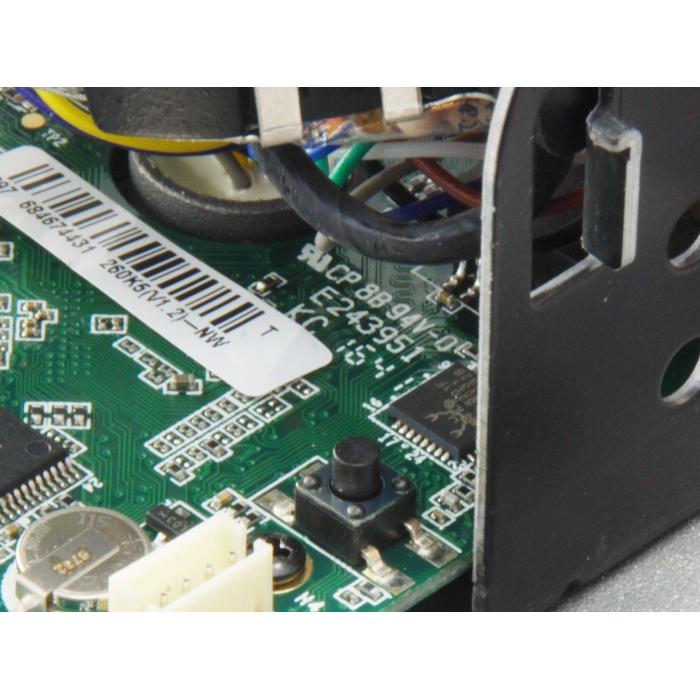

- Reset button: Yes
Power
- Power consumption (max): 8.5 W
- Power consumption (Power over Ethernet (PoE)): 10 W
- DC output voltage: 12
- Power source type: DC, PoE
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Height: 82 mm
- Diameter: 11.1 cm
- Weight: 500 g
Packaging data
- Package width: 134 mm
- Package depth: 134 mm
- Package height: 108 mm
- Package weight: 530 g
- Package type: Box
Sustainability
- Compliance certificates: RoHS
Packaging content
- Number of cameras: 1
- Screws included: Yes
- Resource CD: Yes
Other features
- Browser supported: Internet Explorer 8 above,Safari 8.0
Technical details
- Number of video streams: 3
Logistics data
- Harmonized System (HS) code: 85258900
- Pallet net height: 150 cm
- Pallet net length: 80 cm
- Pallet net width: 120 cm
- Master (outer) case width: 345 mm
- Master (outer) case length: 590 mm
- Master (outer) case height: 568 mm
- Master (outer) case gross weight: 608 g
- Products per master (outer) case: 24 pc(s)
