TP-Link VIGI C340I 6MM security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole

Name: TP-Link VIGI C340I 6MM security camera Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole
Brand: TP-LINK
SKU: 444989
Price: 126.42 EUR
Availability: InStock

More info

Brand: TP-LINK

126.42 €

104.48 € without VAT incl. 21 % VAT

Stock available: 4 units.

Get it on the October 12 / October 13

SKU: 122292 PRC: 444989 EAN: 4897098689011 PN: VIGI C340I 6mm

Description

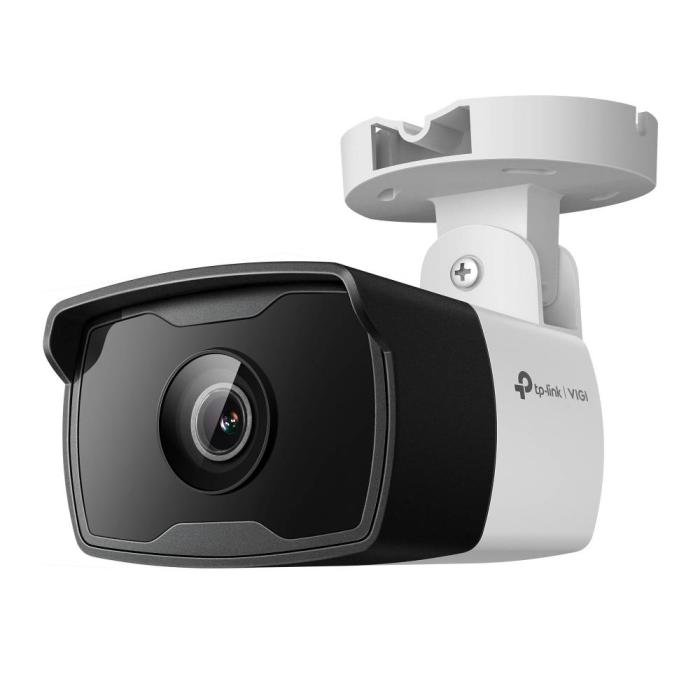

The TP-Link VIGI C340I 6MM surveillance camera is a bullet-type model designed for outdoor installation, in black and white and weighing 200 g. It can be mounted on the ceiling, wall or pole, and its plastic housing has an IP67 rating. It records at 2560 x 1440 pixels resolution and offers a diagonal viewing angle of 56°, with 47.7° horizontal. It features day/night mode and an infrared cut filter, as well as a wide dynamic range WDR to adjust exposure in scenes with contrasting light. Its minimum illumination of 0.01 lx allows it to work in low-light conditions. It includes four privacy masking zones and a shutter speed of 1/3 to 1/10000 s, with tilt and pan ranges of -90 to 90° to orient the lens. Connectivity is wired, providing stable transmission for continuous surveillance.

Specifications

Performance

Type: IP security camera
Placement supported: Outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes

Design

Form factor: Bullet
Mounting type: Ceiling/Wall/Pole
Product colour: Black, White
Housing material: Plastic
International Protection (IP) code: IP67

Camera

Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 47.7°
Lens viewing angle, vertical: 26.5°
Lens viewing angle, diagonal: 56°
Tilt angle range: -90 - 90°
Pan range: -90 - 90°
Camera shutter speed: 1/3 - 1/10000 s
Number of Privacy masking areas: 4

Image sensor

Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Sensor type: CMOS

Lens system

Number of lenses: 1
Detect distance: 120 m
Observe distance: 50 m
Recognize distance: 24 m
Maximum aperture number: 2
Identify distance: 12 m
Fixed focal length: 6 mm

Night vision

Night vision: Yes
Night vision distance: 30 m
LED type: IR
Number of illumination LEDs: 2
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2560 x 1440 pixels
Total megapixels: 4 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 320 x 240, 352 x 288, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported video modes: 240p, 480p, 720p, 1080p, 1280p, 1440p
Frame rate: 30 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate: 256 Kbps - 4 Mbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Digital Wide Dynamic Range (DWDR): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes
3D positioning: Yes

Audio

Signal-to-Noise Ratio (SNR): 52 dB

Network

Ethernet LAN: Yes
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi: No
Bluetooth: No
Number of simultaneous live view channels: 3 channels

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Security

Password protection: Yes
Video motion detection: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Intelligent Video Surveillance (IVS) system features: Region entrance detection, Vehicle detection, Region exiting detection, Crossing line
Mirror: Yes
Password reset via email: Yes
Human and vehicle targets classification: Yes
Digest authentication: Yes
Network access storage (NAS): Yes

Management features

Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection
