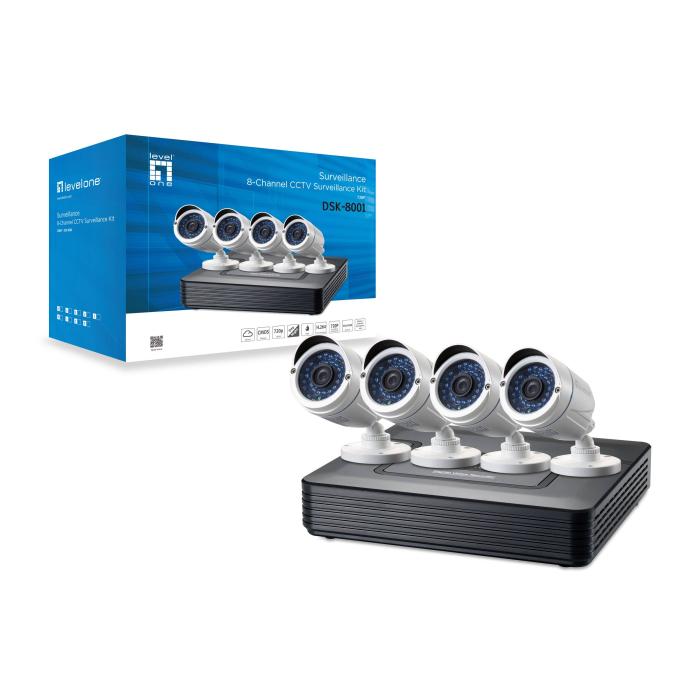

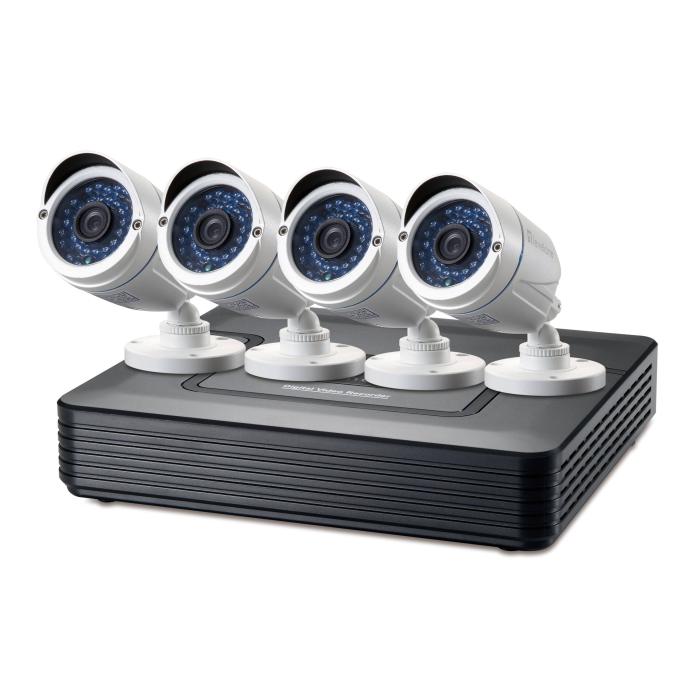

LevelOne DSK-8001 video surveillance kit Wired 8 channels

$177.11

$177.11 without VAT

Amount

Brand: LEVELONE

SKU: 83597 PRC: 271956 EAN: 4015867208335 PN: DSK-8001

Description

LevelOne DSK-8001, Wired, Bullet, BNC, Indoor/outdoor, 18 m, 30 m

Specifications

Camera

Connectivity technology: Wired
Camera included: Yes

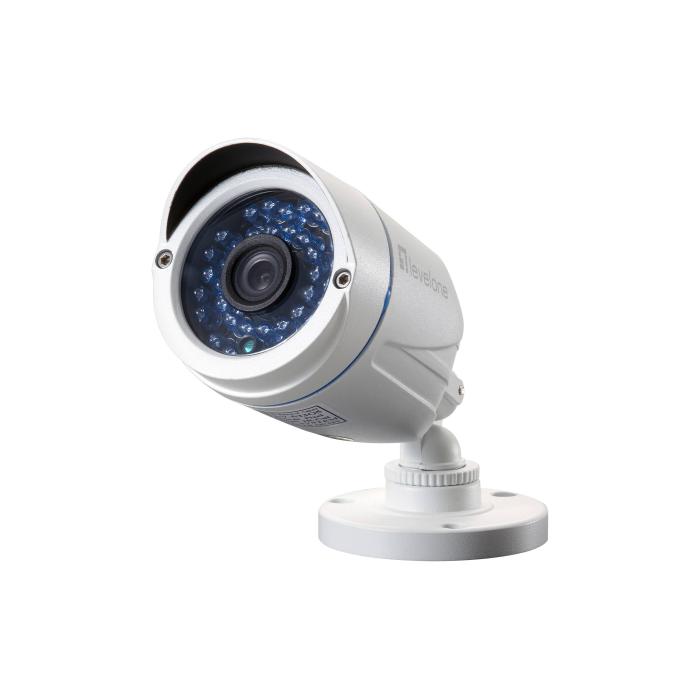

Surveillance camera form factor: Bullet
Built-in microphone: No
Camera interface: BNC
Camera cable length: 18 m
Heat function: No
Night mode: Yes
Placement supported: Indoor/outdoor
Number of cameras: 4
Rotating: No
Night vision distance: 30 m
Sensor type: CMOS
Optical sensor size: 25.4 / 4 mm (1 / 4")
LED type: IR
Viewing angle: 65°
Camera shutter speed: 1/50 - 1/100000 s
International Protection (IP) code: IP66

Recorder

Recorder included: Yes
Channels quantity: 8 channels
Storage media type: HDD
Operating system installed: Linux Embedded
Optical drive included: No
BNC input ports: 8
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
HDD size: 3.5"
Card reader integrated: No
Number of HDDs supported: 1
HDD capacity: 6 TB
Supported network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, UPnP, HTTPS
DC-in jack: Yes
LED indicators: HDD, LAN, Power
Line inputs (RCA): 1
Line outputs (RCA): 1
Maximum HDD capacity: 6 TB
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Playback resolutions supported: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network

Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Fast Ethernet

Power

Power source type: DC
DC output voltage: 12
Camera power consumption (standby): 4 W
Recorder power consumption (typical): 8 W

System requirements

Mobile operating systems supported: Android, iOS

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 10 - 90%

Technical details

Remote viewing: Yes
Video compression formats: H.264, MP4
Audio formats supported: G.711 A-law
Supported video modes: 720p
Web-based management: Yes
Country of origin: China
Product colour: Black, White
Pallet net height: 120 cm
Pallet net length: 80 cm
Pallet net width: 140 cm
Certification: CE

Weight & dimensions

Camera width: 6.4 cm
Camera depth: 16.5 cm
Camera height: 6.4 cm
Recorder width: 22 cm
Recorder depth: 22.2 cm
Recorder height: 4.5 cm
Width: 225 mm
Depth: 430 mm
Height: 221 mm

Packaging data

Package width: 374 mm
Package depth: 154 mm
Package height: 308 mm
Package weight: 4 kg

Packaging content

Power supply included: Yes
Manual: Yes
Cables included: DC

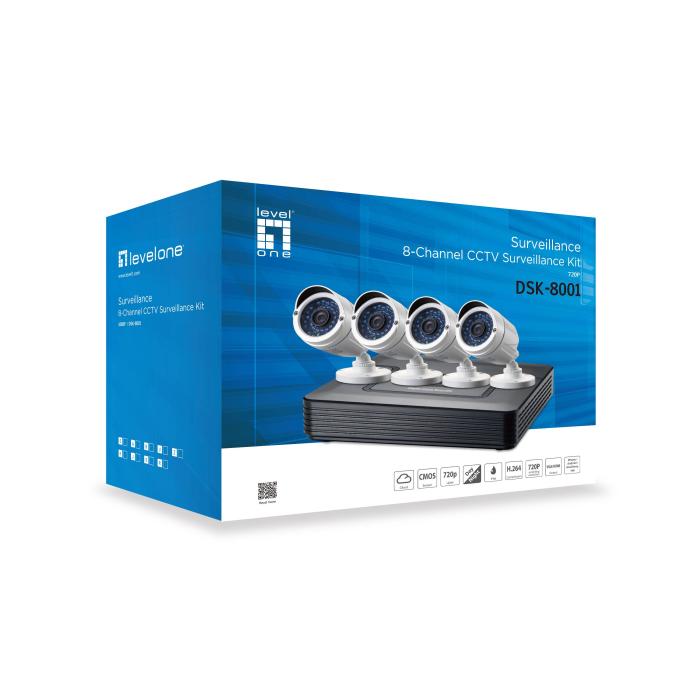

Package type: Box
Quick installation guide: Yes
Software CD: Yes
