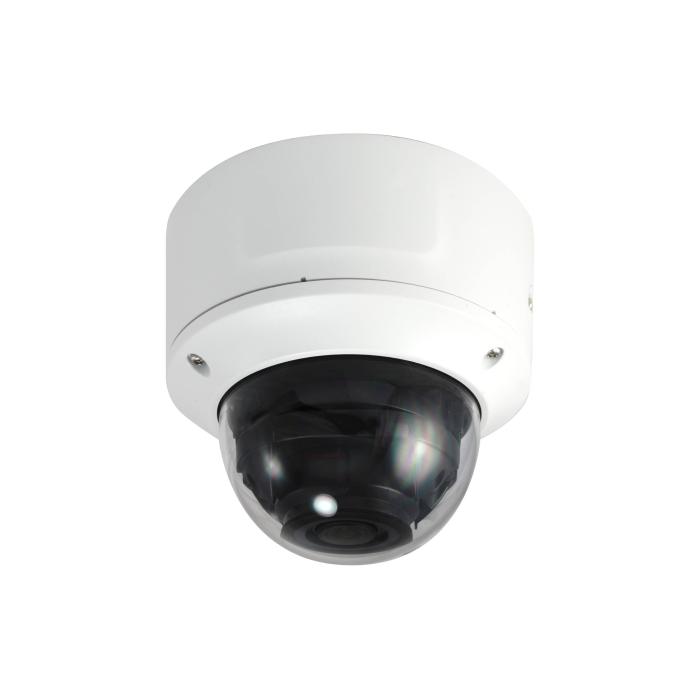

Description
LevelOne FCS-3098 security IP camera with a cushion form factor, designed for ceiling mounting and for both indoor and outdoor use, thanks to its weather resistance with IP67 certification and IK10 impact protection. Its 1/2.5" CMOS sensor offers a maximum resolution of 3840 x 2160 pixels, with an adjustable shutter speed between 1/3 and 1/100000 seconds and an infrared cut-off filter for capture in low-light conditions. The diagonal field of view varies between 38.5 and 146 degrees, with horizontal ranges from 35 to 115 degrees and vertical ranges from 19 to 60 degrees, allowing the framing to be adapted to the area under surveillance.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Infrared (IR) cut-off filter: Yes
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: White
- LED indicators: Power
- International Protection (IP) code: IP67
- IK code: IK10
- Weatherproof: Yes
- Country of origin: China
Camera
- Lens viewing angle, horizontal: 35 - 115°
- Lens viewing angle, vertical: 19 - 60°
- Lens viewing angle, diagonal: 38.5 - 146°
- Camera shutter speed: 1/3 - 1/100000 s
Image sensor
- Optical sensor size: 25.4 / 2.5 mm (1 / 2.5")
- Progressive scan: Yes
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Optical zoom: 4.3x
- Focal length range: 2.8 - 12 mm
- Maximum aperture number: 2
Night vision
- Night vision: Yes
- Night vision distance: 30 m
Video
- Maximum resolution: 3840 x 2160 pixels
- Total megapixels: 8 MP
- Video compression formats: H.264, H.265
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 2944 x 1656, 3840 x 2160
- Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
- Digital Wide Dynamic Range (DWDR): Yes
Audio
- Audio system: 2-way
- Voice codecs: G.711a, G.711u, G.722.1, G.726, MP2L2
Network
- Ethernet LAN: Yes
- Networking standards: IEEE 802.3af
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv
- Wi-Fi: No
- Bluetooth: No
- Quality of Service (QoS) support: Yes
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSDHC, MicroSDXC
- Maximum memory card size: 128 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- Terminal block port: Yes
Security
- Password protection: Yes
- Video motion detection: Yes
- Active tampering alarm: Yes
- IP address filtering: Yes
- Security algorithms: EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS, TLS
- Alert notification type: E-mail, Snapshot alert message, Text alert message
- Intelligent Video Surveillance (IVS) system features: Abandoned object, Crossing line, Face detection, Intrusion, Missing object, Scene change
- Digital watermark: Yes
Management features
- Web-based management: Yes
Power
- Power source type: DC, PoE
- Power consumption (typical): 11.5 W
- Power consumption (max): 12.9 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): 0 - 95 °C
Weight & dimensions
- Width: 133.1 mm
- Depth: 153.4 mm
- Height: 153.4 mm
- Weight: 1.29 kg
Packaging data
- Package width: 174 mm
- Package depth: 173 mm
- Package height: 244 mm
- Package weight: 1.42 kg
- Package type: Box
Sustainability
- Sustainability compliance: Yes
Packaging content
- Number of cameras: 1
- Screws included: Yes
Logistics data
- Master (outer) cases per pallet (air): 18 pc(s)
- Pallet gross length: 80 cm
- Pallet gross width: 120 cm
- Pallet height (air): 152 cm
- Harmonized System (HS) code: 8525890000
- Master (outer) case width: 365 mm
- Master (outer) case length: 372 mm
- Master (outer) case height: 504 mm
- Master (outer) case gross weight: 15 kg
- Products per master (outer) case: 12 pc(s)
