Description

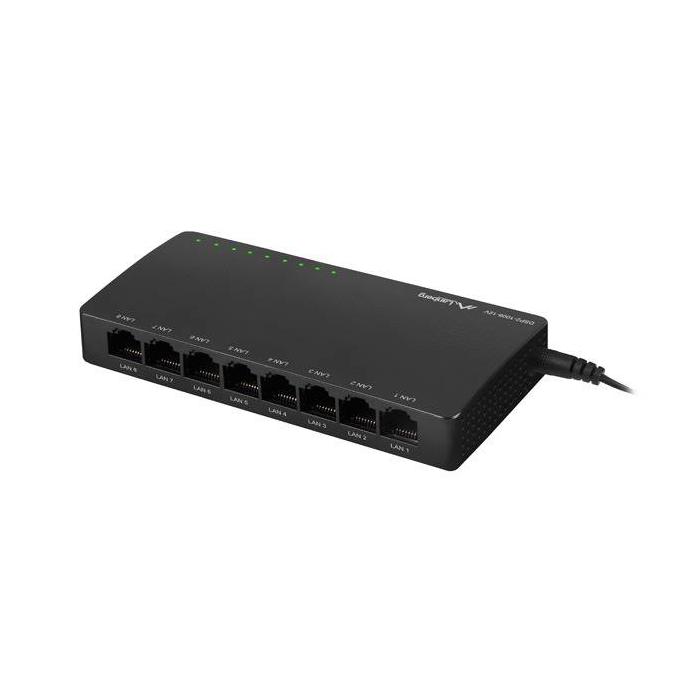

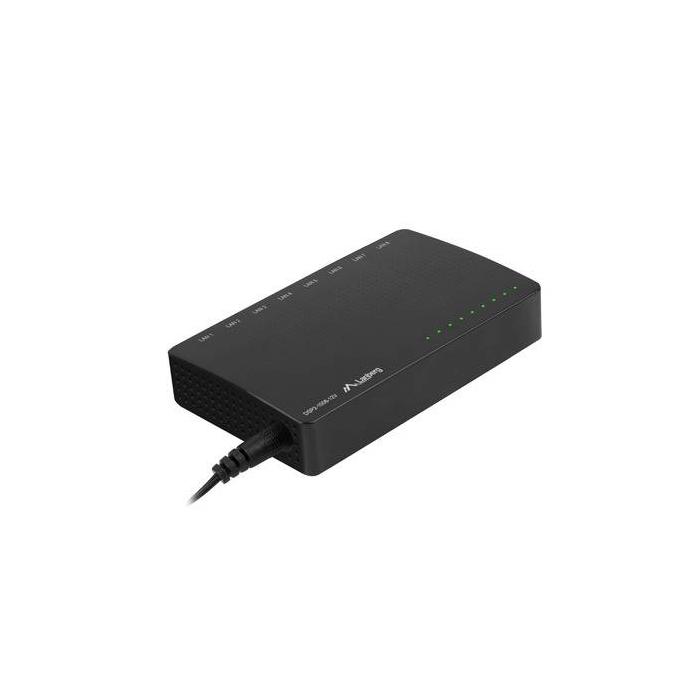

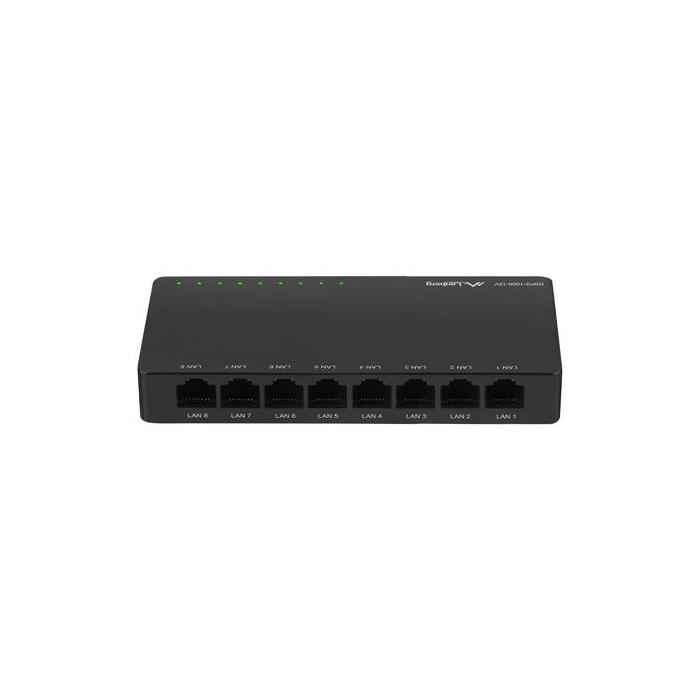

Lanberg DSP2-1008-12V unmanaged network switch with 8 Gigabit Ethernet ports (10/100/1000) in black, ideal for expanding your home or office network by connecting multiple devices at the same time. This model requires no configuration: plug in your RJ-45 cables and it will work automatically thanks to MDI/MDI-X crossover detection. It offers a switching capacity of 1 Gbit/s and a MAC address table of 4000 entries, with auto-learning and auto-aging for stable performance. The housing is made of plastic, includes LED indicators to show the status of each port, and is powered via a DC input socket. Compatible with IEEE 802.3ab, 802.3i, 802.3u, and 802.3x standards, ensuring smooth data transfer between your devices.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fast Ethernet (copper) ports quantity: 8
- Gigabit Ethernet (copper) ports quantity: 8
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- MAC address table: 4000 entries
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 12 V
- Input current: 0.5 A
- Power consumption (max): 4.53 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 85%
Weight & dimensions
- Width: 137 mm
- Depth: 89 mm
- Height: 28 mm
- Weight: 240 g
Certificates
- Certification: CE, RoHS
