Description

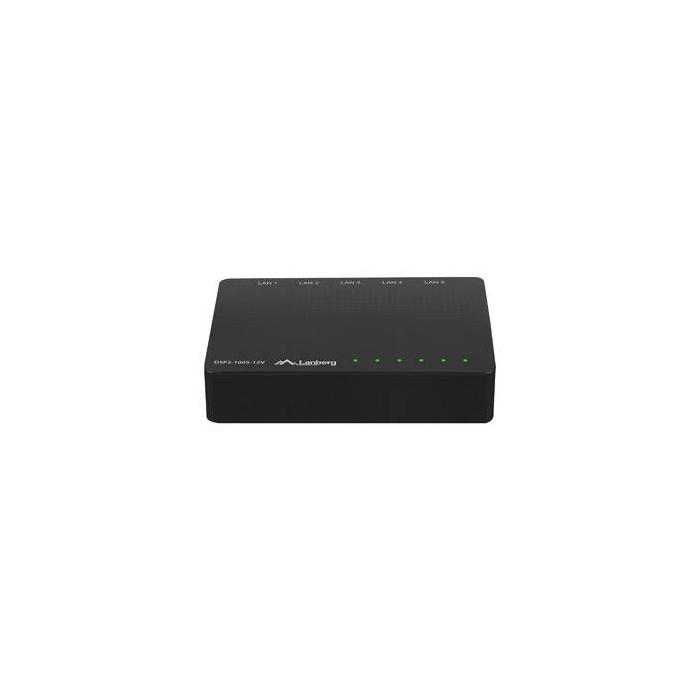

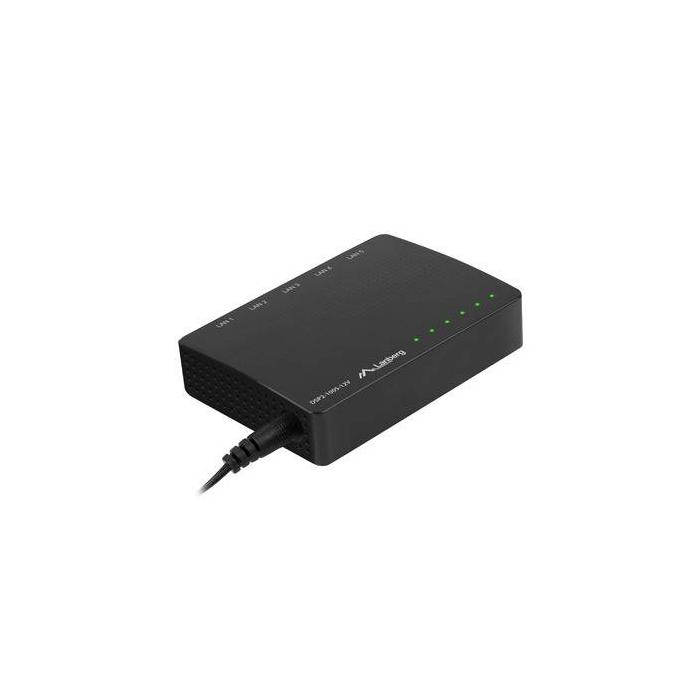

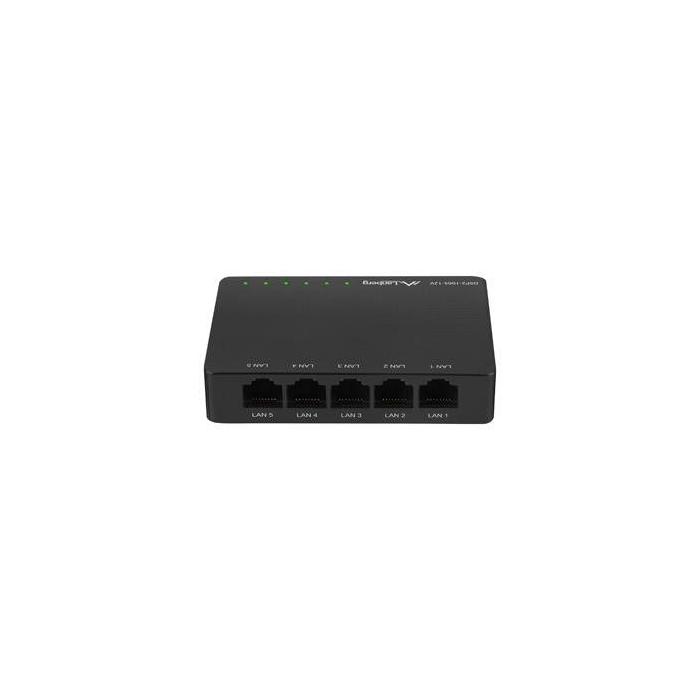

The Lanberg DSP2-1005-12V switch in black is an unmanaged model with five RJ-45 Gigabit Ethernet ports supporting transfer speeds of 10, 100 and 1000 Mbit/s, with a switching capacity of 1 Gbit/s and a MAC address table of 2000 entries. It features auto MDI/MDIX and auto-learning and auto-aging of MAC addresses, as well as compliance with IEEE 802.3ab, 802.3i, 802.3u and 802.3x network standards. Its plastic housing includes LED indicators and is powered via a DC input socket, with a maximum power consumption of 2.64 W. It is not stackable and does not support rack mounting, and lacks support for 10G networks, so it is aimed at basic office or home connections.
Specifications
Management features
- Switch type: Unmanaged
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
Data transmission
- Switching capacity: 1 Gbit/s
- MAC address table: 2000 entries
Design
- Rack mounting: No
- Stackable: No
- Product colour: Black
- Housing material: Plastic
- LED indicators: Yes
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- DC input voltage: 12 V
- Input current: 0.5 A
- Power consumption (max): 2.64 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 85%
Weight & dimensions
- Depth: 93 mm
- Height: 22.3 mm
- Weight: 140 g
- Width: 65.7 mm
Certificates
- Certification: CE, RoHS
