Description

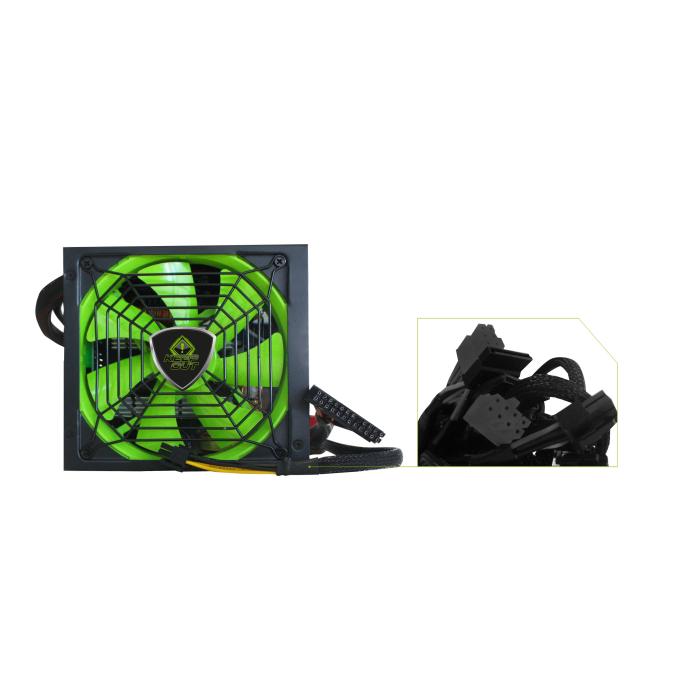

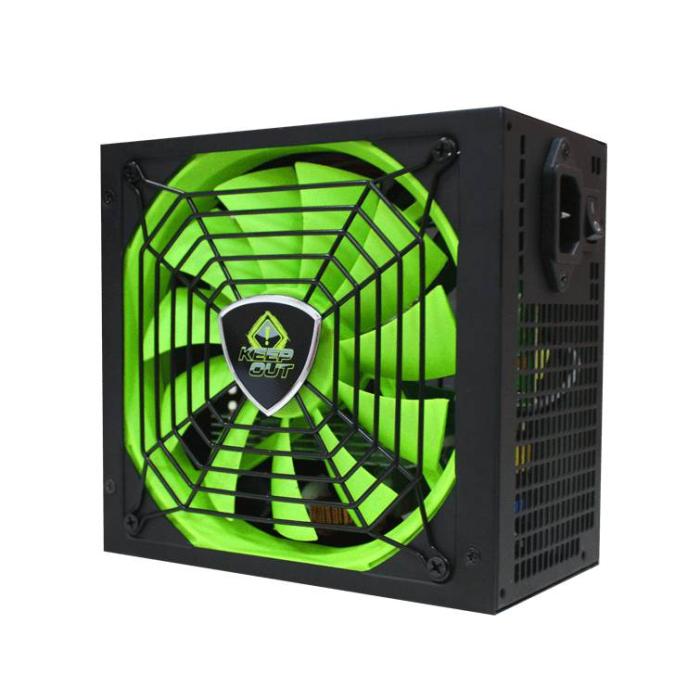

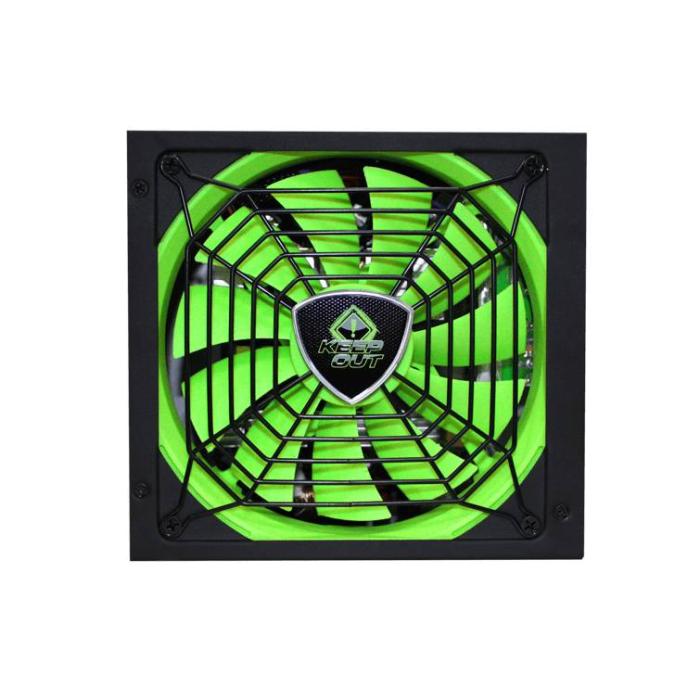

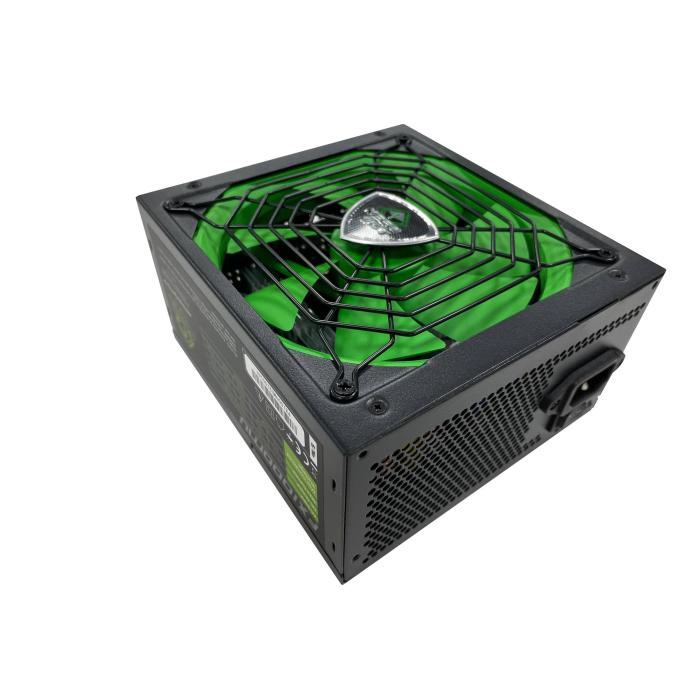

The KeepOut FX1000MU power supply, in a black finish with green details, delivers a total power of 1000 W with 85% efficiency, designed for systems requiring a stable supply. Its main 20+4 pin ATX connector and 4+4 pin CPU connector facilitate installation on current motherboards, while active power factor correction (PFC) optimises consumption in 200-240 V environments. It includes protections against overcurrent, overvoltage, overtemperature, overload, short circuit, and undervoltage, with a maximum output current of 75 A on the +12 V line and a combined power of 900 W on that rail. The input frequency is 50-60 Hz and the input current is 8 A, with additional outputs of 20 A for +3.3 V and +5 V.
Specifications
Power
- Total power: 1000 W
- AC input voltage: 200 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 8 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 900 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 75 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 85%
- Power protection features: Over current, Over power, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Number of SATA power connectors: 6
- Peripheral (Molex) power connectors (4-pin): 3
- PCI Express power connectors (6+2 pin): 4
- CPU power connector (4+4 pin): Yes
- ATX power connector (20+4 pin): Yes
- Cabling type: Semi-Modular
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Noise level: 14 dB
- Mean time between failures (MTBF): 200000 h
Design
- Product colour: Black, Green
- Cooling type: Active
- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
Packaging content
- Cables included: AC
Certificates
- Compliance certificates: EuP
Weight & dimensions
- Weight: 1.88 kg
Packaging data
- Package depth: 225 mm
- Package height: 100 mm
- Package weight: 2.35 kg
- Package type: Box
- Package width: 333 mm
Technical details
- Sustainability certificates: ErP
