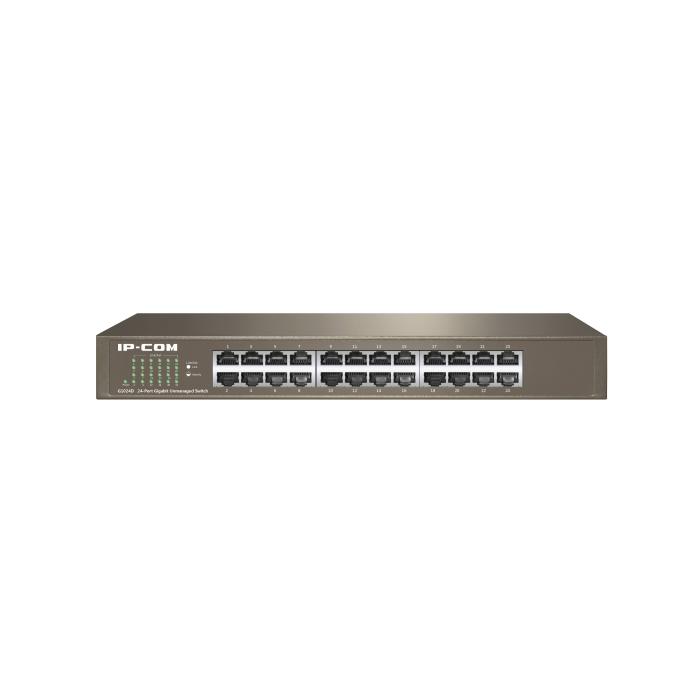

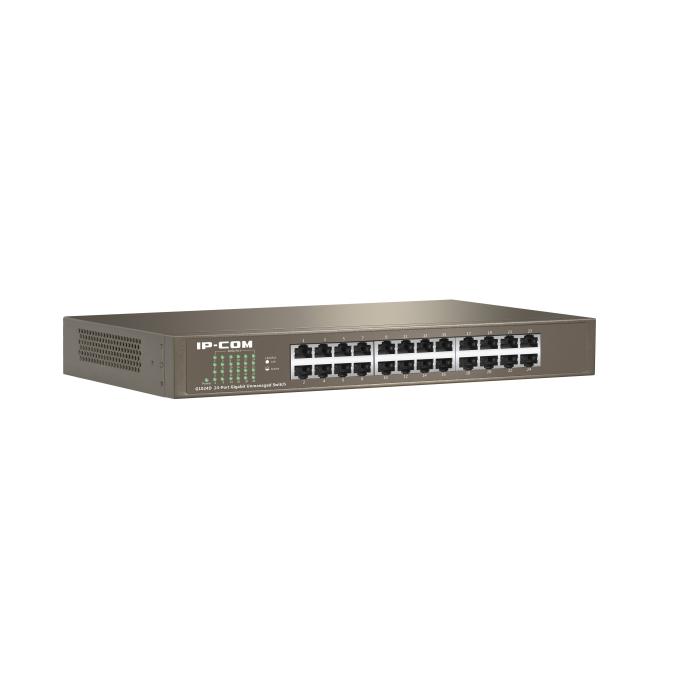

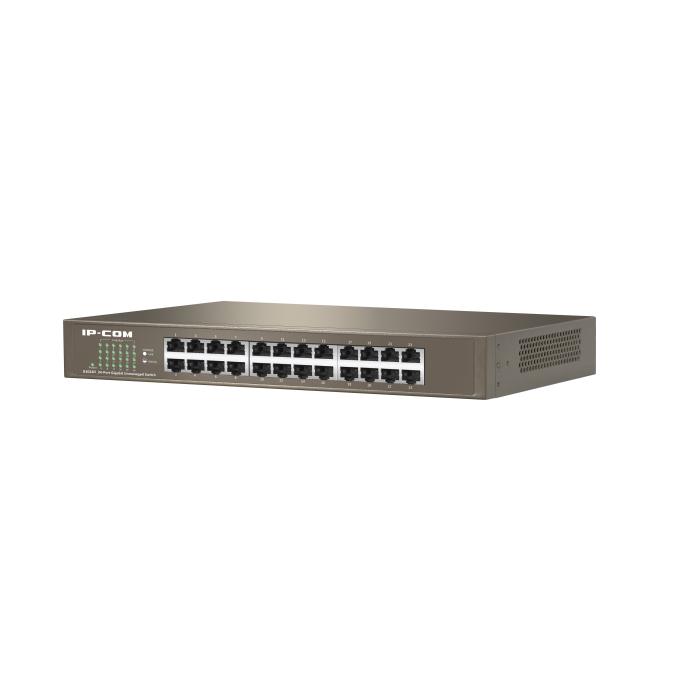

IP-COM Networks G1024D network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Bronze
More info
Brand: IP-COM NETWORKS
82.00 €Stock available: 0 units.
Unavailable
SKU:
100424
PRC:
440068
EAN:
6932392831501
PN:
G1024D
Description
IP-COM Networks G1024D unmanaged L2 switch, 1U form factor and bronze finish, with 24 Gigabit Ethernet RJ-45 ports (10/100/1000) for rack mounting. This unit offers layer 2 switching with store-and-forward architecture, an 8000-entry MAC address table, and a throughput of 35.7 Mpps, plus support for flow control, VLAN, auto-MDI/MDI-X, and full duplex. It includes automatic MAC table learning and aging, conforming to IEEE 802.3, 802.3ab, 802.3u, and 802.3x standards, ideal for expanding your 10/100/1000BASE-T copper cabling network without configuration.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- MAC address auto-learning supported: Yes
- MAC address auto-aging supported: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 48 Gbit/s
- Throughput: 35.7 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
Design
- Rack mounting: Yes
- Stackable: No
- Form factor: 1U
- Product colour: Bronze
- Housing material: Metal
- LED indicators: Link, PoE, Power
Performance
- Fanless: Yes
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 13 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 294 mm
- Depth: 178 mm
- Height: 44 mm
Packaging content
- Manual: Yes
Packaging data
- Package type: Box
Certificates
- Certification: FCC, CE, RoHS
