Description

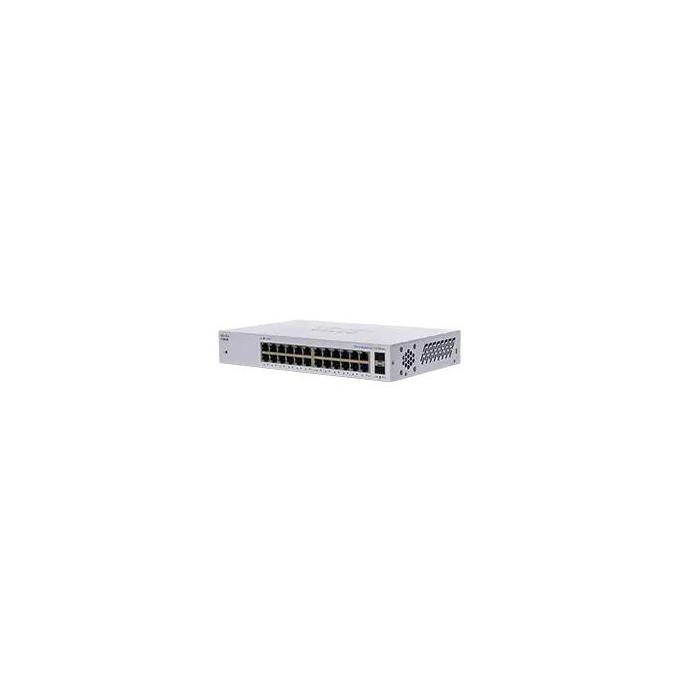

Cisco CBS110 unmanaged L2 switch with 1U form factor and grey finish, designed to expand your network with 24 Gigabit Ethernet RJ-45 ports and 2 SFP combo ports. The 48 Gbit/s switching capacity and 8192-entry MAC address table enable efficient traffic management, with support for Quality of Service (QoS), flow control and head-of-line blocking prevention. Features include Auto MDI/MDI-X, half-duplex and full-duplex transmission, and compliance with IEEE 802.1p, 802.3, 802.3ab, 802.3az, 802.3u, 802.3x and 802.3z standards for reliable connectivity in 10BASE-T, 100BASE-TX and 1000BASE-T environments. This unmanaged model offers a simple, plug-and-play solution, ideal for integrating network devices without prior configuration.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 24
- Combo SFP ports quantity: 2
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Head-of-line (HOL) blocking: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
Data transmission
- Switching capacity: 48 Gbit/s
- Forwarding rate: 35.7 Mpps
- MAC address table: 8192 entries
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 9216
Security
- Queue scheduling algorithms: Weighted Round Robin (WRR)
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Grey
- LED indicators: Yes
Performance
- Built-in processor: Yes
- Processor frequency: 400 MHz
- Internal memory: 64 MB
- Flash memory: 8 MB
- Mean time between failures (MTBF): 524296 h
Power
- Power supply included: Yes
- Redundant power supply (RPS) support: No
- Number of power supply units: 1
- AC input voltage: 110 - 240 V
- AC input frequency: 50 - 60 Hz
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 55.75 BTU/h
Weight & dimensions
- Width: 279 mm
- Depth: 170 mm
- Height: 44 mm
- Weight: 1.56 kg
Packaging content
- Quick start guide: Yes
- Rack mount kit: Yes
Sustainability
- Sustainability compliance: Yes
Certificates
- Compliance certificates: CE
- Certification: UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Logistics data
- Harmonized System (HS) code: 85176990
