Description

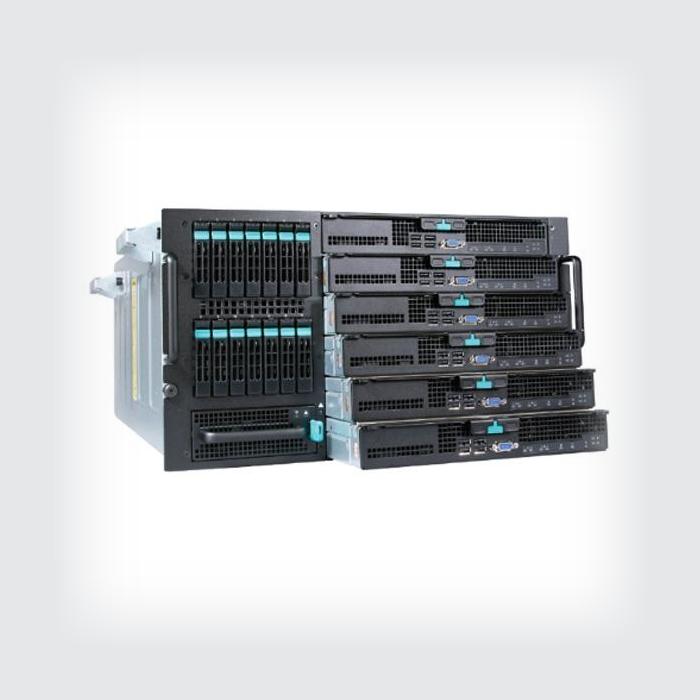

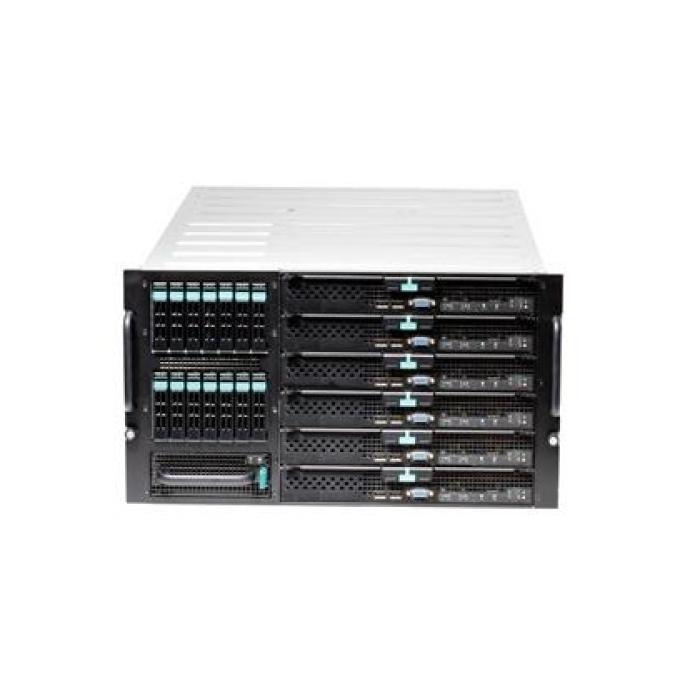

Intel MFSYS25V2 rack-mount server case in black and grey finish, designed for 6U rack mounting and aimed at small and medium-sized businesses. This metal chassis supports up to fourteen 2.5-inch hot-swap storage bays, allowing drives to be replaced without interrupting service. It includes a 1000 W power supply with redundancy support and redundant fans, ensuring continuous operation in critical environments. With dimensions of 261.6 x 444.5 x 721.4 mm, it provides a robust solution for housing multiple HDDs in a compact space.
Specifications
Design
- Material: Metal
- Form factor: Rack
- Type: Server
- Product colour: Black, Grey
- Number of 2.5" bays: 14
- Number of storage drives supported: 14
- Rack mounting: Yes
- Rack capacity: 6U
Power supply
- Power supply included: Yes
- Power supply: 1000 W
- Redundant power supply (RPS) support: Yes
- Redundant fans: Supported
Storage
- Supported HDD sizes: 2.5"
- Number of HDDs supported: 14
- Hot-swap: Yes
Technical details
- Target market: Small and Medium Business
- Status: Discontinued
- Backplanes: Included; Integrated shared storage through a SAN fabric; includes a storage controller with a redundant option available
Weight & dimensions
- Width: 444.5 mm
- Depth: 444.5 mm
- Height: 721.4 mm
- Chassis dimensions: 261.6 x 444.5 x 721.4 mm (10.3 x 17.5 x 28.4")
Logistics data
- Harmonized System (HS) code: 8471500150
Other features
- Extended warranty available for purchase (select countries): Yes
- Launch date: Q1'11
- Redundant fans support: Yes
- Power supply type: AC
- Supported HDD interfaces: SAS, Serial ATA, Serial ATA II
- Networking features: Gigabit Ethernet
- CPU configuration (max): 2
- Export Control Classification Number (ECCN): 5A992C
- Commodity Classification Automated Tracking System (CCATS): G135162
- ARK ID: 54648
- Product family: Legacy server/workstation chassis
- Product series: Intel modular server chassis
