Description

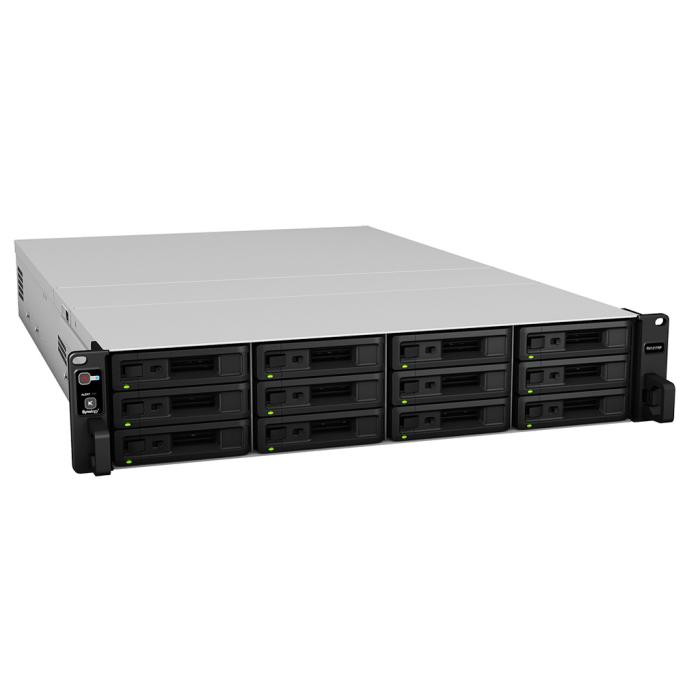

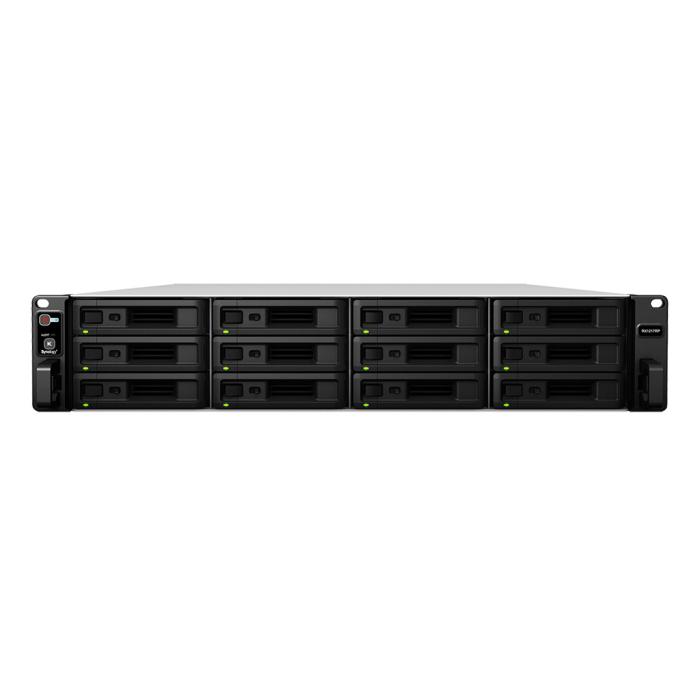

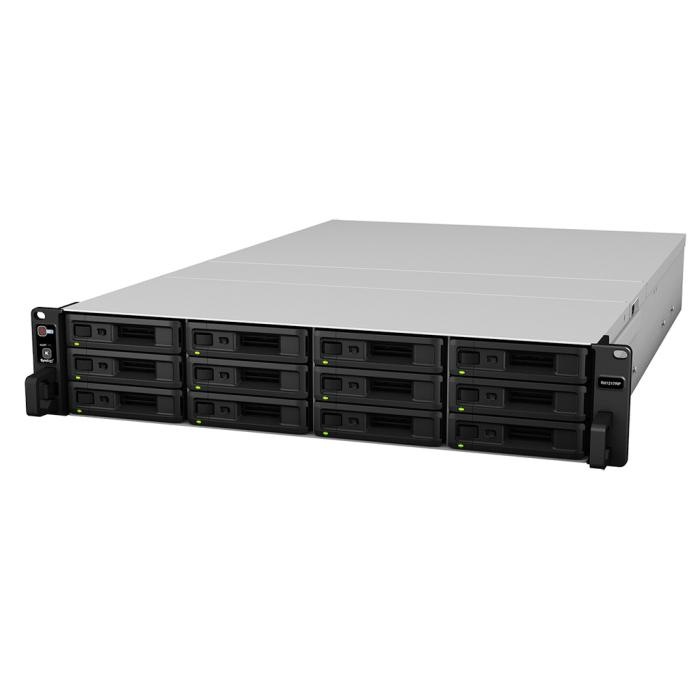

The Synology RX1217RP expansion unit, in 2U rack-mount format with a black and grey finish, supports up to 12 hot-swap bays for HDD or SSD drives with a SATA interface, allowing a maximum storage capacity of 168 TB to be achieved. With a transfer speed of 6 Gbit/s and InfiniBand connectivity, this device offers efficient expansion for your system, compatible with the RS3617xs model. Equipped with three fans and support for redundant power supply, it maintains stable operation with a noise level of 54.2 dB, designed for professional rack environments.
Specifications
Storage
- Storage drives installed: No
- Installed storage drive type: No
- Total installed storage capacity: 0 TB
- Supported storage drive types: HDD & SSD
- Number of storage drives supported: 12
- Maximum supported storage capacity: 168 TB
- Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III
- Data transfer rate: 6 Gbit/s
- Hot-swap drive bays: Yes
Ports & interfaces
- USB connectivity: No
- InfiniBand: Yes
Design
- Chassis type: Rack (2U)
- Product colour: Black, Grey
- Number of fans: 3 fan(s)
- Noise level: 54.2 dB
- Compatible products: Synology RS3617xs
- Certification: FCC A, CE A, BSMI A
Power
- Power supply unit (PSU) capacity: 500 W
- Number of power supply units: 2
- Redundant power supply (RPS) support: Yes
- Power consumption (typical): 71.32 W
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
Weight & dimensions
- Width: 430.5 mm
- Depth: 692 mm
- Height: 88 mm
- Weight: 13.4 kg
Packaging content
- Cables included: AC, InfiniBand
Operational conditions
- Operating temperature (T-T): 5 - 35 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 60 °C
Other features
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 84717020
