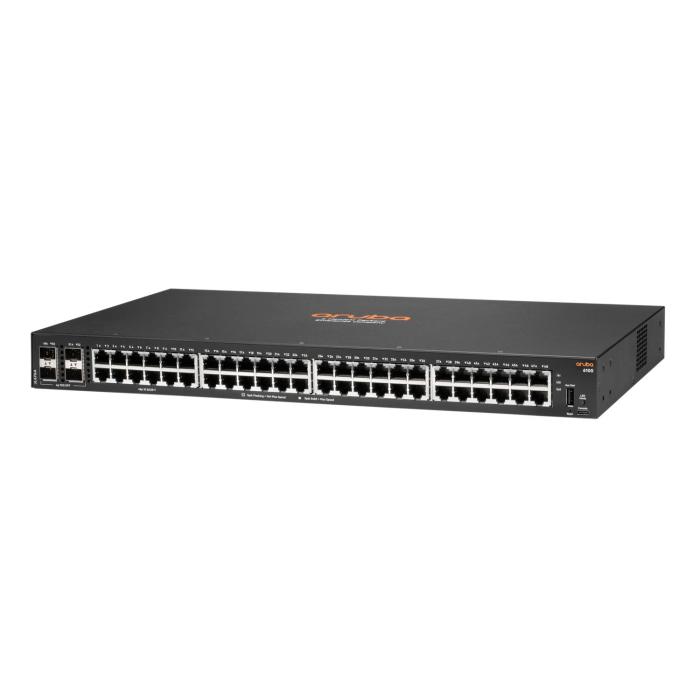

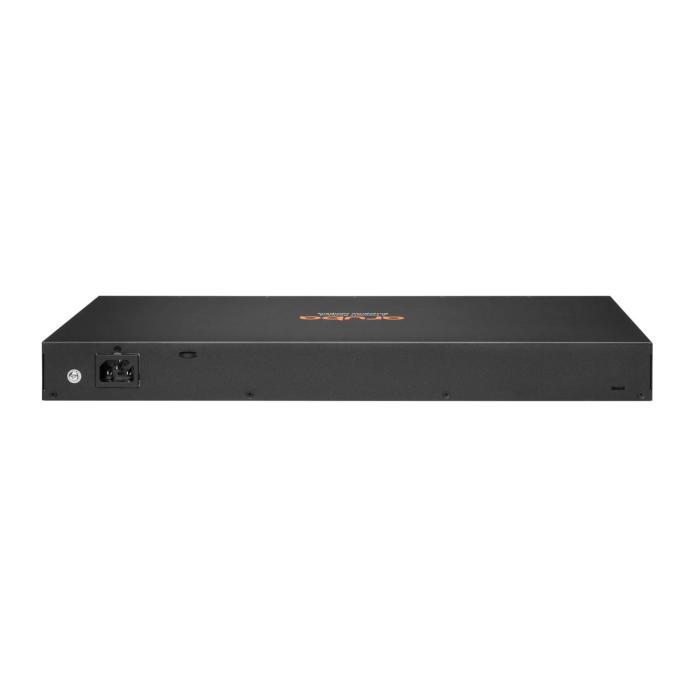

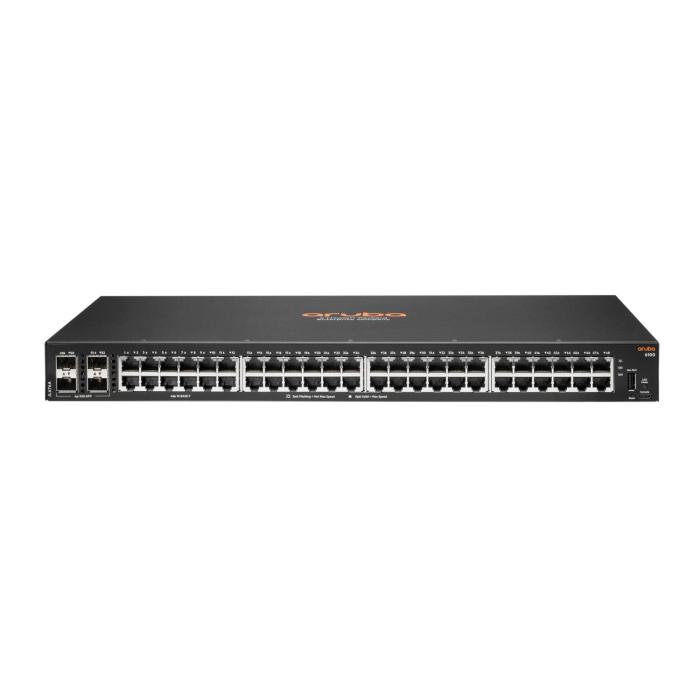

Hewlett Packard Enterprise Aruba 6100 48G 4SFP+ Managed L3 Gigabit Ethernet (10/100/1000) 1U Black
Hewlett Packard Enterprise Aruba 6100 48G 4SFP+, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
1,788.50 €
1,478.10 €
without VAT
Stock available: 14 units.
Get it
on the
September 24
/
September 25
SKU:
88696
PRC:
328892
EAN:
190017348247
PN:
jl676a#abb
Description
The Aruba 6100 managed switch from Hewlett Packard Enterprise, in black, offers 48 Gigabit Ethernet (10/100/1000) ports and 4 SFP+ slots for links of up to 10 Gbps. Its L3 layer architecture and VLAN support allow you to segment the network and route traffic between subnets with quality of service (QoS). It incorporates connection features such as port mirroring, link aggregation, spanning tree protocol and flow control, as well as Jumbo Frames compatibility. It reaches a switching capacity of 176 Gbit/s and a throughput of 98.6 Mpps, with latencies of 1.9 µs at 1 Gbps and 1.8 µs at 10 Gbps. It manages a MAC address table of 8192 entries. With a weight of 3.4 kg and dimensions of 442 x 44 x 247 mm, it comes in a 1U format for rack mounting.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
Network
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 176 Gbit/s
- Throughput: 98.6 Mpps
- MAC address table: 8192 entries
- Latency (1 Gbps): 1.9 µs
- Latency (10 Gbps): 1.8 µs
- Jumbo frames support: Yes
- Packet buffer memory: 12.38 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- Airflow direction: Side-to-side airflow
Performance
- Virtual stacking (units): 16
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 1016 MHz
- Memory type: DDR3-SDRAM
- Internal memory: 4096 MB
- Flash memory: 16 MB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 44.2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 90%
Weight & dimensions
- Width: 442 mm
- Depth: 247 mm
- Height: 44 mm
- Weight: 3.4 kg
