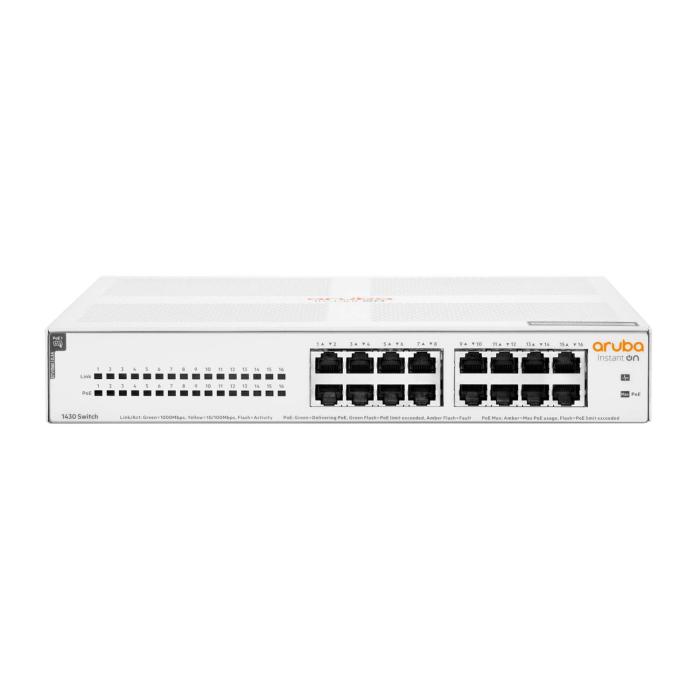

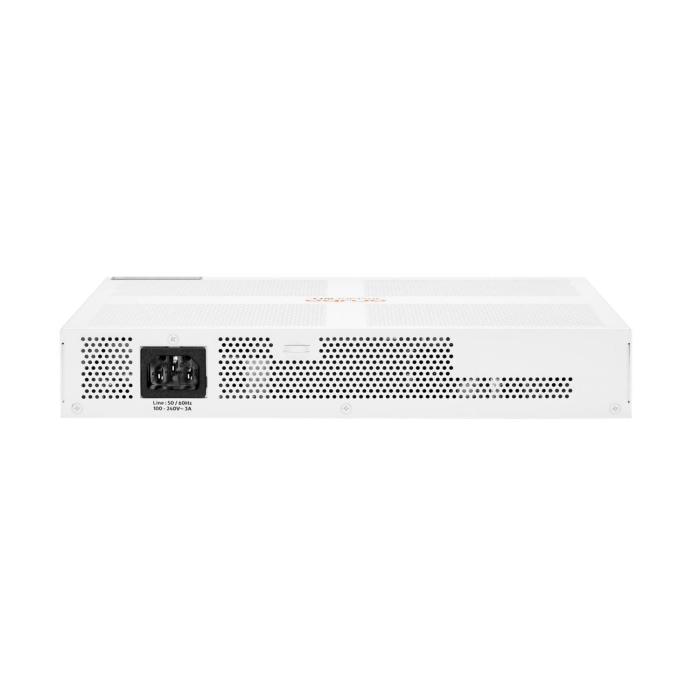

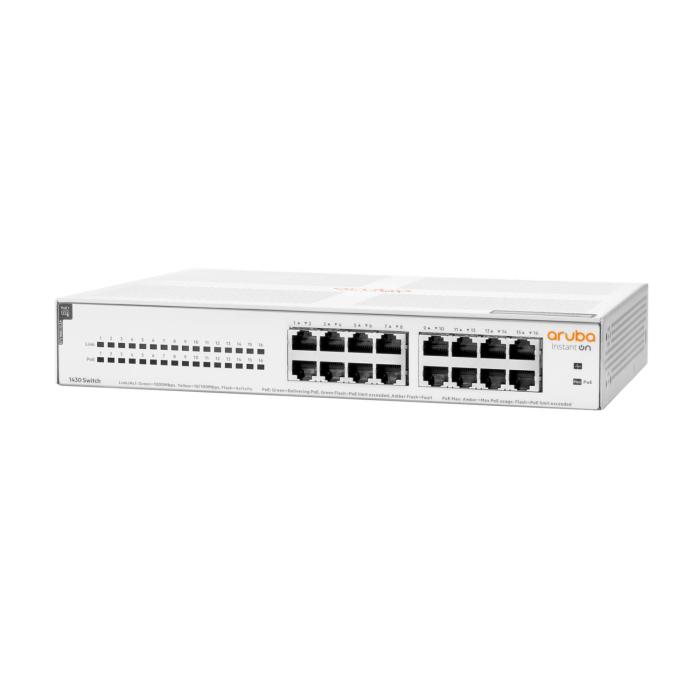

Hewlett Packard Enterprise Aruba Instant On 1430 16G Class4 PoE 124W Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Hewlett Packard Enterprise Aruba Instant On 1430 16G Class4 PoE 124W, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
256,00 €Stock available: 0 units.
Unavailable
SKU:
94715
PRC:
381968
EAN:
190017602202
PN:
R8R48A#ABB
Description
The Hewlett Packard Enterprise Aruba Instant On 1430 16G unmanaged switch, in white, connects your network with 16 RJ-45 Gigabit Ethernet 10/100/1000 Mbit/s ports. It offers a switching capacity of 32 Gbit/s and a throughput of 23.8 Mpps, with a MAC address table of 8192 entries and 2 MB of packet buffer memory. It incorporates quality of service (QoS), auto-sensing, full duplex, link aggregation and Jumbo Frames support, as well as 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling technology and a latency of 2.7 µs at 10-100 Mbps. Its network standards cover IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3az and 802.3i, which allows compatible devices to be powered via PoE. With dimensions of 260 x 44 x 275 mm (width x height x depth) and a weight of 2.09 kg, it fits into a 1U rack unit.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Full duplex: Yes
- Link aggregation: Yes
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Auto-sensing: Yes
Data transmission
- Switching capacity: 32 Gbit/s
- Throughput: 23.8 Mpps
- MAC address table: 8192 entries
- Latency (10-100 Mbps): 2.7 µs
- Latency (1 Gbps): 1.8 µs
- Jumbo frames support: Yes
- Packet buffer memory: 2 MB
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: White
Power
- Power source: AC
- Power supply included: Yes
- Number of power supply units: 1
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 147 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 124 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 90%
Weight & dimensions
- Width: 260 mm
- Depth: 275 mm
- Height: 44 mm
- Weight: 2.09 kg
