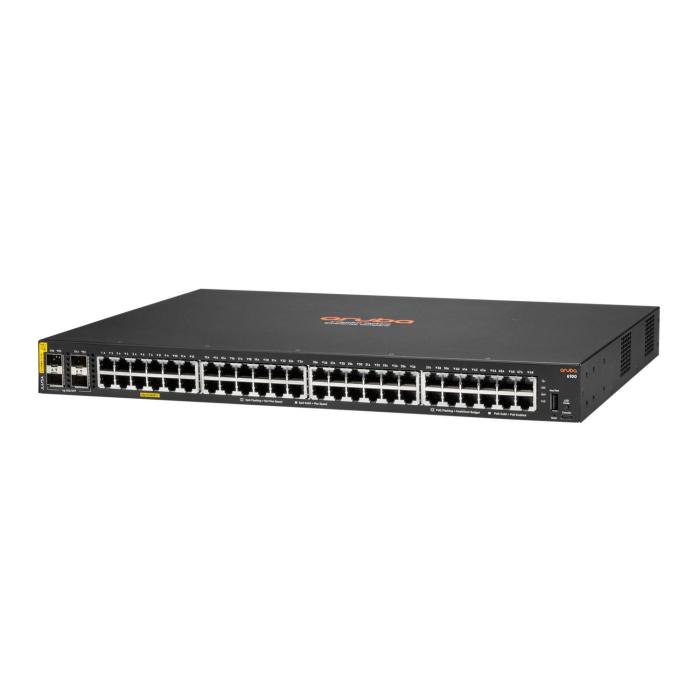

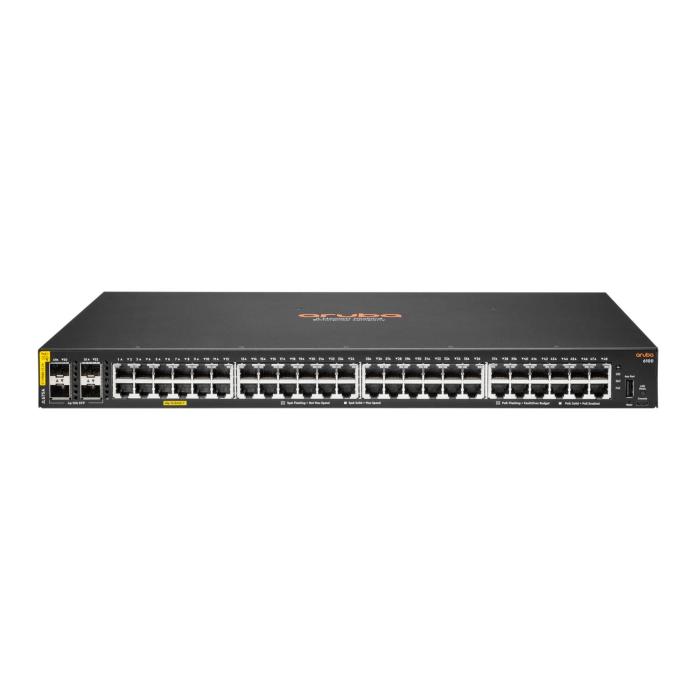

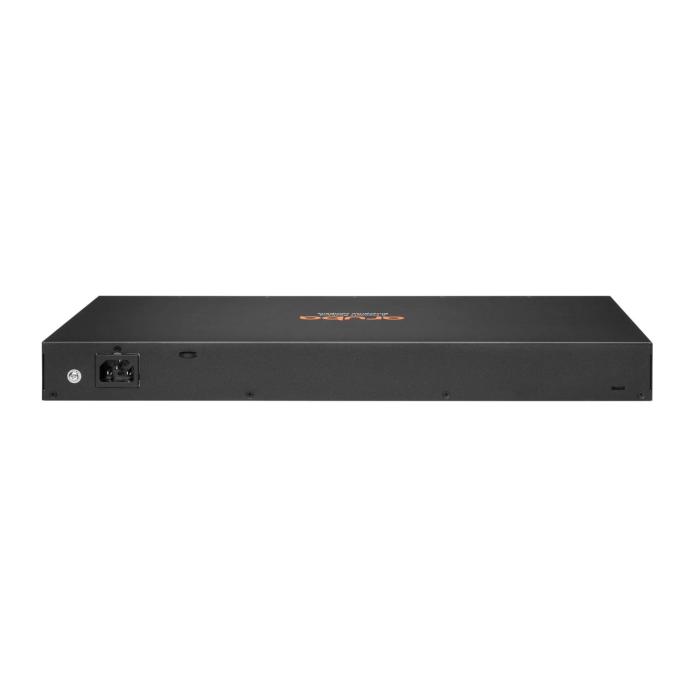

Hewlett Packard Enterprise Aruba 6100 48G Class4 PoE 4SFP+ 370W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Hewlett Packard Enterprise Aruba 6100 48G Class4 PoE 4SFP+ 370W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
2,136,00 €Stock available: 0 units.
Unavailable
SKU:
112444
PRC:
333102
EAN:
190017347974
PN:
jl675a
Description
The Aruba 6100 managed switch from Hewlett Packard Enterprise, in black, offers Gigabit Ethernet connectivity with 48 RJ-45 ports and 4 SFP+ slots for high-speed links. Its L3 layer and 176 Gbit/s switching capacity allow corporate network traffic to be managed reliably, while 98.6 Mpps throughput and an 8192-entry MAC address table respond to demanding environments. It includes 10G support, VLAN, flow control, spanning tree protocol, link aggregation and port mirroring to segment and monitor the network. Quality of service (QoS) and Jumbo Frames support help prioritise critical applications and carry larger frames. Its latencies of 1.9 µs at 1 Gbps and 1.8 µs at 10 Gbps keep response times agile. Weighing 5 kg and measuring 442 x 44 x 305 mm (width x height x depth), it fits into a 1U rack.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 48
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
Network
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 176 Gbit/s
- Throughput: 98.6 Mpps
- MAC address table: 8192 entries
- Latency (1 Gbps): 1.9 µs
- Latency (10 Gbps): 1.8 µs
- Jumbo frames support: Yes
- Packet buffer memory: 12.38 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Authentication: MAC-based authentication
- Authentication type: RADIUS,TACACS+
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- Airflow direction: Side-to-side airflow
Performance
- Virtual stacking (units): 16
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 1016 MHz
- Memory type: DDR3-SDRAM
- Internal memory: 4096 MB
- Flash memory: 16 MB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 45 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 90%
- Operating altitude: 0 - 3000 m
Weight & dimensions
- Width: 442 mm
- Depth: 305 mm
- Height: 44 mm
- Weight: 5 kg
