Description

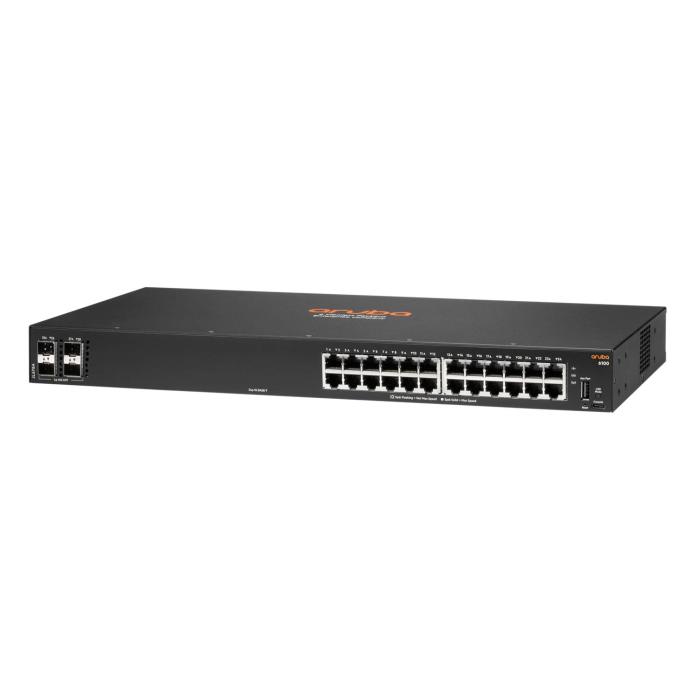

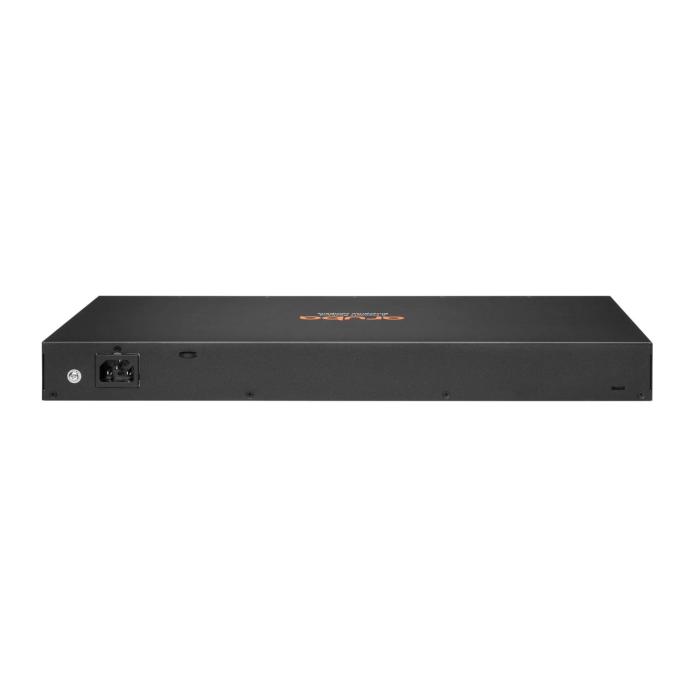

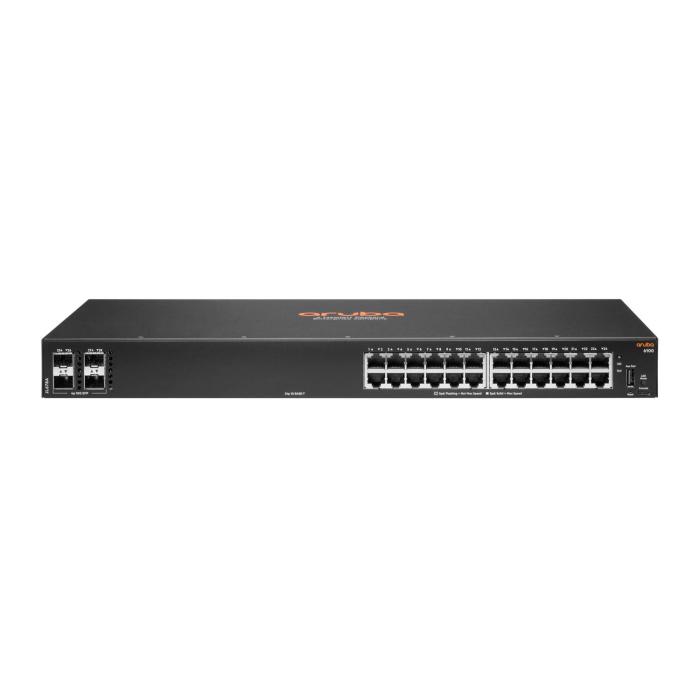

The HPE Aruba Networking 6100 managed switch is an L3 layer device in black, with a 1U form factor and dimensions of 442 x 44 x 201 mm (width x height x depth). It features 24 Gigabit Ethernet (10/100/1000) ports and 4 slots for SFP+ modules, plus a USB console port. It offers a switching capacity of 128 Gbit/s and a throughput of 95.2 Mpps, with latencies of 1.5 µs at 1 Gbps and 1.8 µs at 10 Gbps. It supports 10G, VLAN, flow control, link aggregation, port mirroring and spanning tree protocol. It also supports QoS and Jumbo Frames to optimise network traffic. Weighing 2.6 kg, it is designed for deployment in enterprise and professional environment racks.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 4
- Console port: USB
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 128 Gbit/s
- Throughput: 95.2 Mpps
- MAC address table: 8192 entries
- Latency (1 Gbps): 1.5 µs
- Latency (10 Gbps): 1.8 µs
- Jumbo frames support: Yes
- Packet buffer memory: 12.38 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- Authentication: MAC-based authentication
- Authentication type: RADIUS, TACACS+
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
- Airflow direction: Side-to-side airflow
Performance
- Virtual stacking (units): 16
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 1016 MHz
- Memory type: DDR3-SDRAM
- Internal memory: 4096 MB
- Flash memory: 16 MB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 33 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 90%
Weight & dimensions
- Width: 442 mm
- Depth: 201 mm
- Height: 44 mm
- Weight: 2.6 kg
Logistics data
- Harmonized System (HS) code: 85176990
