Hewlett Packard Enterprise Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Hewlett Packard Enterprise Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
1,207.36 €
997.82 €
without VAT
Stock available: 1 ud.
Get it
on the
September 24
/
September 25
SKU:
88090
PRC:
321756
EAN:
190017348964
PN:
jl679a#abb
Description

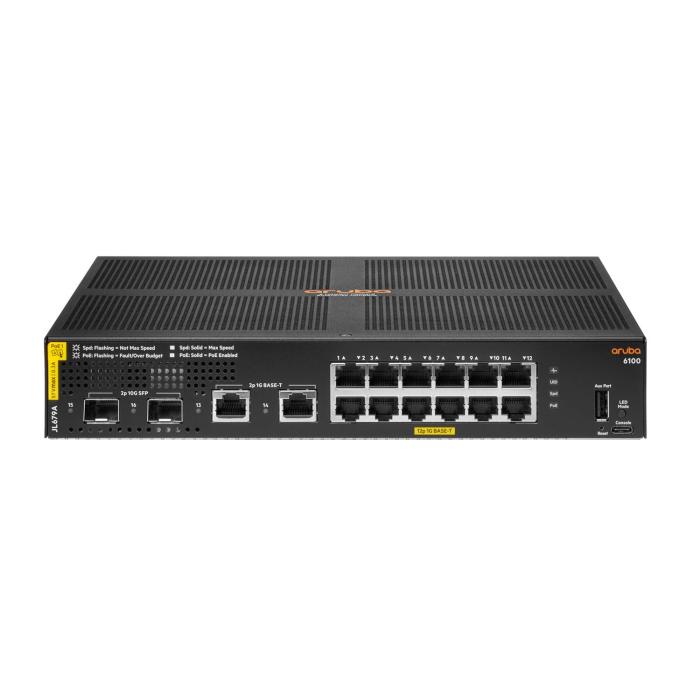

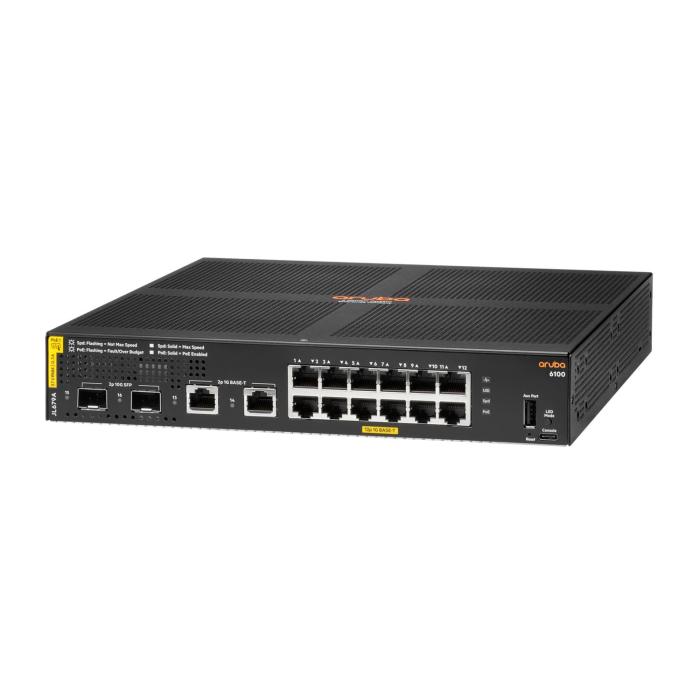

The Aruba 6100 managed switch from Hewlett Packard Enterprise, in black, is designed to serve enterprise networks that need traffic control and segmentation. It offers 12 Gigabit Ethernet (10/100/1000) ports and 2 SFP+ slots with 10G support, plus a USB console port for management. Its L3 layer and advanced management allow VLAN configuration, port mirroring, link aggregation and spanning tree protocol, as well as applying quality of service (QoS) and flow control. With dimensions of 254 x 44 x 255 mm (width x height x depth) and a weight of 2.8 kg, it fits into communications cabinets in 1U format. Switching capacity reaches 68 Gbit/s and throughput reaches 45.1 Mpps, with a latency of 2.3 µs at 1 Gbps and 2.6 µs at 10 Gbps. It also includes support for Jumbo Frames, useful in environments with large frames.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 12
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP+ module slots quantity: 2
- Console port: USB
Network
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE
- 10G support: Yes
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 68 Gbit/s
- Throughput: 45.1 Mpps
- MAC address table: 8192 entries
- Latency (1 Gbps): 2.3 µs
- Latency (10 Gbps): 2.6 µs
- Jumbo frames support: Yes
- Packet buffer memory: 12.38 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Authentication: MAC-based authentication
- Authentication type: RADIUS,TACACS+
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Stackable: Yes
- Form factor: 1U
- Product colour: Black
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 1016 MHz
- Memory type: DDR3-SDRAM
- Internal memory: 4096 MB
- Flash memory: 16 MB
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 21.9 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Total Power over Ethernet (PoE) budget: 139 W
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 90%
Weight & dimensions
- Width: 254 mm
- Depth: 255 mm
- Height: 44 mm
- Weight: 2.8 kg
