Hewlett Packard Enterprise Aruba 6000 24G 4SFP Managed L3 Gigabit Ethernet (10/100/1000) 1U
Hewlett Packard Enterprise Aruba 6000 24G 4SFP, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U.
More infoBrand: HEWLETT PACKARD ENTERPRISE
429,00 €Stock available: 0 units.
Unavailable
SKU:
113715
PRC:
343749
EAN:
190017541624
PN:
r8n88a
Description

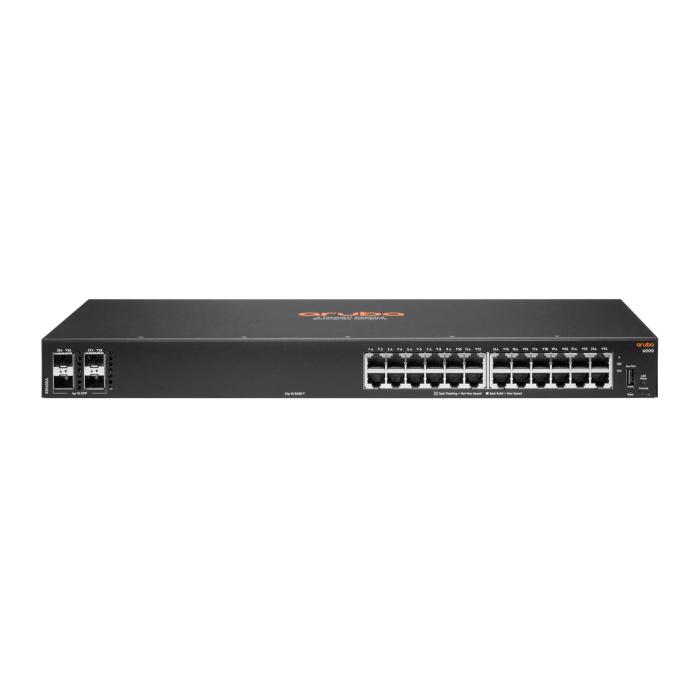

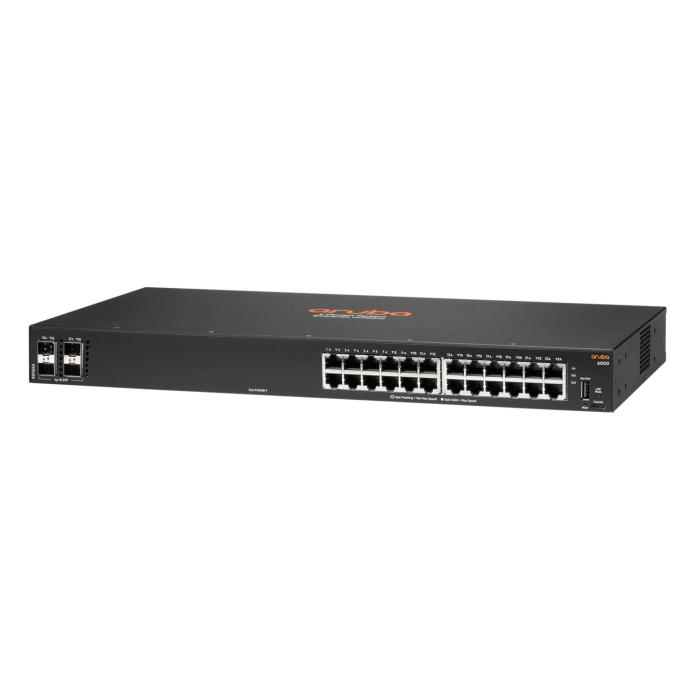

The Aruba 6000 managed switch from Hewlett Packard Enterprise offers 24 Gigabit Ethernet (10/100/1000) RJ-45 ports along with 4 SFP slots, in a 1U form factor. It is an L3 layer switch prepared to be managed via web or through the cloud, with quality of service (QoS) support to prioritise traffic. It incorporates features such as VLAN, port mirroring, flow control, link aggregation, auto MDI/MDI-X and spanning tree protocol, which makes it easy to segment the network and avoid loops. Its performance reaches 41.6 Mpps, with a latency of 1.5 µs at 1 Gbps and compatibility with Jumbo Frames. All of this in a chassis of 442 x 44 x 201 mm (width x height x depth) and a weight of 2.6 kg, designed to be rack-mounted.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- SFP module slots quantity: 4
Network
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 56 Gbit/s
- Throughput: 41.6 Mpps
- MAC address table: 8192 entries
- Latency (1 Gbps): 1.5 µs
- Jumbo frames support: Yes
- Packet buffer memory: 12.38 MB
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Authentication: MAC-based authentication
Multicast features
- Multicast support: Yes
Protocols
- IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
- IPv4 FIB entries: 256
- IPv6 FIB entries: 128
Design
- Rack mounting: Yes
- Stackable: No
- Form factor: 1U
Performance
- Built-in processor: Yes
- Processor model: ARM Cortex-A9
- Processor frequency: 1016 MHz
- Memory type: DDR3-SDRAM
- Internal memory: 8192 MB
- Flash memory: 16384 MB
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 33 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 15 - 95%
- Storage relative humidity (H-H): 15 - 90%
Weight & dimensions
- Width: 442 mm
- Depth: 201 mm
- Height: 44 mm
- Weight: 2.6 kg
