Description

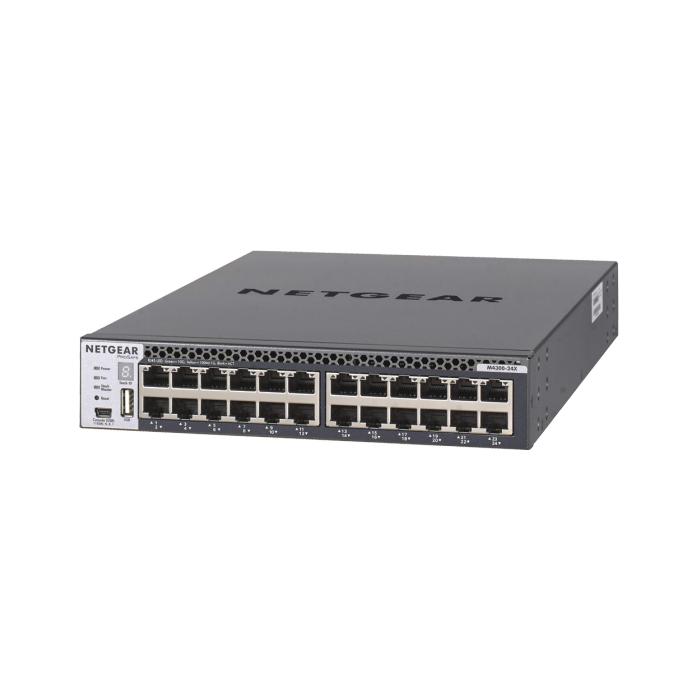

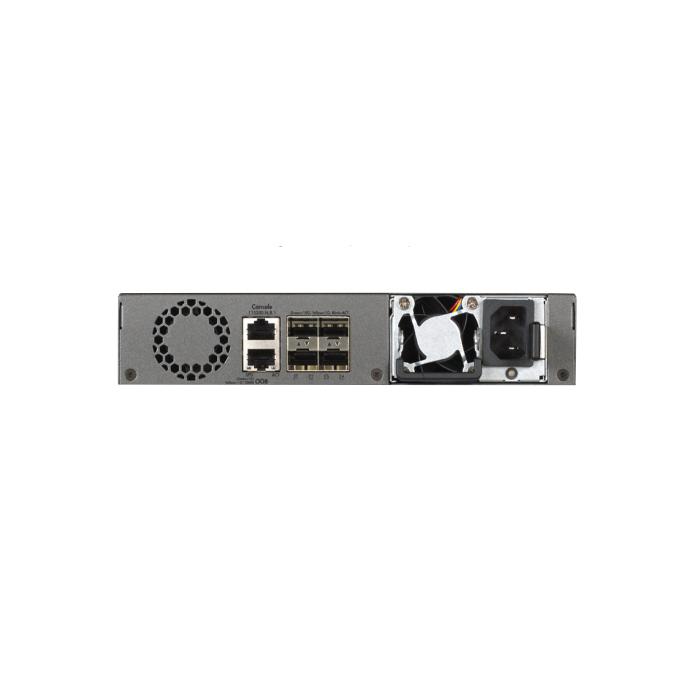

The NETGEAR M4300-24X managed switch in black is a 1U L3 device with 24 10G Ethernet ports (100/1000/10000). It includes four slots for SFP+ modules and two USB 2.0 ports, plus an RJ-45 console port and a DC input power socket. Its management covers quality of service (QoS), ARP inspection and system event logging, which facilitates network monitoring. It supports VLANs with up to 4000 VLANs, including Private VLAN, and offers spanning tree and link aggregation protocols to prevent loops. It complies with the IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3aq and IEEE 802.3az standards, and has 10G support. Weighing 4.14 kg, it is designed for installation in rack cabinets.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- ARP inspection: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- SFP+ module slots quantity: 4
- Console port: RJ-45
- USB 2.0 ports quantity: 2
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1AX, IEEE 802.3ad, IEEE 802.3aq, IEEE 802.3az
- 10G support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 480 Gbit/s
- Throughput: 357 Mpps
- MAC address table: 16000 entries
- Packet buffer memory: 16 MB
Security
- DHCP features: DHCP server
Multicast features
- Multicast support: Yes
Protocols
- Management protocols: Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
Performance
- Built-in processor: Yes
- Processor frequency: 800 MHz
- Internal memory: 1024 MB
- Flash memory: 256 MB
- Noise level: 37 dB
Power
- AC input voltage: 110 - 220 V
- Power consumption (typical): 250 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Weight & dimensions
- Weight: 4.14 kg
Logistics data
- Harmonized System (HS) code: 85176990
