Description

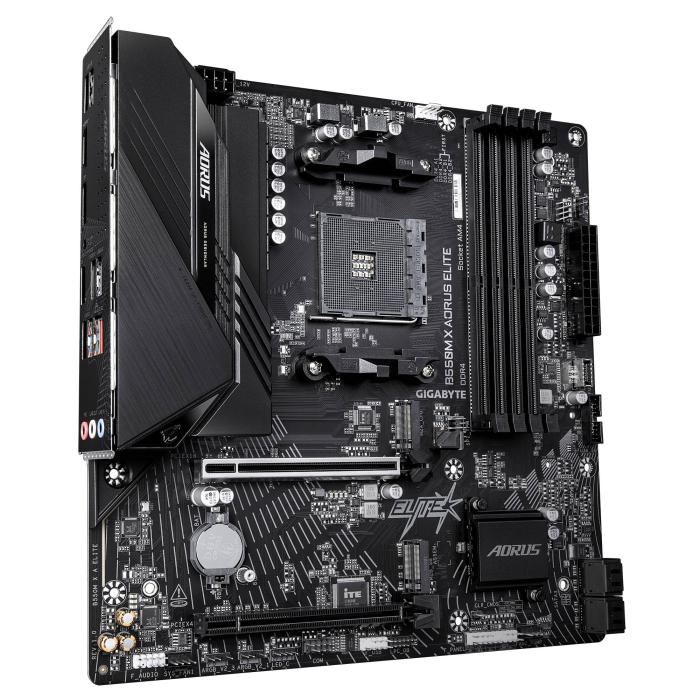

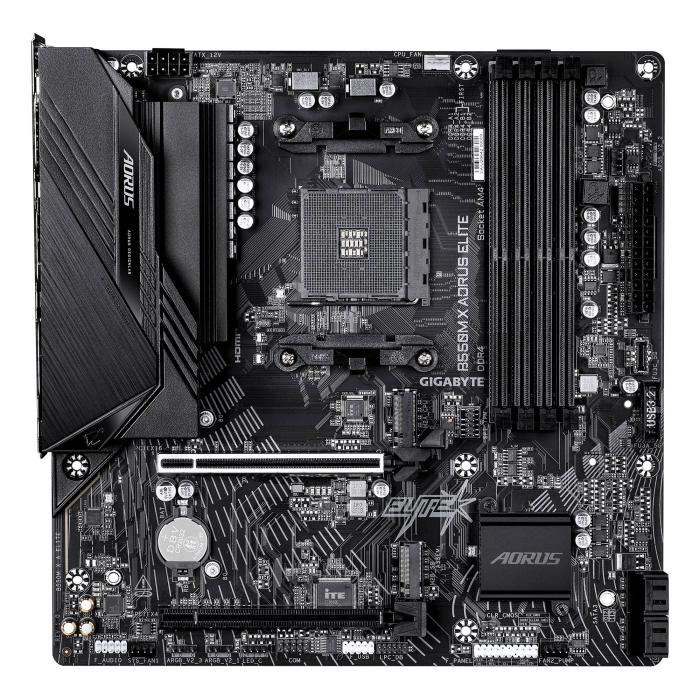

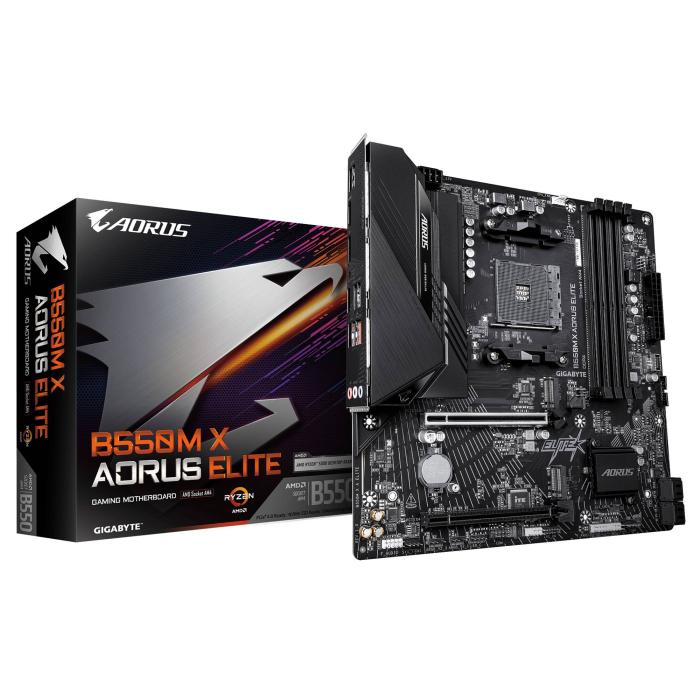

GIGABYTE B550M X AORUS ELITE motherboard with AM4 socket, AMD B550 chipset and support for AMD Ryzen 5000, 4000 and 3000 Series processors. It supports DDR4-SDRAM memory at a maximum speed of 3200 MHz, with compatibility for both ECC and non-ECC modules. On the rear panel it offers two USB 2.0 ports, four USB 3.2 Gen 1 Type-A and one USB 3.2 Gen 1 Type-C. Network connectivity is handled by the Realtek RTL8125 controller with 2.5 Gigabit Ethernet, and sound is provided by the Realtek ALC1220-VB chip. For storage it has M.2, PCI Express 4.0, PCI Express 3.0 and SATA III interfaces, with HDD and SSD support and RAID compatibility. The form factor measures 244 mm in width and 244 mm in depth, with a height of 35 mm, in black.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
- Supported processor sockets: Socket AM4
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speed (max): 3200 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 32 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes

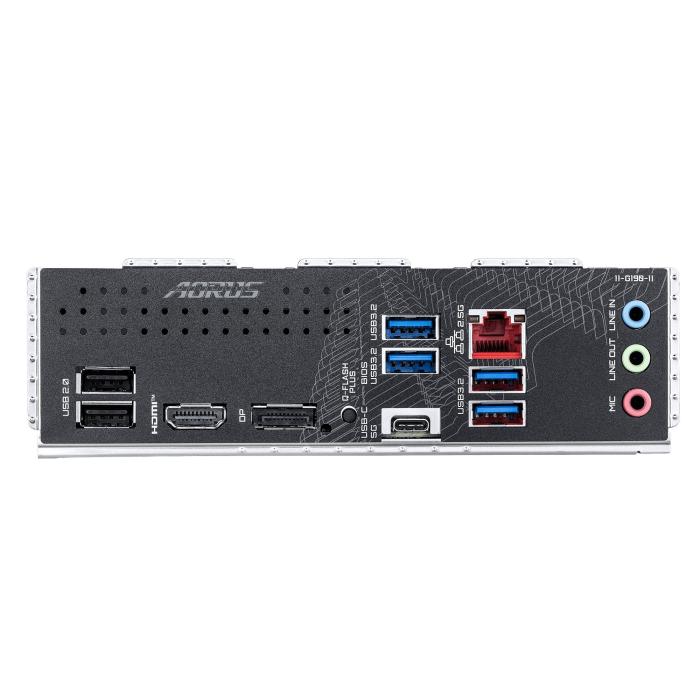

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: No
Features
- Motherboard chipset: AMD B550
- Audio chip: Realtek ALC1220-VB
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Power source type: ATX
Expansion slots
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 3.0
- PCI Express x4 slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 2280
BIOS
- BIOS type: UEFI AMI
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 270 mm
- Package depth: 268 mm
- Package height: 68 mm
- Package weight: 2.26 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
- Height: 35 mm
Packaging content
- Batteries included: Yes
- Screws included: Yes
Other features
- Weight: 1.04 kg
Technical details
- Warranty period: 3 year(s)
