ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX

Name: ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX
Brand: ASUS
SKU: 341517
Price: 116.62 EUR
Availability: InStock

More info

Brand: ASUS

116.62 €

96.38 € without VAT

Stock available: 7 units.

Get it on the September 10 / September 11

SKU: 89882 PRC: 341517 EAN: 4711081309741 PN: 90MB19X0-M0EAY0

Description

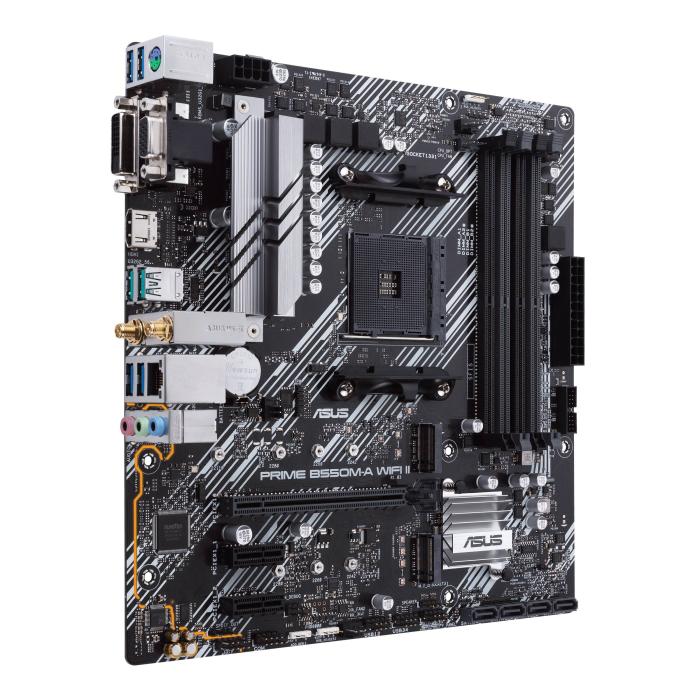

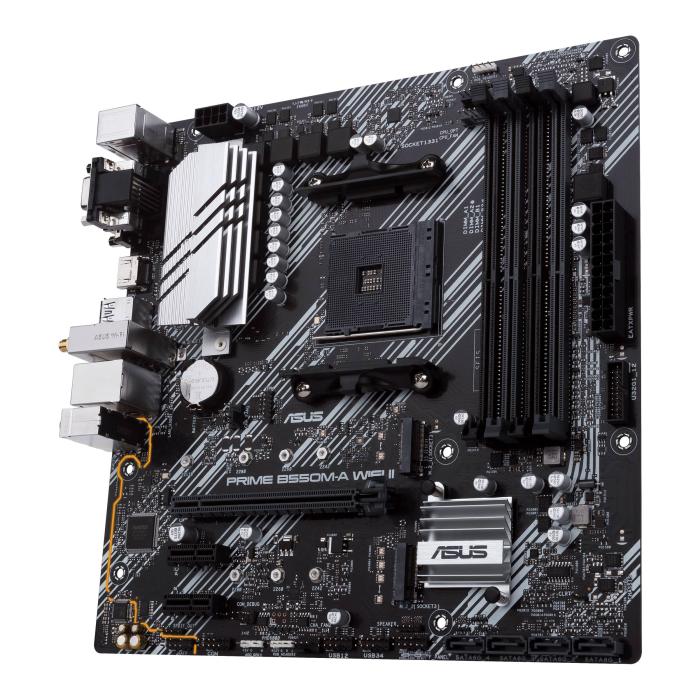

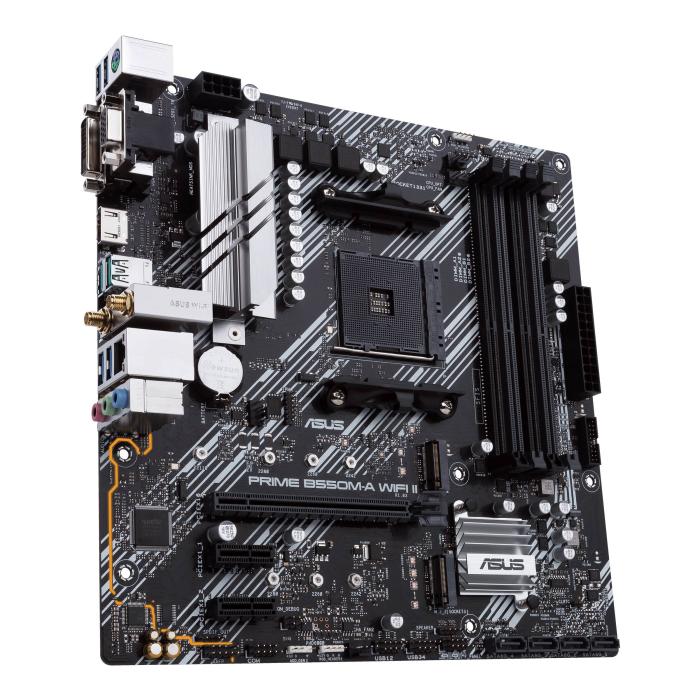

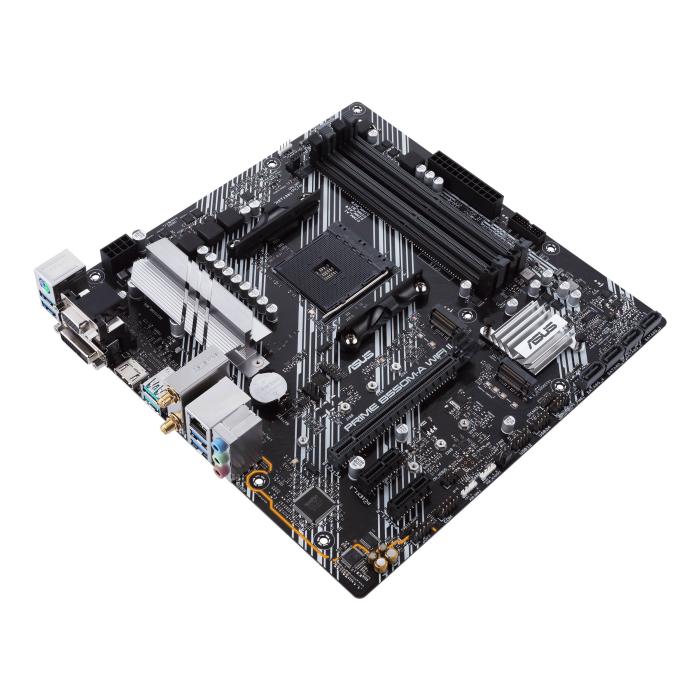

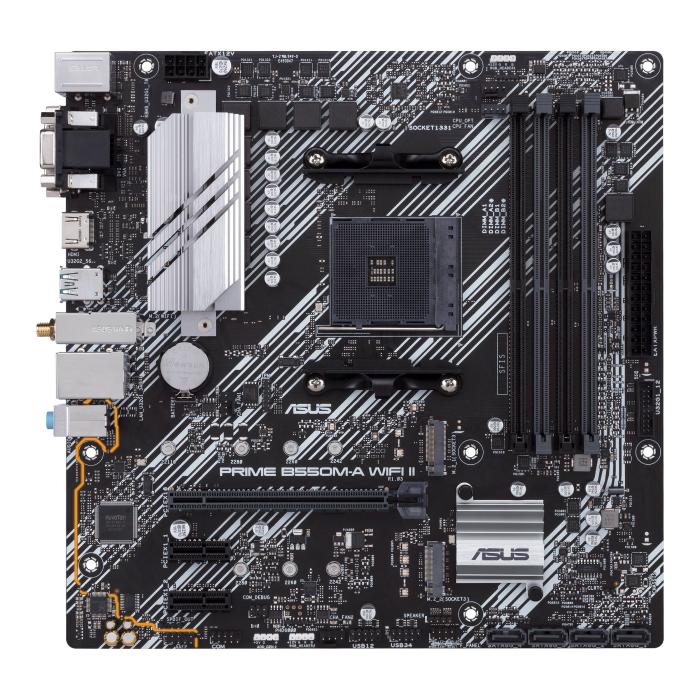

Motherboard ASUS PRIME B550M-A WIFI II in micro ATX format and AM4 socket for AMD Ryzen 3000 and 5000 series processors. It features four DIMM slots for dual-channel DDR4-SDRAM memory, with ECC support and a maximum capacity of 128 GB. It offers six ports for HDD and SSD drives, with M.2, PCI Express 3.0, PCI Express 4.0, and SATA III interfaces, as well as compatibility with RAID levels 0, 1, and 10. It integrates WiFi connectivity and is presented as a balanced option for compact builds.

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466, 4600, 4800, 4866 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Number of EATX power connectors: 1
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

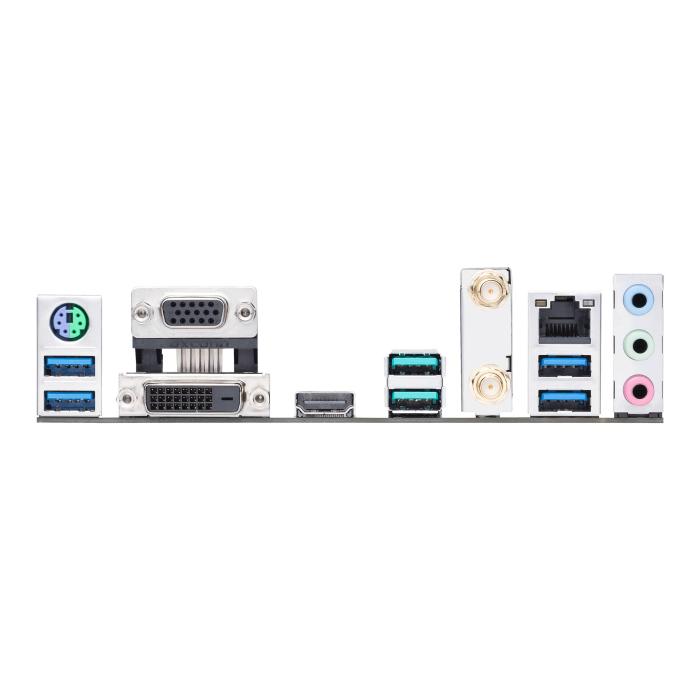

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DVI-D ports quantity: 1
Headphone outputs: 1
Microphone in: Yes
WiFi-AP antenna jack: 1
USB connector type: USB Type-A

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Wake-on-LAN ready: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.2

Features

Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 67 mm

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 845 g
Packaging content: 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 SSD screw package 1 x Support DVD 1 x User manual
