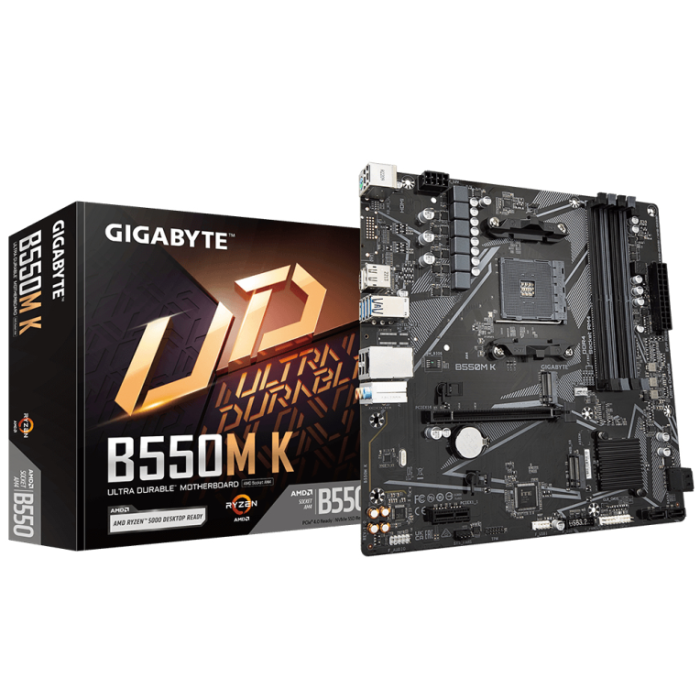

Name: GIGABYTE B550M K Motherboard - AMD Ryzen 5000 CPUs, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1
Brand: GIGABYTE
Price: 72.37 USD
Availability: InStock

GIGABYTE B550M K Motherboard - AMD Ryzen 5000 CPUs, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

$72.37

$72.37 without VAT

GIGABYTE B550M K Motherboard - AMD Ryzen 5000 CPUs, up to 4733MHz DDR4, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1. More info

Amount

Brand: GIGABYTE

SKU: 115330 PRC: 426956 EAN: 4719331852764 PN: B550M K 1.0

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dodeca-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4733, 4600, 4400, 4266, 4133, 4000, 3866, 3733, 3600, 3466, 3400, 3200, 2933, 2667, 2400, 2133 MHz
Supported memory clock speed (max): 4733 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Maximum internal memory per slot: 32 GB

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA
Number of HDDs supported: 2
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
DirectX version: 12.0

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 1
TPM connector: Yes
12V power connector: Yes

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Wi-Fi: No

Features

Motherboard chipset: AMD B550
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Brown
PC health monitoring: Fan, Temperature, Voltage
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 3.0

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 5.0
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System management BIOS (SMBIOS) version: 2.7

Logistics data

Country of origin: China
Products per shipping (inner) case: 1 pc(s)

Battery

Battery weight: 3 g
Lithium weight per battery: 0.07 g
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032

Packaging data

Package width: 265 mm
Package depth: 265 mm
Package height: 54 mm
Package weight: 837 g

Weight & dimensions

Width: 244 mm
Depth: 244 mm
Height: 35 mm

Packaging content

Batteries included: Yes
Screws included: Yes
Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Technical details

Warranty period: 3 year(s)
