Description
GIGABYTE B550 X GAMING WIFI7 motherboard with AMD B550 chipset and AM4 socket, compatible with AMD Ryzen 5000, 4000 and 3000 Series processors. It supports DDR4-SDRAM memory at 3200, 2933, 2667, 2400 and 2133 MHz, with both ECC and non-ECC compatibility. On the rear panel it offers 2 USB 2.0 ports, 3 USB 3.2 Gen 1 Type-A ports and 1 USB 3.2 Gen 1 Type-C port. Connectivity includes Wi-Fi 7 (802.11be) and 2.5 Gigabit Ethernet. For storage it features RAID and supports HDD and SSD with M.2, PCI Express 4.0, PCI Express 3.0 and SATA III interfaces. Audio output is 7.1 channels and maximum resolution reaches 5120 x 2880 pixels with HDCP 2.3. Its dimensions are 305 mm wide, 244 mm deep and 35 mm high, with a weight of 2.01 kg.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
- Supported processor sockets: Socket AM4
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 3200, 2933, 2667, 2400, 2133 MHz
- Supported memory clock speed (max): 3200 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 32 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 3.0, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 5120 x 2880 pixels
- HDCP: Yes
- HDCP version: 2.3
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4

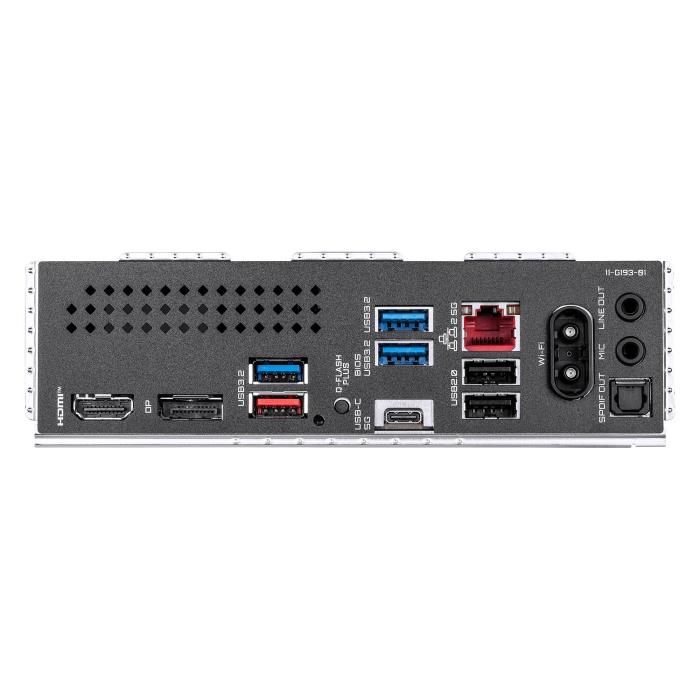

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- S/PDIF out port: Yes
- Digital audio optical out: 1
- WiFi-AP antenna jack: 2
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be), 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
- WLAN controller model: Realtek RTL8922AE
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD B550
- Audio output channels: 7.1 channels
- Product colour: Dark brown
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 25110
- 1st M.2 highest PCI Express generation: 4.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 3.0
BIOS
- BIOS type: AMI
- BIOS memory size: 128 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Country of origin: China
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 345 mm
- Package depth: 294 mm
- Package height: 80 mm
- Package weight: 2.42 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
Packaging content
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version)
Other features
- Weight: 2.01 kg
Technical details
- Warranty period: 3 year(s)
