Description

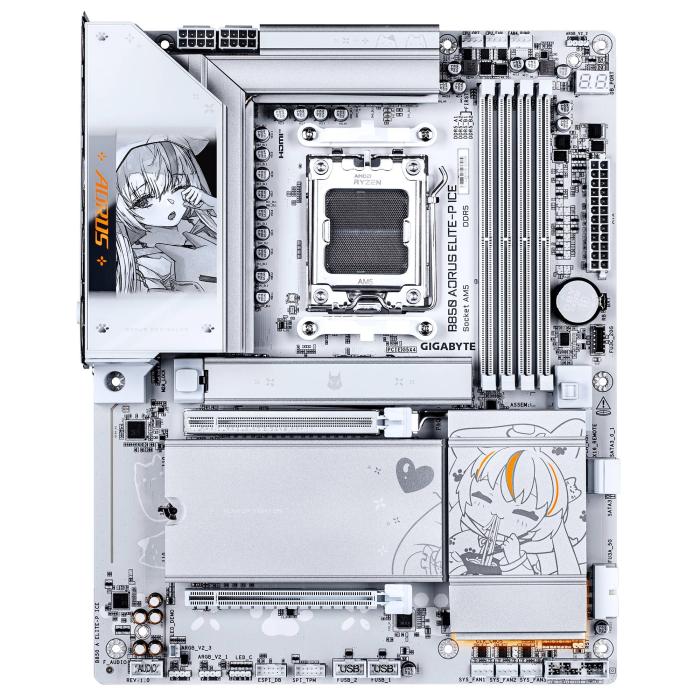

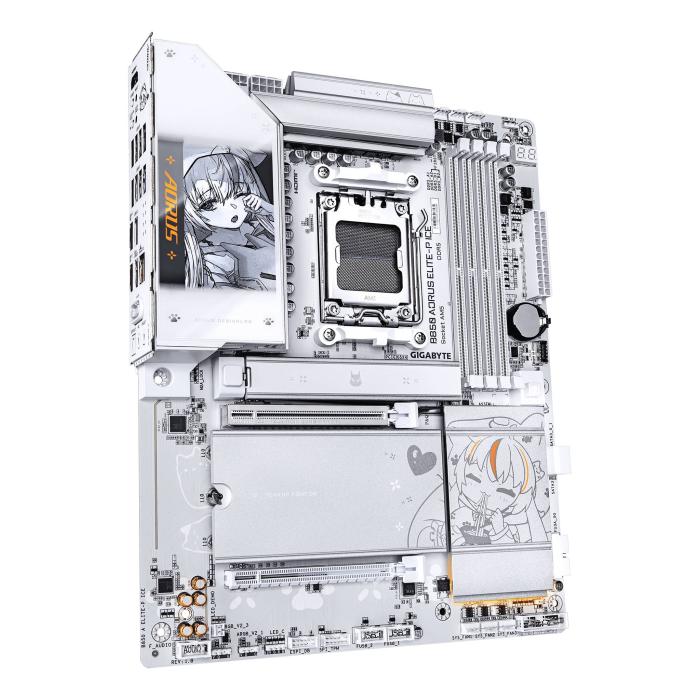

GIGABYTE B850 AORUS ELITE-P ICE motherboard with AMD B850 chipset and AM5 socket, compatible with AMD Ryzen 7000, 8000 and 9000 Series processors. Supports DDR5-SDRAM memory with clock speeds from 4400 to 8200 MHz and non-ECC compatibility. Offers RAID support and supports M.2 and SATA III drives, both HDD and SSD. In terms of connectivity, it includes Wi-Fi 7 (802.11be) and 5, 2.5 and 1 Gigabit Ethernet. The rear panel features 4 USB 2.0 ports, 4 USB 3.2 Gen 1 Type-A and 2 USB 3.2 Gen 2 Type-A. Its audio chip is Realtek ALC1220 and it reaches a maximum resolution of 4096 x 2160 pixels with HDCP 2.3. The product colour is white and its dimensions are 305 mm wide, 244 mm deep and 35 mm high.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
- Maximum internal memory per slot: 64 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 2
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
- HDCP version: 2.3
- DirectX version: 12.0
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 2
- TPM connector: Yes
- 12V power connector: Yes
- Number of water pump connectors: 2
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 4

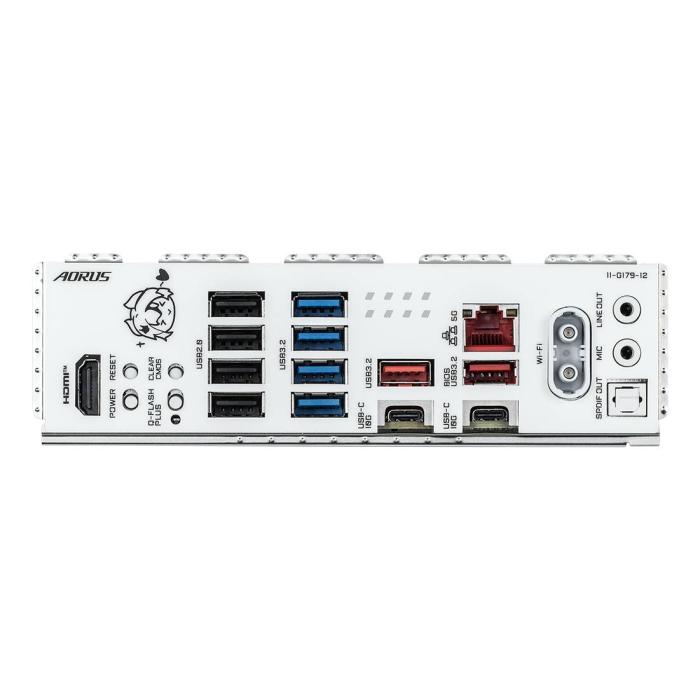

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 1
- Microphone in: Yes
- S/PDIF out port: Yes
- WiFi-AP antenna jack: 2
Network
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet
- LAN controller: Realtek RTL8126
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
- WLAN controller model: Realtek RTL8922AE
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Audio chip: Realtek ALC1220
- Audio output channels: 7.1 channels
- Product colour: White
- PC health monitoring: Fan, Temperature, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 11 x64
- Motherboard chipset: AMD B850
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 4
- 1st M.2 largest key size: 2580
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 22110
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 22110
- 3rd M.2 highest PCI Express generation: 4.0
- 4th M.2 largest key size: 22110
- 4th M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 512 Mbit
- ACPI version: 5.0
- Clear CMOS jumper: Yes
- Clear CMOS button: Yes
- Desktop Management Interface (DMI) version: 2.7
- System management BIOS (SMBIOS) version: 2.7
Logistics data
- Products per shipping (inner) case: 1 pc(s)
Battery
- Battery weight: 3 g
- Lithium weight per battery: 0.07 g
- Number of battery cells: 1
- Battery capacity: 220 mAh
- Battery technology: Lithium-Manganese Dioxide (LiMnO2)
- Battery type: CR2032
Packaging data
- Package width: 335 mm
- Package depth: 270 mm
- Package height: 80 mm
- Package weight: 2.41 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 35 mm
Packaging content
- Batteries included: Yes
- Antenna included: Yes
- Screws included: Yes
- Bundled software: Norton® Internet Security (OEM version)
Other features
- Weight: 2.13 kg
Technical details
- Warranty period: 3 year(s)
