Description

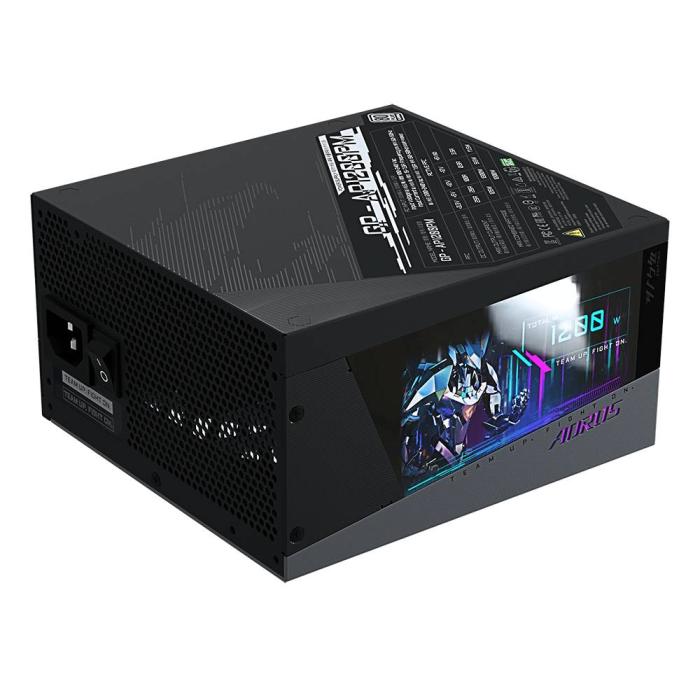

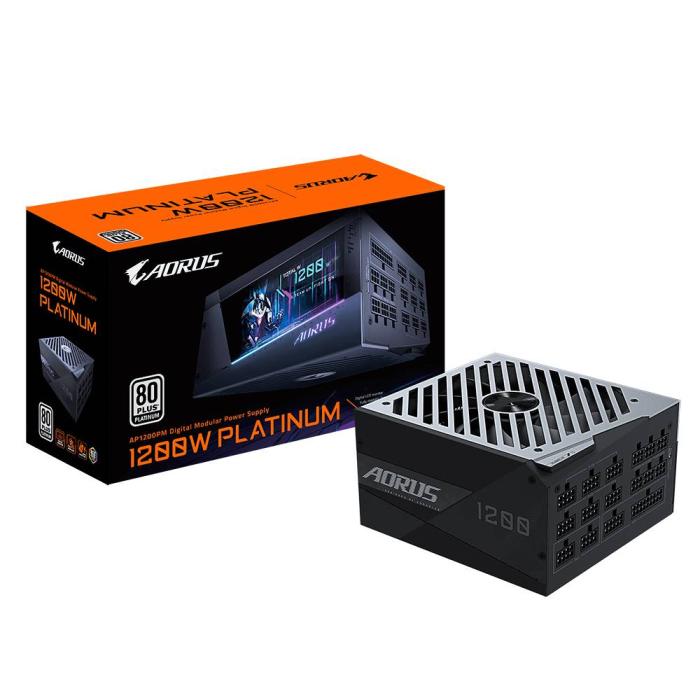

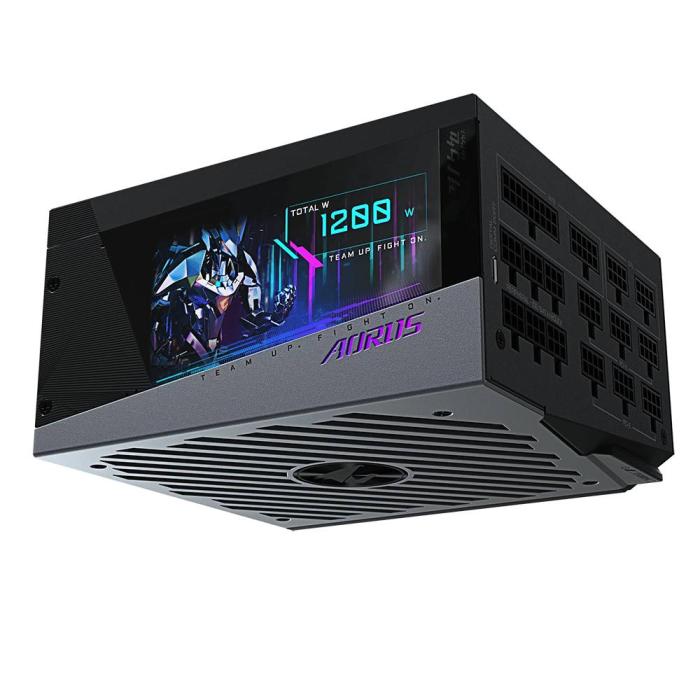

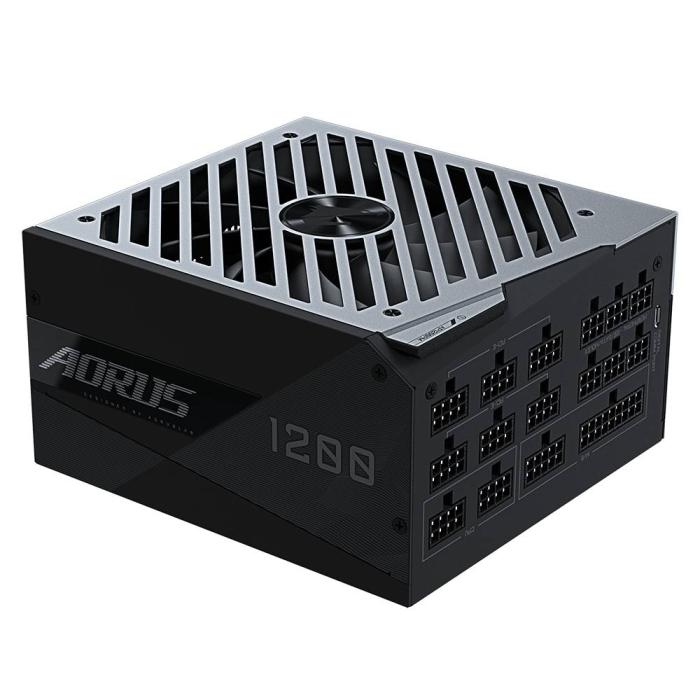

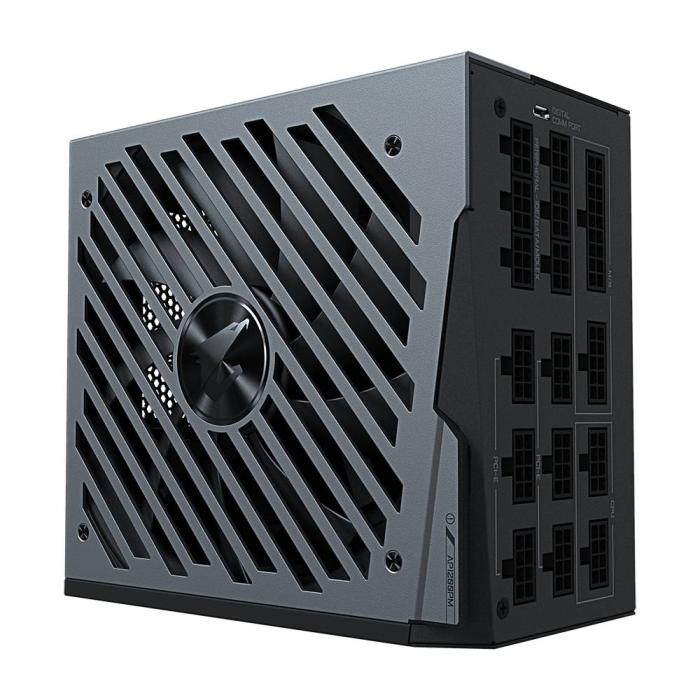

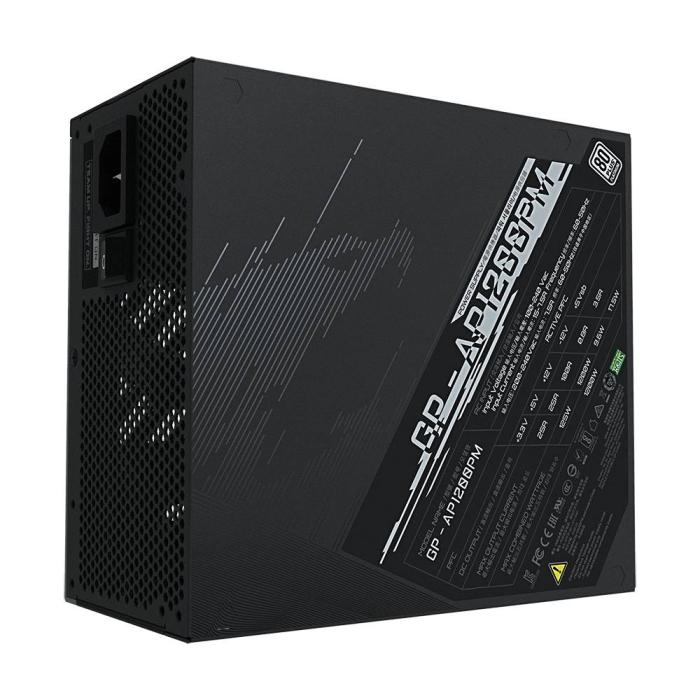

The GIGABYTE AORUS P1200W power supply unit, in black, delivers a total power output of 1200 W with 92% efficiency and active power factor correction. It supports an AC input voltage of 100 - 240 V and an input frequency of 50 - 60 Hz, with an input current of 15 - 7.5 A. Its dimensions are 150 x 160 x 86 mm (width x height x depth), a form factor that fits in conventional ATX cases. The cabling is fully modular, with a 20+4 pin ATX motherboard power connector and a 4+4 pin EPS connector for the CPU. The motherboard power cable measures 61 cm, while the CPU and PCI Express cables reach 65 cm, sufficient for large towers. It incorporates protection features against overcurrent, overvoltage, overvoltage, short circuit and undervoltage, as well as a hold-up time of 16 ms. It includes power connectors for floppy disk drive.
Specifications
Power
- Total power: 1200 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 15 - 7.5 A
- Power Factor Correction (PFC) type: Active
- Hold time: 16 ms
- Efficiency: 92%
- Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 16
- SATA power cable length: 150, 650 mm
- Peripheral (Molex) power connectors (4-pin): 6
- Peripheral (Molex) power cable length: 120, 150, 600 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 10
- PCI Express power cable length: 65 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 65 cm
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 2
- Floppy disk drive connector: Yes
- Floppy disk drive cable length: 15 cm

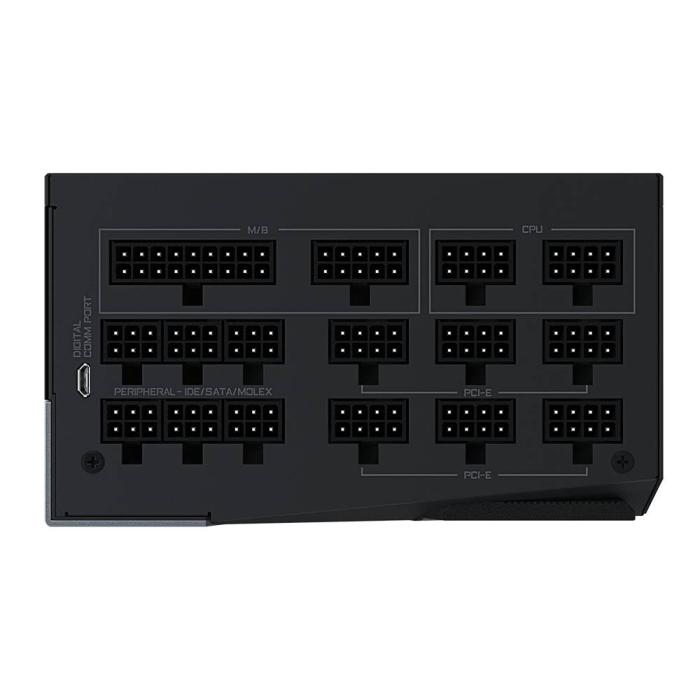

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Platinum
- Supported motherboard form factors: ATX
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
- Bearing technology: DBB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active

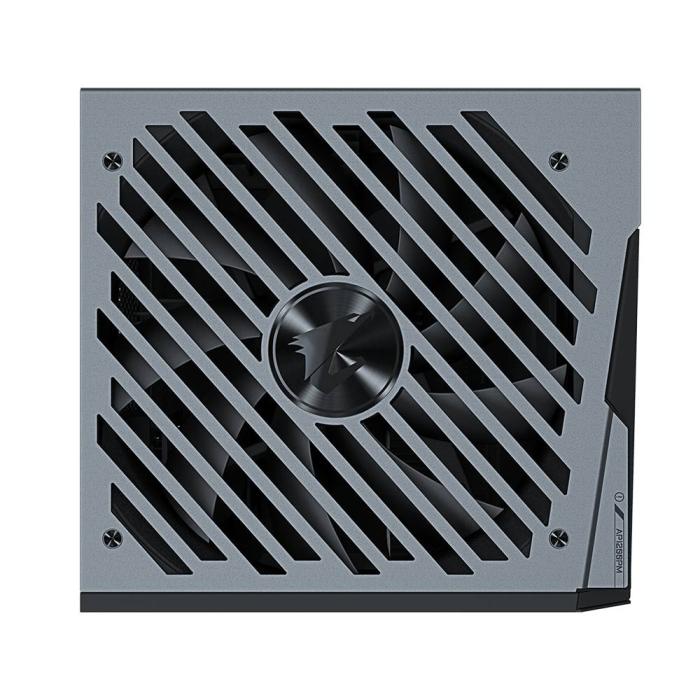

- Fan diameter: 14 cm
- Number of fans: 1 fan(s)
- Fan location: Top
- Illumination: Yes
Packaging content
- Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
- Width: 150 mm
- Depth: 86 mm
- Height: 160 mm
Logistics data
- Harmonized System (HS) code: 84733020
