Description

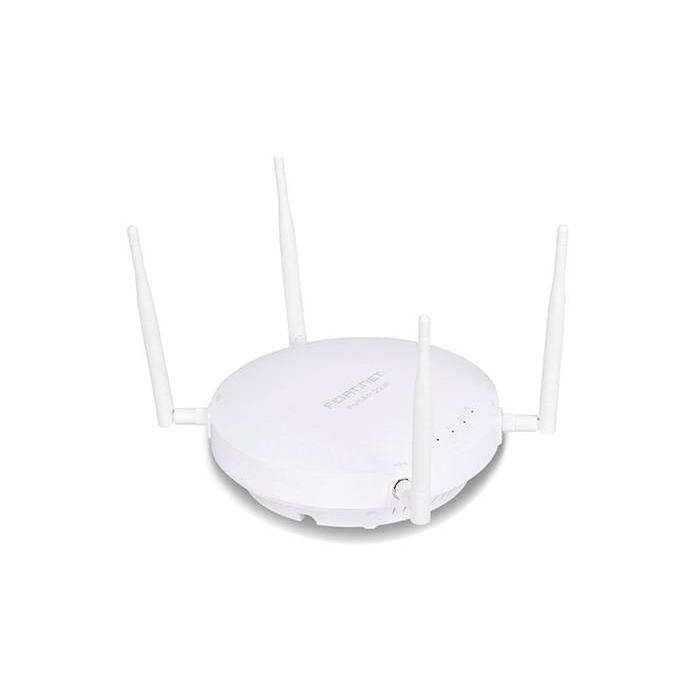

Fortinet FortiAP 223E access point in white, reaching a maximum transfer speed of 1167 Mbit/s, with support for the 2.4 GHz (300 Mbit/s) and 5 GHz (867 Mbit/s) bands. Its Multi User MIMO configuration and 256-QAM modulation optimise performance in environments with multiple connected devices, while the short guard interval reduces latency. It incorporates security features such as wireless intrusion detection system (WIDS), whitelist and blacklist to control network access. It is powered via Power over Ethernet (PoE) and offers Gigabit Ethernet connectivity at 10, 100 and 1000 Mbit/s, with a transmission power of 24 dBmW.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1167 Mbit/s
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- Maximum data transfer rate (5 GHz): 867 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band: 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, I
- MIMO: Yes
- MIMO type: Multi User MIMO
- Modulation: 256-QAM
- Maximal-Ratio Combining (MRC): Yes
- Maximum Likelihood Detection (MLD): Yes
- Data unit aggregation: A-MPDU, A-MSDU
- Short Guard Interval (GI): Yes
- Transmitting power: 24 dBmW
Security
- Security algorithms: EAP-AKA, EAP-FAST, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, WEP, WPA, WPA2
- Number of SSID supported: 16
- Wireless Intrusion Detection System (WIDS): Yes
- Blacklist: Yes
- Whitelist: Yes
Management features
- Web-based management: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Power
- Power over Ethernet (PoE): Yes
- Power consumption (max): 12.36 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- LED indicators: Yes
Antenna
- Antenna type: External
- Antennas quantity: 4
- Antenna gain level (max): 5 dBi
Certificates
- Certification: FCC, IC, CE, RoHS
Weight & dimensions
- Width: 160 mm
- Depth: 160 mm
- Height: 47 mm
- Weight: 500 g
Packaging data
- Package weight: 2.4 kg
Packaging content
- Quantity per pack: 1 pc(s)
- Mounting kit: Yes
Operational conditions
- Operating relative humidity (H-H): 5 - 90%
- Operating temperature (T-T): -20 - 45 °C
- Storage temperature (T-T): -40 - 70 °C
Logistics data
- Harmonized System (HS) code: 85176990
