Description

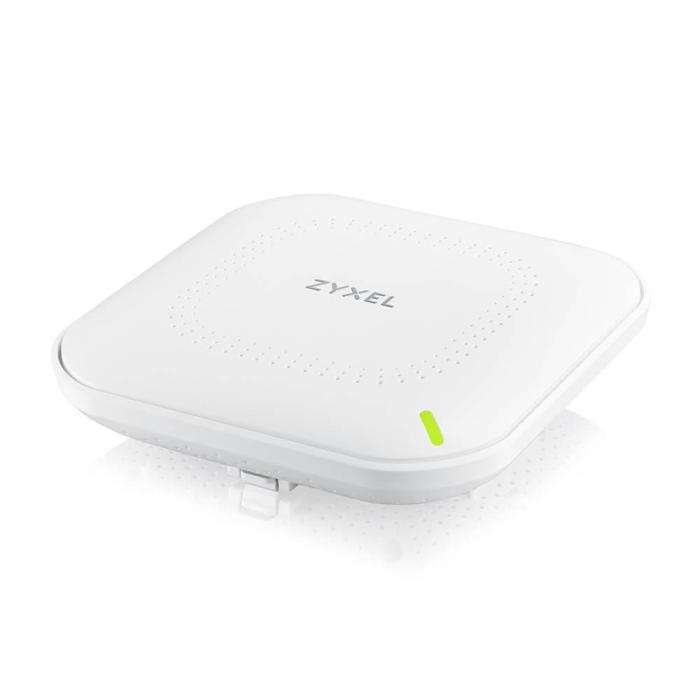

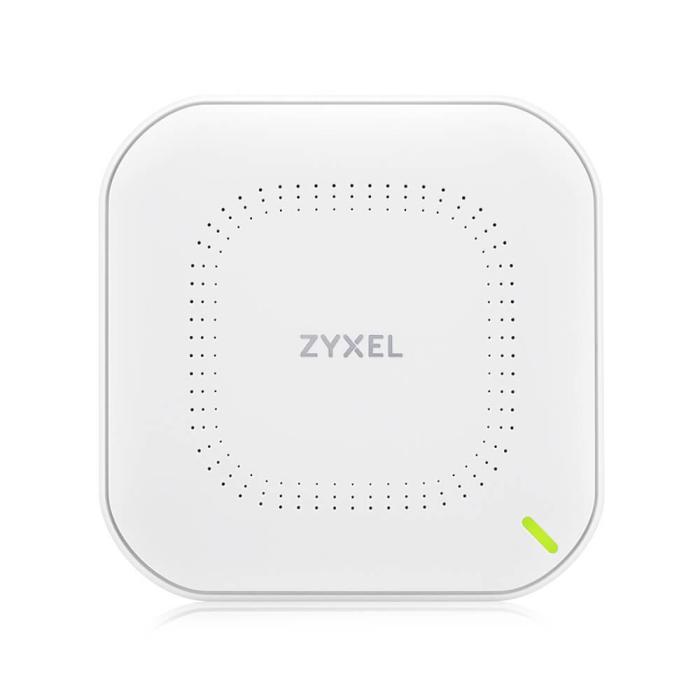

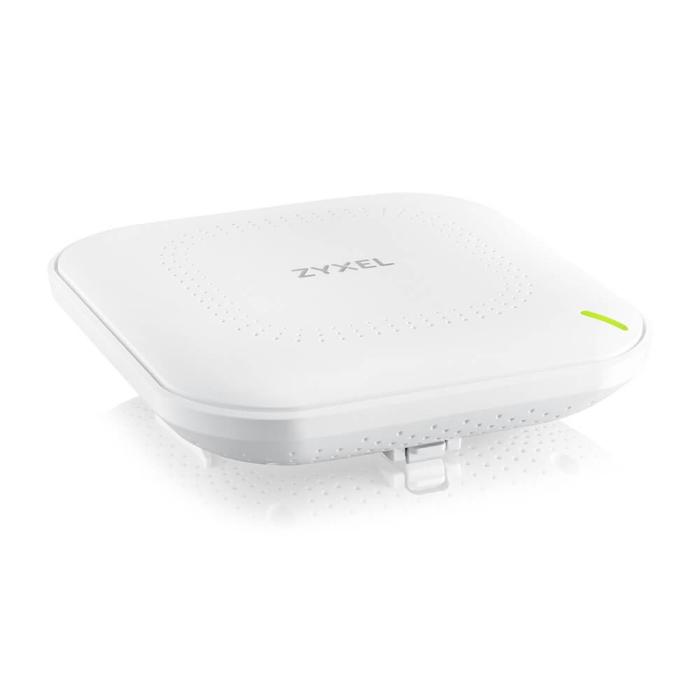

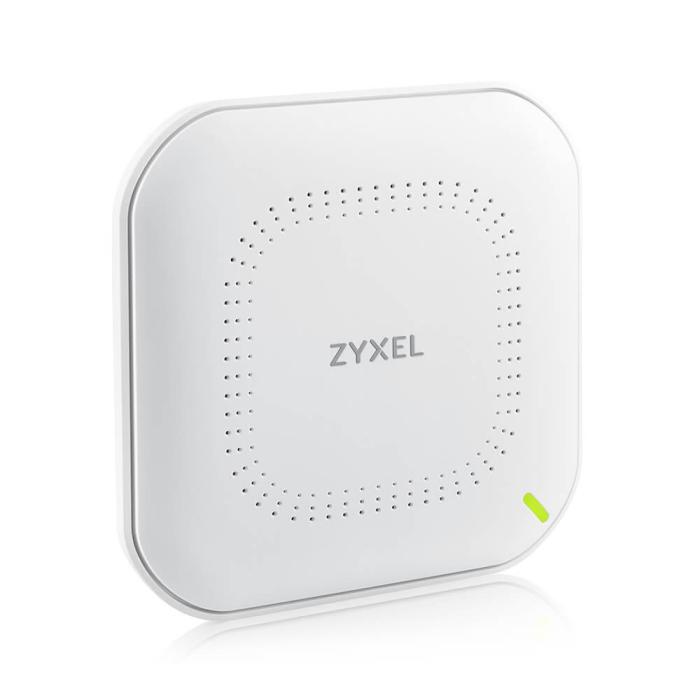

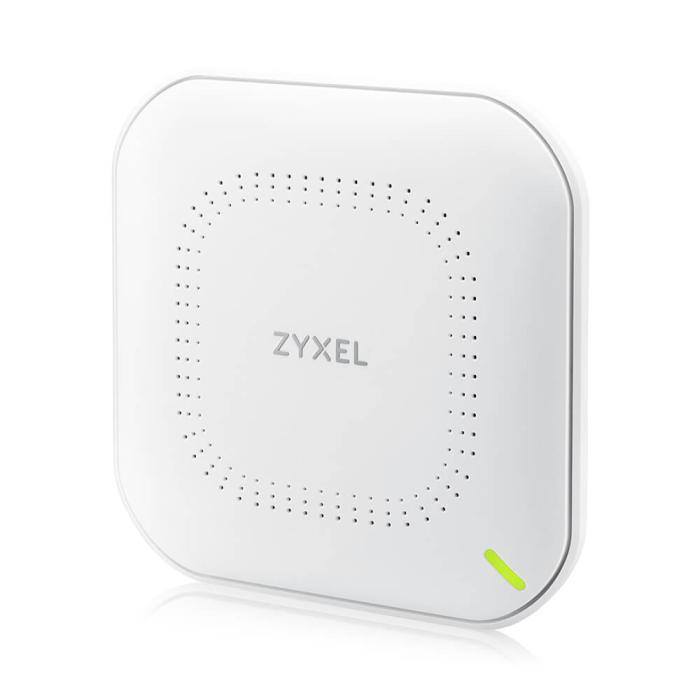

Zyxel NWA90AX PRO access point in white, operating on the 2.4 GHz and 5 GHz bands, with a maximum data transfer rate of 2400 Mbit/s on the 5 GHz band. This model supports IEEE 802.11a/b/g/n/ac/ax standards and uses multi-user MIMO technology to manage multiple devices simultaneously. It includes a 1000 and 2500 Mbit/s Ethernet LAN port, Power over Ethernet (PoE) and MAC address filtering to control access. Compatible with security algorithms such as WPA3, WPA2-Enterprise, 802.1x RADIUS and WEP, as well as offering VLAN support, web-based management and SNMP protocol.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- 6 GHz: No
- Maximum data transfer rate: 2400 Mbit/s
- Maximum data transfer rate (2.4 GHz): 575 Mbit/s
- Maximum data transfer rate (5 GHz): 2400 Mbit/s
- Ethernet LAN data rates: 1000, 2500 Mbit/s
- Networking standards: IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
Security
- Security algorithms: 802.1x RADIUS, EAP, WEP, WPA, WPA2, WPA2-Enterprise, WPA2-PSK, WPA3
- MAC address filtering: Yes
Protocols
- Management protocols: SNMP
Management features
- Web-based management: Yes
- Firmware upgradeable: Yes

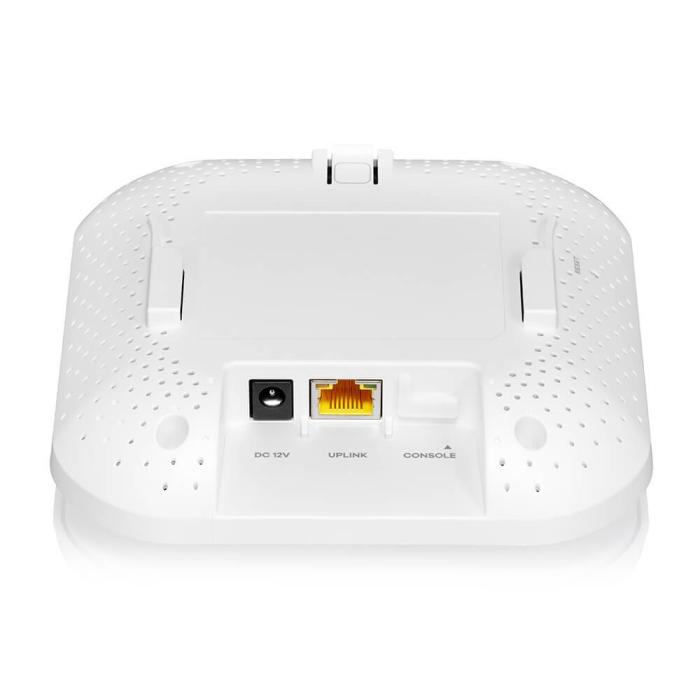

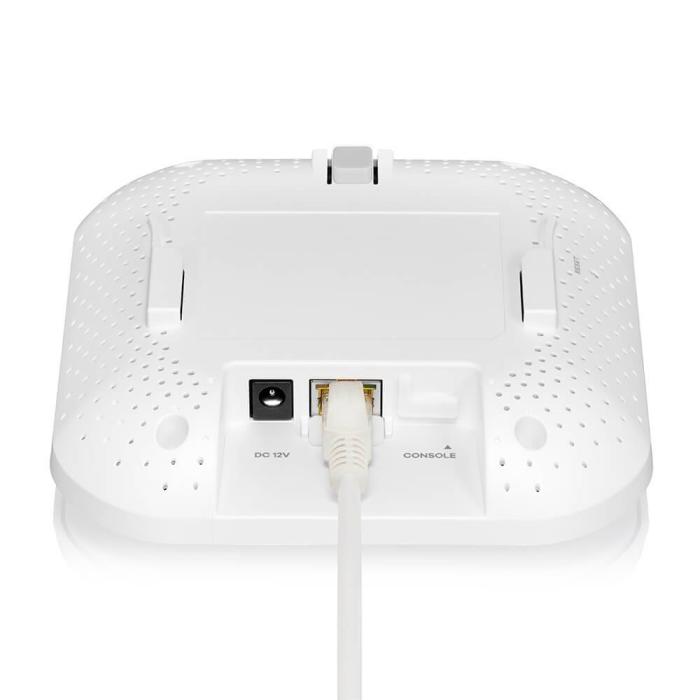

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 0.3 A
- Output voltage: 12 V
- Output current: 2 A
Design
- Placement: Ceiling
- Product colour: White
- LED indicators: Yes
Antenna
- Antenna type: Internal
- Antenna features: Integrated antenna
- Antenna gain level (max): 4 dBi
Weight & dimensions
- Width: 140 mm
- Depth: 140 mm
- Height: 37.5 mm
- Weight: 352 g
Packaging data
- Package width: 240 mm
- Package depth: 155 mm
- Package height: 60 mm
- Package weight: 668 g
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 10 - 90%
