Description

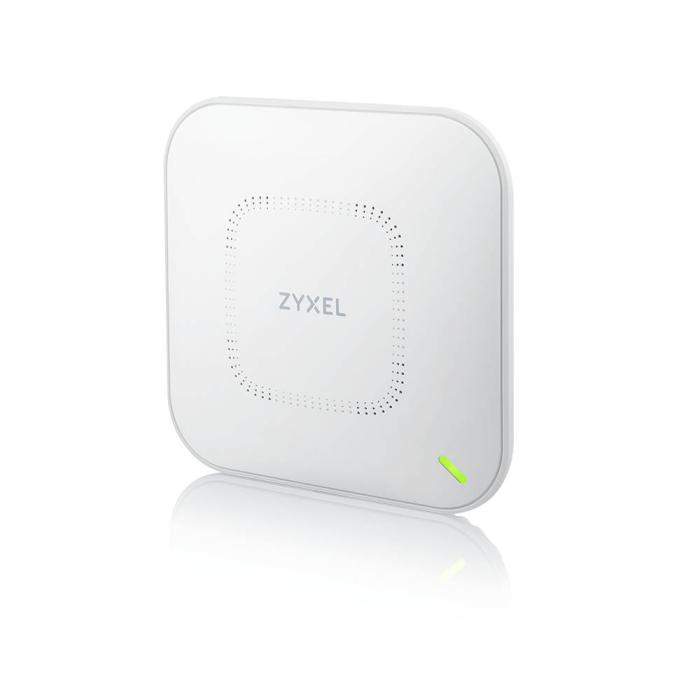

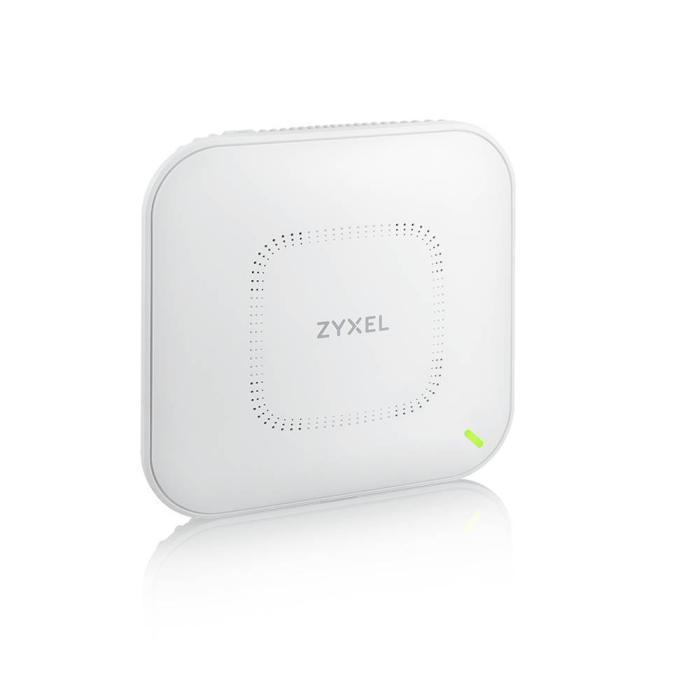

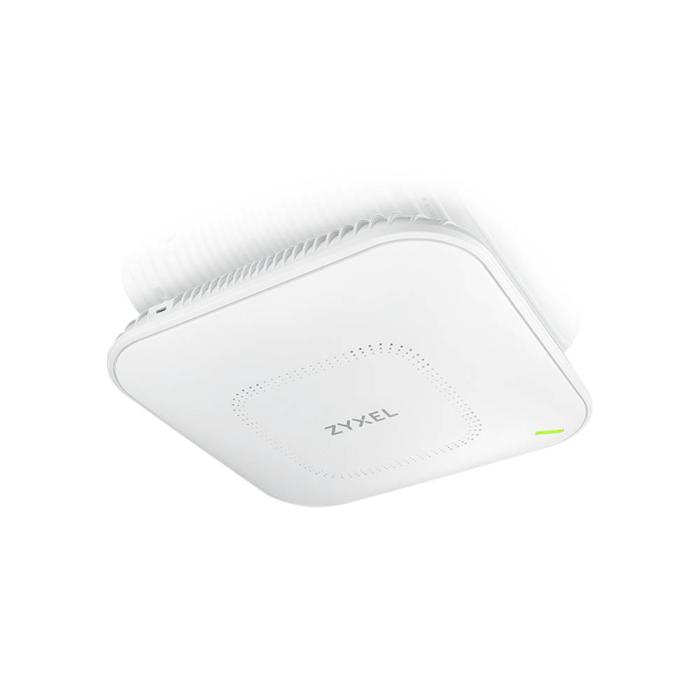

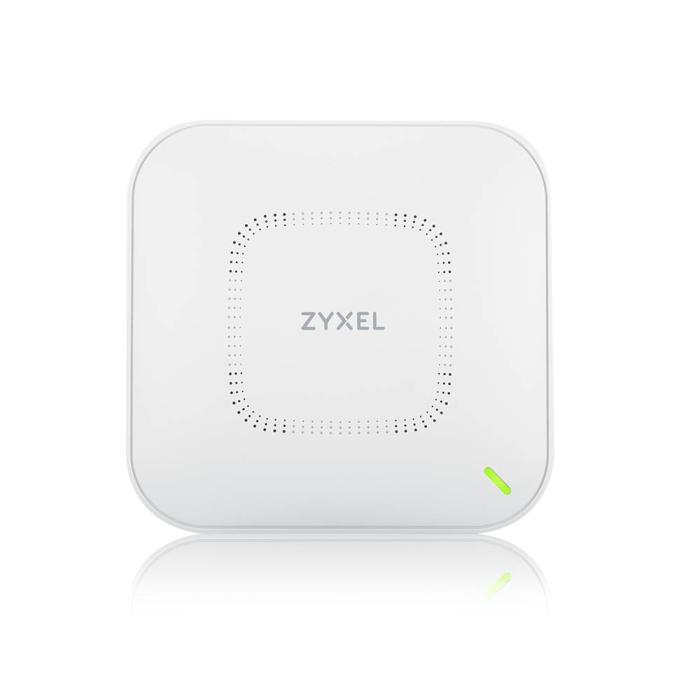

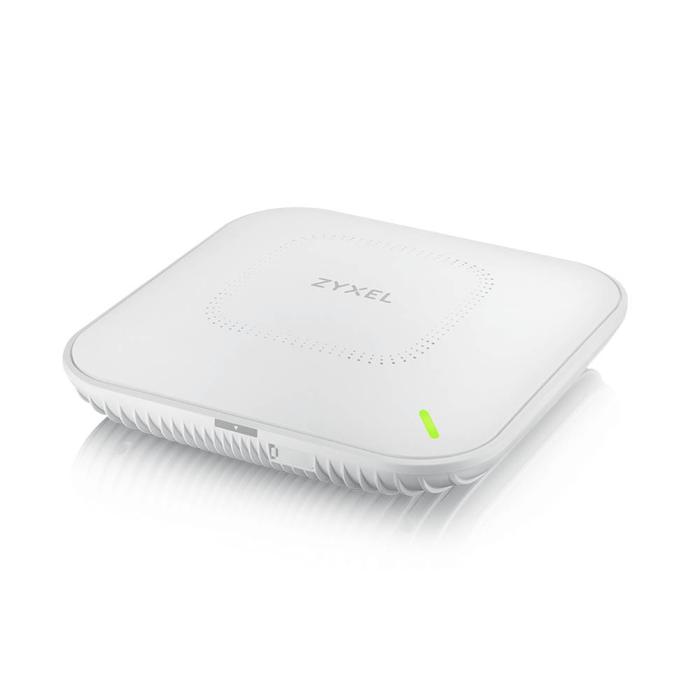

The ZYXEL WAX650S access point, in white, offers Wi-Fi 6 connectivity with dual band 2.4 GHz and 5 GHz. It reaches a maximum data transfer speed of 3550 Mbit/s, with 1150 Mbit/s on the 2.4 GHz band and 2400 Mbit/s on the 5 GHz band. It incorporates Multi User MIMO and MIMO, together with band steering and Wi-Fi Multimedia to optimise network performance. Its transmission power is 26 dBmW and the receiver has a sensitivity of -105 dBm. The Ethernet LAN ports support speeds of 1000, 2500 and 5000 Mbit/s, and it is compatible with the IEEE 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n and IEEE 802.3bt standards. In terms of security it supports SNMP, WEP, WPA-Enterprise, WPA-PSK, WPA2 and WPA3, as well as VLAN support, wireless isolation and automatic wireless distribution system. Its dimensions are 230 x 53.5 x 235 mm (width x height x depth) and it weighs 1.16 kg.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 3550 Mbit/s
- Maximum data transfer rate (2.4 GHz): 1150 Mbit/s
- Maximum data transfer rate (5 GHz): 2400 Mbit/s
- Ethernet LAN data rates: 1000, 2500, 5000 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3bt
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Fast roaming: Yes
- VLAN support: Yes
- Wireless isolation: Yes
- Band steering: Yes
- Transmitting power: 26 dBmW
- Receiver sensitivity: -105 dBm
Security
- Security algorithms: SNMP, WEP, WPA-Enterprise, WPA-PSK, WPA2, WPA3
- MAC address filtering: Yes
- Auto Wireless Distribution System (WDS): Yes
Management features
- Web-based management: Yes
- Firmware upgradeable: Yes

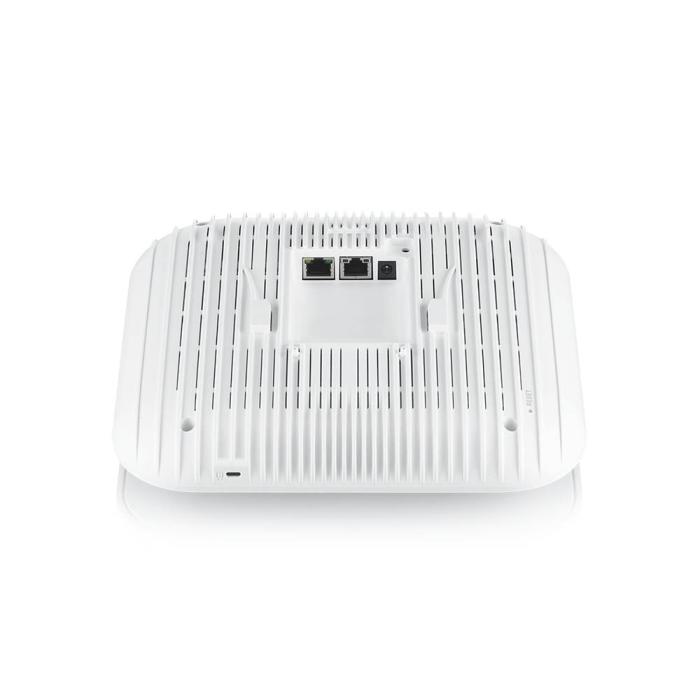

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- DC-in jack: Yes
Power
- Power over Ethernet (PoE): Yes
- AC input voltage: 12 V
Design
- Product colour: White
Antenna
- Antenna type: Internal
- Antenna gain level (max): 5.8 dBi
Certificates
- Certification: FCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002 FCC 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN
Weight & dimensions
- Width: 230 mm
- Depth: 235 mm
- Height: 53.5 mm
- Weight: 1.16 kg
Packaging data
- Package width: 282 mm
- Package depth: 266 mm
- Package height: 79 mm
- Package weight: 1.49 kg
Packaging content
- Quantity per pack: 1 pc(s)
- Mounting kit: Yes
Operational conditions
- Operating relative humidity (H-H): 10 - 95%
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Storage relative humidity (H-H): 10 - 90%
Logistics data
- Harmonized System (HS) code: 85176990
