Aruba, a Hewlett Packard Enterprise company Aruba AP-505 (RW) 1774 Mbit/s Power over Ethernet (PoE) White
Aruba, a Hewlett Packard Enterprise company Aruba AP-505 (RW), 1774 Mbit/s, 574 Mbit/s, 1200 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE..., Multi User MIMO.
More infoBrand: ARUBA, A HEWLETT PACKARD ENTERPRISE COMPANY
530.18 €
438.17 €
without VAT
incl. 21 % VAT
Stock available: 52 units.
Get it
on the
October 16
/
October 19
SKU:
86056
PRC:
299875
EAN:
190017357997
PN:
r2h28a
Description

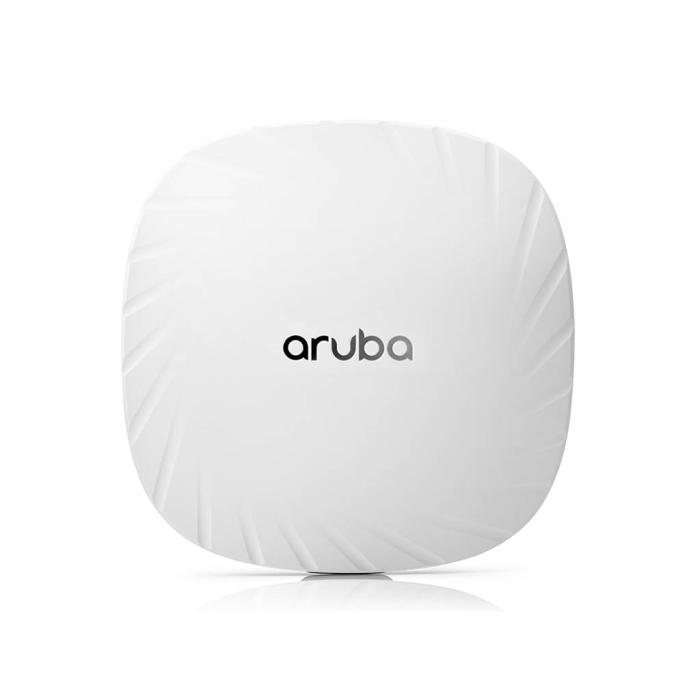

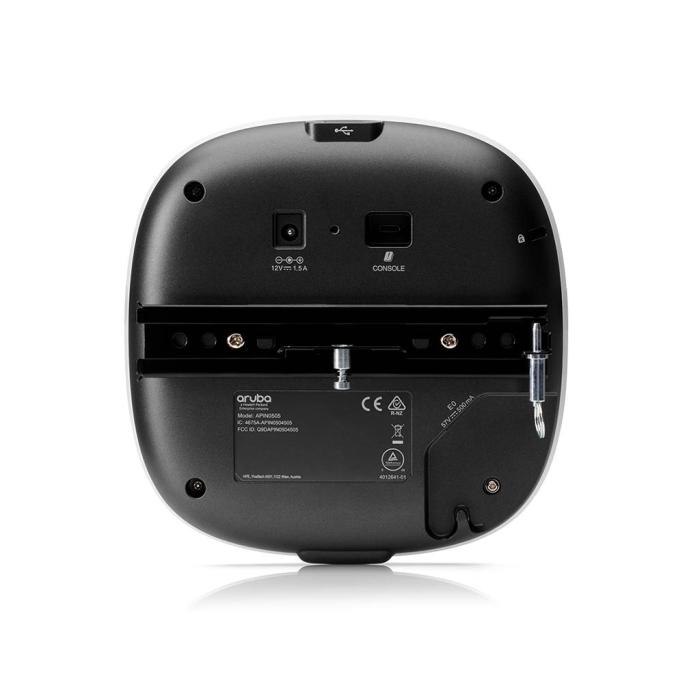

The Aruba AP-505 access point, in white and weighing 500 g, offers wireless connectivity in the 2.4 GHz and 5 GHz bands. It reaches a maximum data transfer speed of 574 Mbit/s in the 2.4 GHz band and 1200 Mbit/s in the 5 GHz band, giving a total of 1774 Mbit/s. It features multi-user MIMO along with DSSS, OFDM and OFDMA spread spectrum methods, and supports modulations such as 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK and QPSK. It complies with IEEE 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g and 802.11n network standards. It has an RJ-45 Ethernet LAN port with speeds of 10, 100 and 1000 Mbit/s, Auto MDI/MDI-X function and a USB 2.0 type A port. In terms of security, it supports WPA3, WPA and WPA2 algorithms. It is powered via Power over Ethernet (PoE) and has a maximum power consumption of 16.5 W. Its dimensions are 160 x 37 x 161 mm (width x height x depth).
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1774 Mbit/s
- Maximum data transfer rate (2.4 GHz): 574 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az
- Auto MDI/MDI-X: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- Spread spectrum method: DSSS,OFDM,OFDMA
- Modulation: 16-QAM,64-QAM,256-QAM,1024-QAM,BPSK,CCK,QPSK
Security
- Security algorithms: WPA3,WPA,WPA2
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
- USB 2.0 ports quantity: 1
- USB connector type: USB Type-A
Power
- Power over Ethernet (PoE): Yes
- Power consumption (max): 16.5 W
Design
- Placement: Ceiling, Wall
- Product colour: White
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Antenna
- Antenna type: Internal
- Antenna direction type: Omni-directional
- Antenna features: Integrated antenna
- Antennas quantity: 2
Operational conditions
- Operating relative humidity (H-H): 5 - 93%
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Storage relative humidity (H-H): 5 - 93%
Weight & dimensions
- Width: 160 mm
- Depth: 161 mm
- Height: 37 mm
- Weight: 500 g
