Description

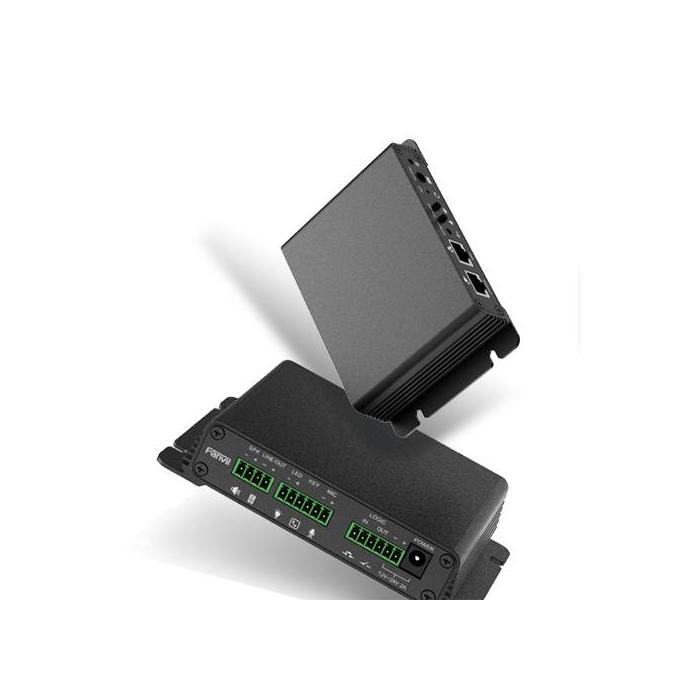

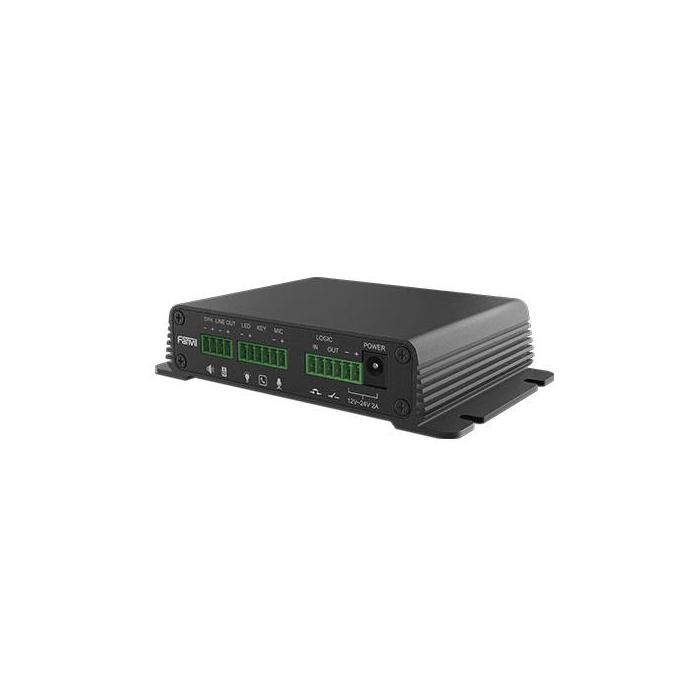

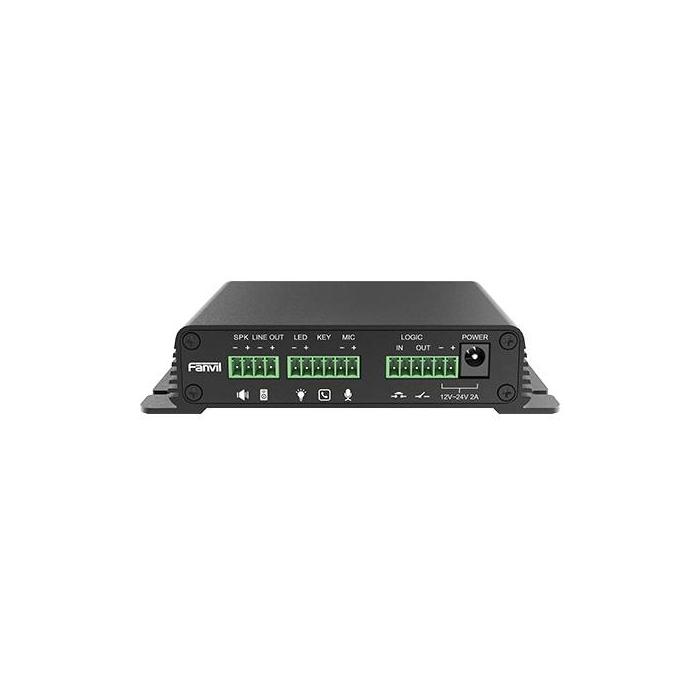

The Fanvil PA2S is a gateway and controller with a black aluminium housing, designed for desktop or wall mounting, featuring LED indicators for network and status. It connects via two RJ-45 Ethernet ports at 10/100 Mbit/s, with full duplex support, VLAN, and VPN through L2TP or OpenVPN, plus a control panel and reset button. It includes 3.5 mm headphone and microphone inputs, and is compatible with G.711a, G.711u, G.722, G.729A, G.729B, and OPUS codecs, managed via its web interface with syslog and multicast support. It offers remote administration and network capabilities that facilitate integration into professional communication environments.
Specifications
Design
- Enclosure material: Aluminum
- Mounting type: Desktop/Wall mounting
- LED indicators: Network, Status
- Product colour: Black
Features
- Voice codecs: G.711a, G.711u, G.722, G.729A, G.729B, OPUS
Performance
- Control display unit: Yes
Protocols
- Supported protocols: SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP IPv6 PPPoE L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
Network
- Ethernet LAN data rates: 10, 100 Mbit/s
- Full duplex: Yes
- VPN support: L2TP / OpenVPN
Security
- VLAN support: Yes
Ports & interfaces
- Headphone connectivity: 3.5 mm
- Microphone connectivity: 3.5 mm
- Ethernet LAN (RJ-45) ports: 2
- WAN connection: Ethernet (RJ-45)
Management features
- Web-based management: Yes
- Reset button: Yes
- Syslog: Yes
- Multicast support: Yes
Power
- Power over Ethernet (PoE): Yes
Weight & dimensions
- Width: 113 mm
- Depth: 28 mm
- Height: 83 mm
Packaging data
- Package width: 147 mm
- Package depth: 58 mm
- Package height: 114 mm
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -30 - 60 °C
- Operating relative humidity (H-H): 10 - 95%
