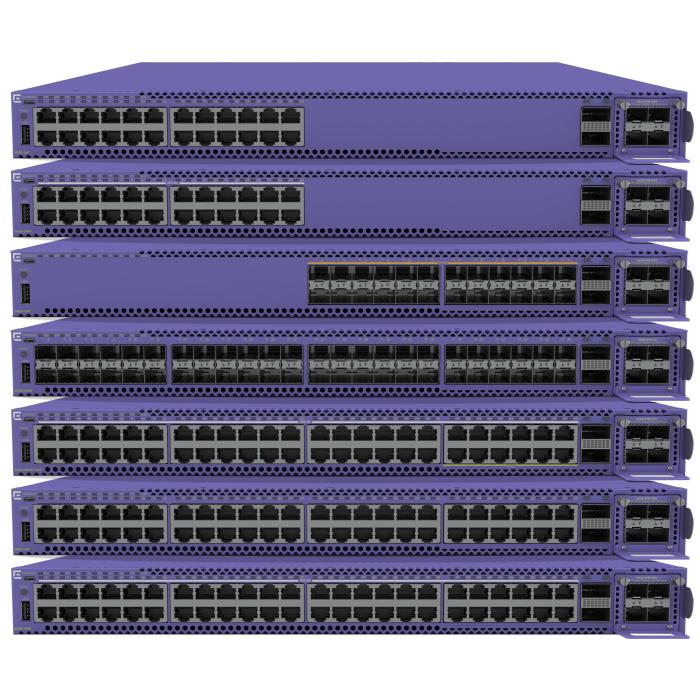

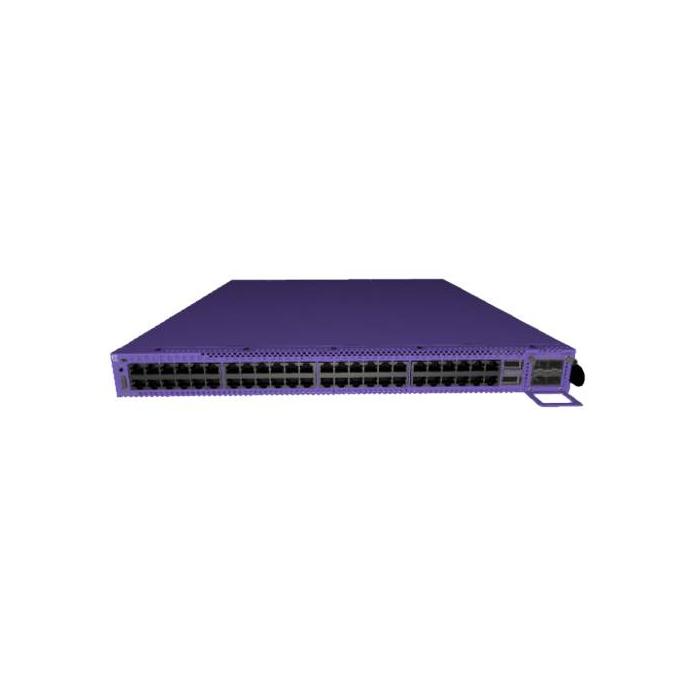

Extreme networks 5520 Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Purple

Not avaliable

Amount

Brand: EXTREME NETWORKS

SKU: 110877 PRC: 352321 EAN: 644728046980 PN: 5520-48t

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
Console port: RJ-45/Micro-USB
QSFP28 ports quantity: 2
USB 2.0 ports quantity: 2

Network

Networking standards: IEEE 802.3bm, IEEE 802.3ab, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba
10G support: No
Copper ethernet cabling technology: 1000BASE-T
Full duplex: Yes
Half duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-sensing: Yes

Data transmission

Switching capacity: 696 Gbit/s
Forwarding rate: 517.8 Mpps

Security

Access Control List (ACL): Yes

Multicast features

Multicast support: Yes

Protocols

Supported network protocols: IPv4, IPv6

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Purple
Number of fans: 3 fan(s)

Performance

Noise level: 39 dB

Power

Power supply included: Yes
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 47/63 Hz
Power consumption (typical): 60 W
Power consumption (max): 171 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 205 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 442 mm
Height: 44 mm
Weight: 5.76 kg

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: REACH, RoHS, WEEE
Certification: EN/ETSI 300 019-2-1 v2.1.2, UL 60950-1, UL/CuL 62368-1, FCC 21CFR 1040.10, CDRH, CAN/CSA 22.2 No. 60950-1, EN 60950-1, EN 62368-

Logistics data

Harmonized System (HS) code: 85176990
