Name: Extreme networks 5520-24X network switch Managed L2/L3 Purple
Brand: EXTREME NETWORKS
SKU: 397622
Price: 14545 EUR
Availability: OutOfStock

More info

Brand: EXTREME NETWORKS

14,545,00 €

Stock available: 0 units.

Unavailable

SKU: 114208 PRC: 397622 EAN: 644728047024 PN: 5520-24x

Description

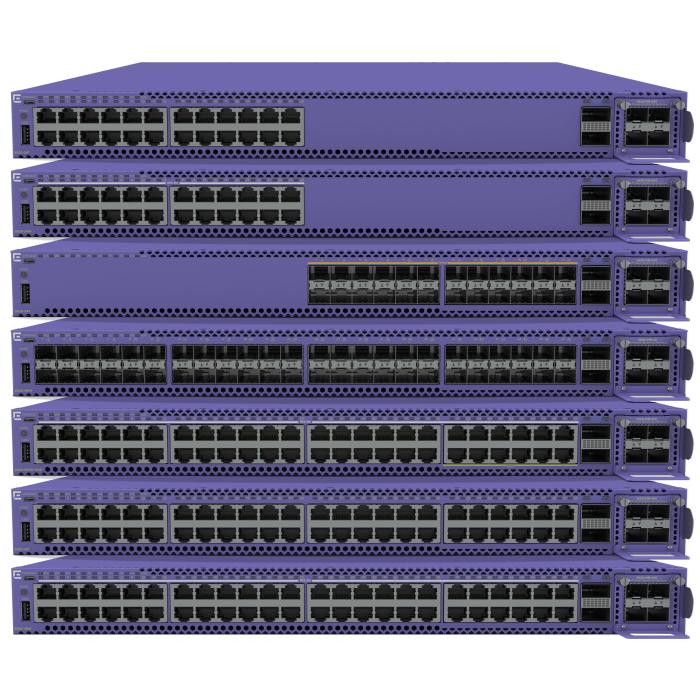

The Extreme Networks 5520-24X switch in purple is a managed L2/L3 model designed for network environments requiring advanced control. This device features 24 SFP+ slots and 2 QSFP28 ports, offering a switching capacity of 1080 Gbit/s and a forwarding rate of 803.5 Mpps. Its cloud management is complemented by support for CLI, ARP inspection and quality of service (QoS), along with configuration of up to 4094 VLANs. It includes two USB 2.0 ports and an RJ-45/Micro-USB console port for local management. The unit does not have basic RJ-45 Ethernet ports, as it is oriented towards optical connections, and supports 1000BASE-T copper cabling technology only on optional external modules.

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Cloud-managed: Yes
ARP inspection: Yes
Configuring Location Settings (CLI): Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
SFP+ module slots quantity: 24
Console port: RJ-45/Micro-USB
QSFP28 ports quantity: 2
USB 2.0 ports quantity: 2

Network

Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3bt, IEEE 802.3by, IE
10G support: No
Copper ethernet cabling technology: 1000BASE-T
Ethernet LAN data rates: 10,100,1000 Mbit/s
VLAN support: Yes
Number of VLANs: 4094

Data transmission

Switching capacity: 1080 Gbit/s
Forwarding rate: 803.5 Mpps

Security

Access Control List (ACL): Yes
Access Control List (ACL) egress: 1024
Access Control List (ACL) ingress: 9216

Multicast features

Multicast support: Yes

Protocols

Supported network protocols: IPv4, IPv6

Design

Rack mounting: Yes
Stackable: Yes
Product colour: Purple

Performance

Noise level: 40.6 dB

Power

Power source: AC
Power supply included: Yes
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 47/63 Hz
Power consumption (max): 171 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 585 BTU/h

Weight & dimensions

Width: 441 mm
Depth: 442 mm
Height: 44 mm
Weight: 6.25 kg

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: REACH, RoHS, WEEE
Certification: CISPR 32, Class A (International Emissions) AS/NZS CISPR32 CISPR 24 Class A (International Immunity) IEC 61000-4-2/EN 61000-4-2
