Extreme networks 5420F-48T-4XE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Blue

Return

Few units

Product 1 image

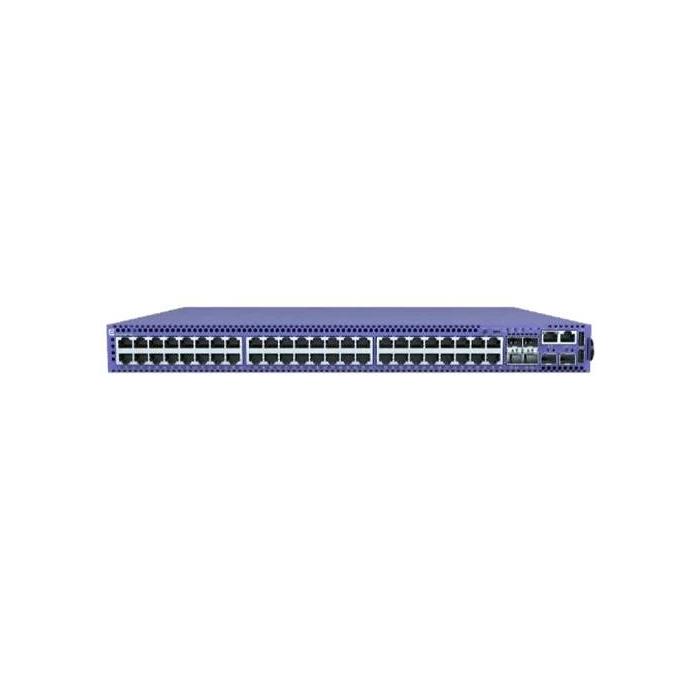

Extreme networks 5420F-48T-4XE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Blue

$5,396.94

$5,396.94 without VAT

Amount

Brand: EXTREME NETWORKS

SKU: 116582 PRC: 468951 EAN: 644728051953 PN: 5420f-48t-4xe

Description

Specifications

Management features

Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 48
SFP module slots quantity: 2
SFP+ module slots quantity: 4
Number of management ports: 1 pc(s)
Console port: RJ-45/Micro-USB
USB 2.0 ports quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3by, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
10G support: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex: Yes
IP routing: Yes
Half duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Auto-sensing: Yes
VLAN support: Yes
Number of VLANs: 4094

Data transmission

Switching capacity: 256 Gbit/s
Forwarding rate: 190.5 Mpps
MAC address table: 32000 entries
Number of queues: 8
Number of IP interfaces: 1533

Security

Access Control List (ACL): Yes
Security algorithms: 128-bit AES, 256-bit AES

Multicast features

IPv4 multicast entries: 6000

Protocols

Routing protocols: OSPF

Design

Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: Blue
LED indicators: Yes

Performance

Physical stacking (units): 2
Noise level: 35.3 dB

Power

Power source: AC
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 47/63 Hz
Power consumption (max): 75 W

Power over Ethernet (PoE)

Power over Ethernet (PoE): No

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 255 BTU/h

Weight & dimensions

Width: 442 mm
Depth: 287 mm
Height: 43.2 mm
Weight: 4.64 kg

Packaging content

Rack mount kit: Yes

Sustainability

Sustainability compliance: Yes

Certificates

Compliance certificates: BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), KCC, REACH, RoHS, WEEE
